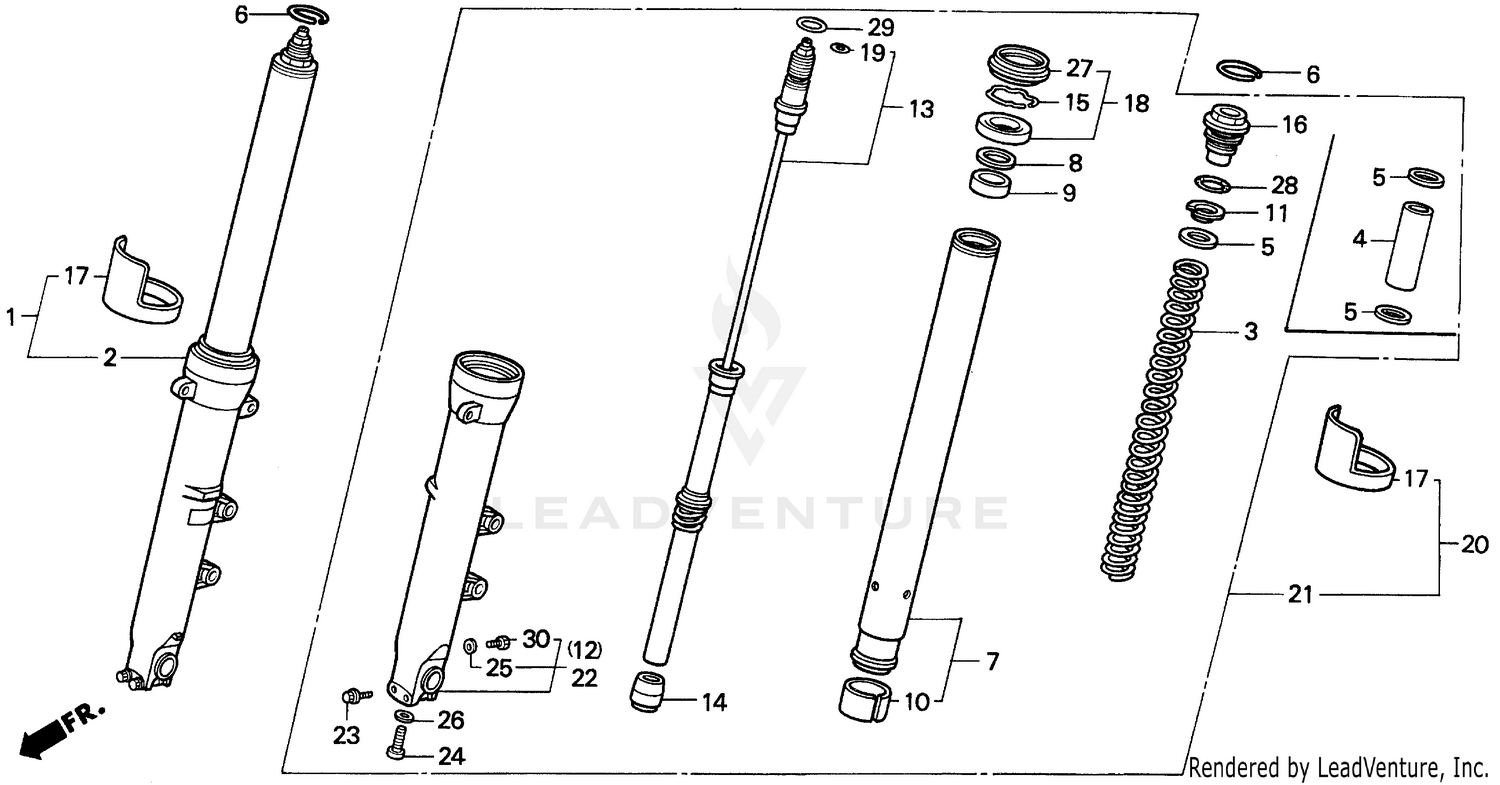

F3 Front Fork 95-96 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)
51400-MV9-931
|
$807.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK
51401-MV9-931
|
$78.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, SPRING (SHOWA)
51403-KF0-003
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, STOPPER
51405-MB4-003
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, FR. FORK
51410-MV9-931
|
$312.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, BACK-UP (SHOWA)
51412-MB4-003
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, GUIDE (SHOWA)
51414-MN5-003
Superseded by 51414-KCR-003
|
$16.26 | ||
|
Unavailable |
|||
|
#10
BUSH, SLIDER (SHOWA)
51415-MM8-003
Superseded by 51415-KCR-003
|
$14.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT, SPRING
51415-MS2-003
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, R. (LOWER)
51420-MV9-931
|
$312.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, FR.
51430-MV9-931
|
$324.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIECE, OIL LOCK
51432-MS2-003
|
$34.86 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, OIL SEAL STOPPER (SHOWA)
51447-KA4-711
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FR. FORK
51454-KV3-781
|
$64.17 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL SET, FR. FORK
51490-MN8-305
|
$40.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
LABEL
51496-MR7-003
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)
51500-MV9-931
|
$807.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
CASE, L. (LOWER)
51520-MV9-931
|
$312.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X45)
90109-MR7-000
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SOCKET (8X27)
90116-383-721
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
LABEL
51496-MR7-003
|
$3.56 | ||
|
Unavailable |
|||
|
#25
GASKET, FR. FORK DRAIN PETCOCK
90543-273-000
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL
91254-MM8-003
|
$20.72 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (33.2X2.4)
91356-KF0-003
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
