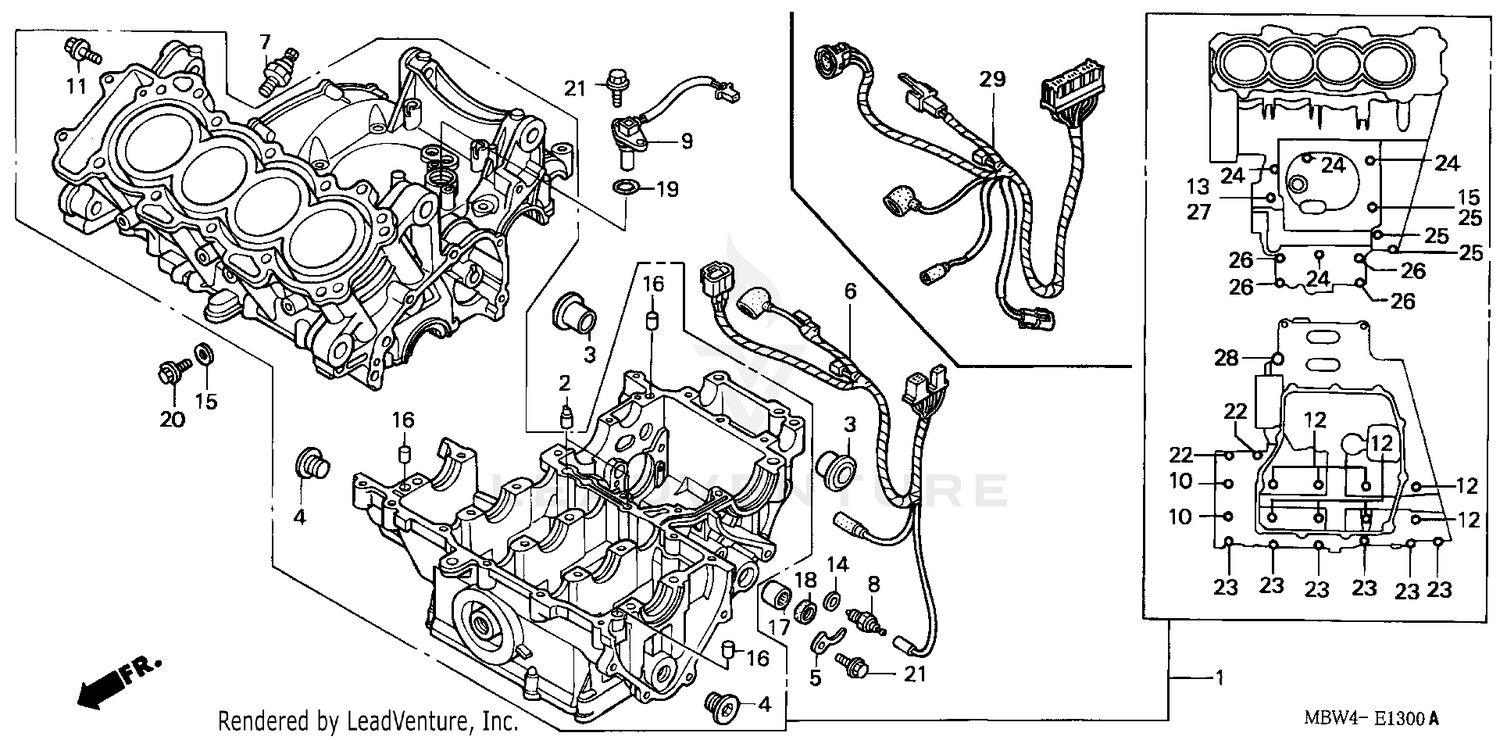

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MBW-J20
|
$2,115.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
ORIFICE (1.2MM)
11104-MW0-000
|
$21.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, ENGINE HANGER
11105-MBW-300
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SEALING (20MM)
12208-PR3-000
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, SPINDLE
24612-MAL-600
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$49.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., NEUTRAL (TOYO)
35600-KE8-003
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., SPEEDOMETER
37700-MBW-J21
|
$140.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, UBS (8X100)
90004-MAL-A00
|
$8.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SEALING (8MM)
90019-MAT-000
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UBS (8X75)
90041-MAL-A00
|
$8.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING (8MM)
90442-028-000
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, NEUTRAL
90443-MJ6-000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (10X16)
90701-MV9-670
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, NEEDLE (14X22X16)
91106-KM1-013
|
$20.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (18.1X3.6)
91302-MAL-601
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (7X40)
90017-MAT-000
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X50)
95701-06050-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X65)
95701-06065-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X50)
95701-08050-00
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X65)
95701-08065-00
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (10X75)
95701-10075-00
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#29
SUB-WIRE A
32101-MBW-J20
|
$45.07 | ||
|
Available to order. Add to View Price |
|||
