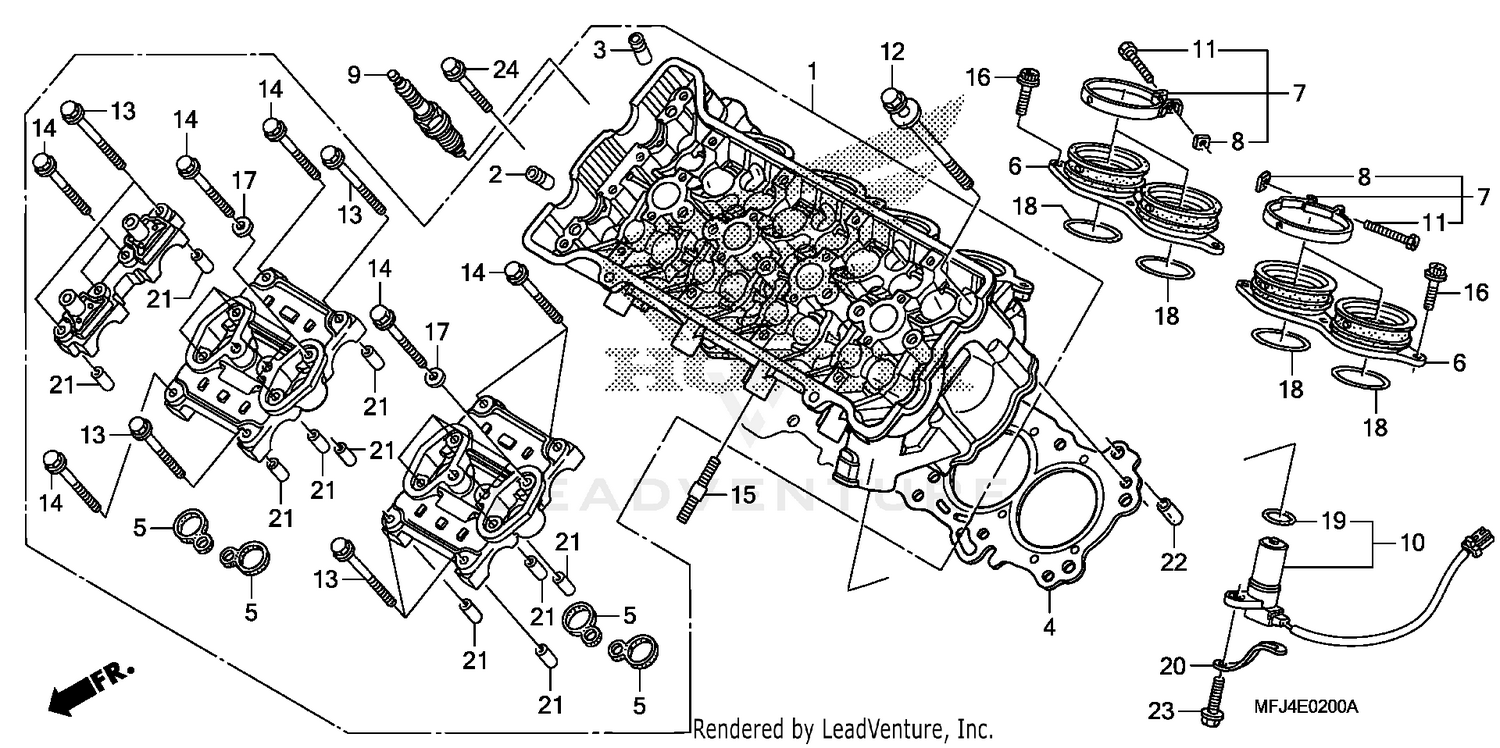

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-MFJ-A40
|
$1,432.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (O.S.) (EXHAUST SIDE)
12204-MBW-305
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE (OVER SIZE)
12204-MFJ-305
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-MFJ-D01
|
$83.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, PLUG HOLE
12395-MBW-003
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR, THROTTLE BODY
16210-MFJ-D00
|
$68.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16217-MFJ-D00
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SQUARE (5MM)
16222-MV4-300
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (VUH27D) (DENSO)
31922-MBW-E12
|
$38.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (IMR9E-9HES) (NGK)
31912-MFL-003
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
PULSER ASSY., CAM
36140-MFJ-D01
|
$75.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, RECESSED (5X28)
90005-MCJ-000
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (9X90)
90007-MBW-000
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X45.5)
90017-MA6-000
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X39.5)
90019-MA6-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X24)
90035-MM5-000
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X16) (NSHF)
90004-GHB-630
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (40X2.5)
91301-MFJ-D00
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (16X2.1) (NOK)
91309-PX4-003
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP (2X60)
91410-679-000
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL (8X20)
94301-08200
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL (10X16)
94301-10160
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X18)
95701-06018-07
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X35)
96001-06035-00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
