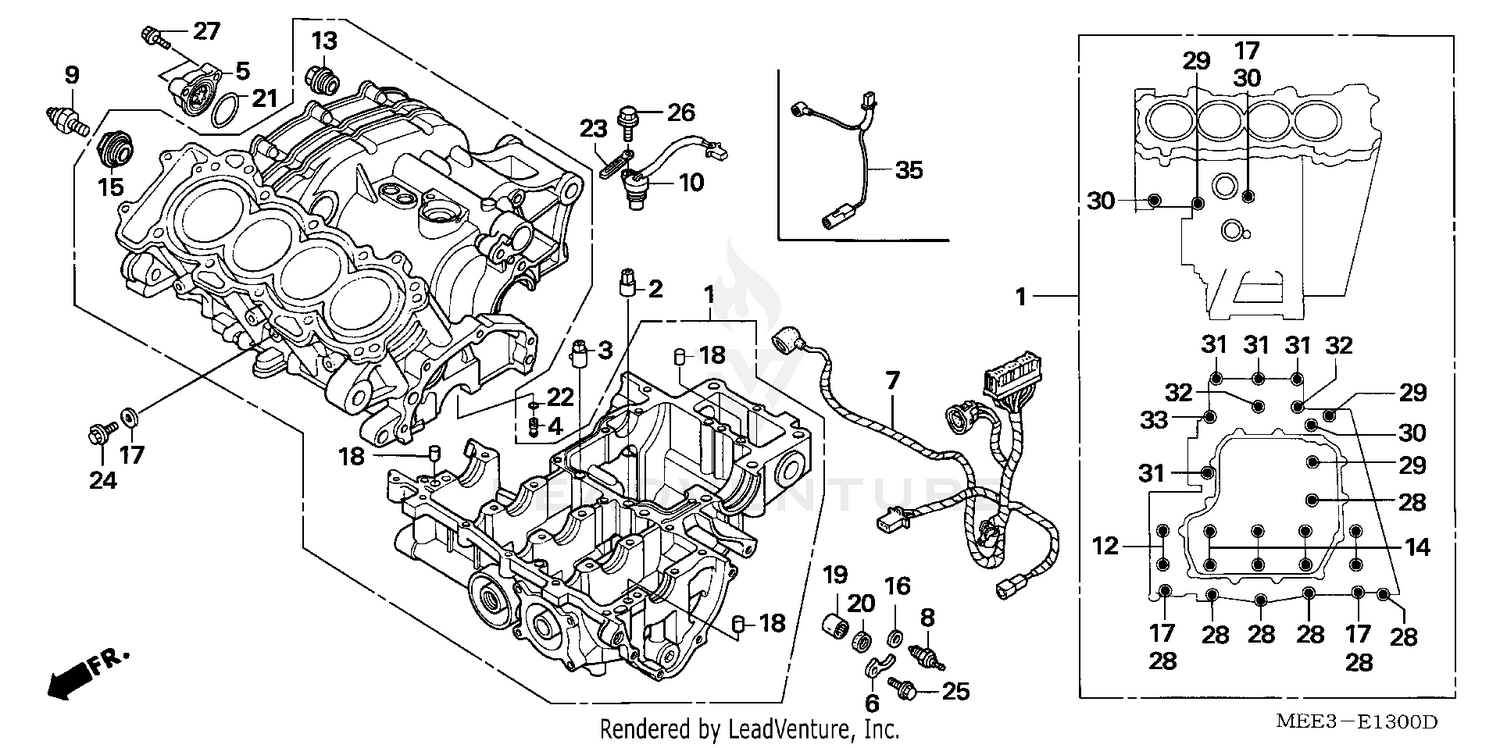

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MEE-000
|
$1,797.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
ORIFICE (1.2MM)
11104-MEE-000
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
ORIFICE B (1.2MM)
11106-MEE-010
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
ORIFICE (#90)
11146-MCJ-750
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
FINDER, OIL LEVEL
11360-MEE-000
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, SPINDLE
24612-MAL-600
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-WIRE A
32101-MEE-000
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
SWITCH ASSY., NEUTRAL (TOYO)
35600-KE8-003
|
$21.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$48.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., SPEED
37700-MEE-003
|
$88.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UBS (8X98)
90004-MEE-003
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (10MM)
90005-MAZ-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, UBS (8X73)
90005-MEE-003
Superseded by 90005-MFJ-D01
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SEALING (20MM)
90048-MAL-600
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, NEUTRAL
90443-MJ6-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL (10X16)
90701-MV9-670
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, NEEDLE (14X22X16)
91106-KM1-013
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (32X1.7)
91301-MEE-003
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (3.2X1.1)
91305-MCJ-751
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP (2X60)
91410-679-000
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.13 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (6X60)
95701-06060-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (8X60)
95701-08060-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X75)
95701-08075-00
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (10X75)
95701-10075-00
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
