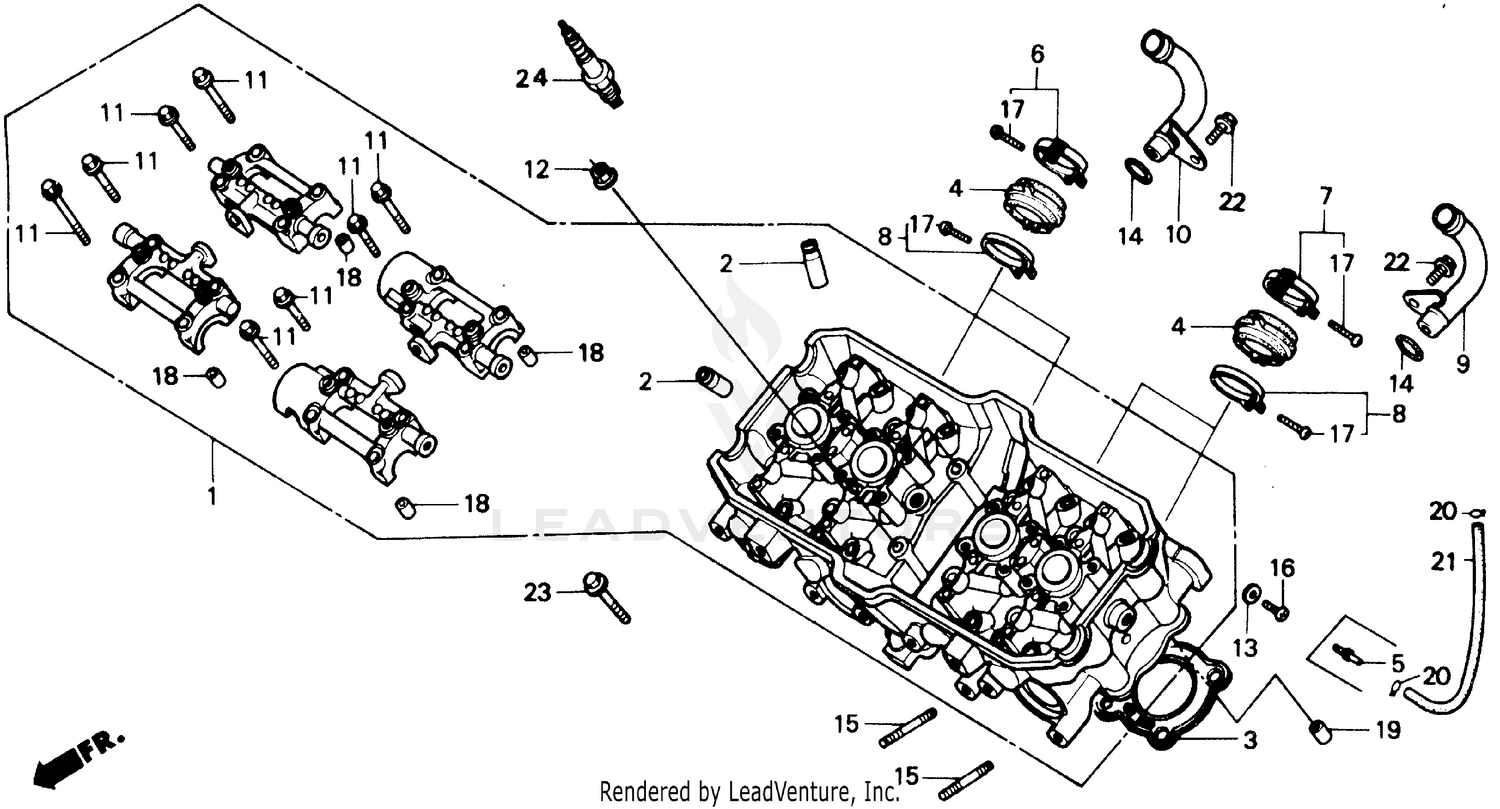

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY. (NOT AVAILABLE)
12010-MN4-020
|
$1,576.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
12204-KE7-305
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD (TEIKOKU) (NOT AVAILABLE)
12251-MN4-003
|
$73.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
INSULATOR, CARBURETOR (NOT AVAILABLE)
16211-MN4-000
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND A, INSULATOR (NOT AVAILABLE)
16217-MN4-000
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND B, INSULATOR (NOT AVAILABLE)
16218-MN4-000
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND C, INSULATOR
16219-MN4-000
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, L. WATER (NOT AVAILABLE)
19065-MN4-000
|
$30.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, R. WATER (NOT AVAILABLE)
19067-MN4-000
|
$30.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X37)
90016-KT7-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (9MM) (SATO RASHI) (SOURCE: VINTAGE PARTS INC.)
90232-MN4-003
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING (5MM)
90452-323-000
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (15X2.5)
91301-MY9-003
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (15X2.5)
91302-028-000
Superseded by 91301-MY9-003
|
$2.58 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (6X22)
92900-06022-0E
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (5X8)
93500-05008-0A
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (5X32)
93500-05032-0G
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL (8X14)
94301-08140
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (10X16)
94301-10160
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
|
$2.80 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (DPR9EA-9) (NGK)
98069-59916
|
$2.91 | ||
|
Unavailable |
|||
|
#24
SPARK PLUG (X27EPR-U9) (DENSO)
98069-59926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
