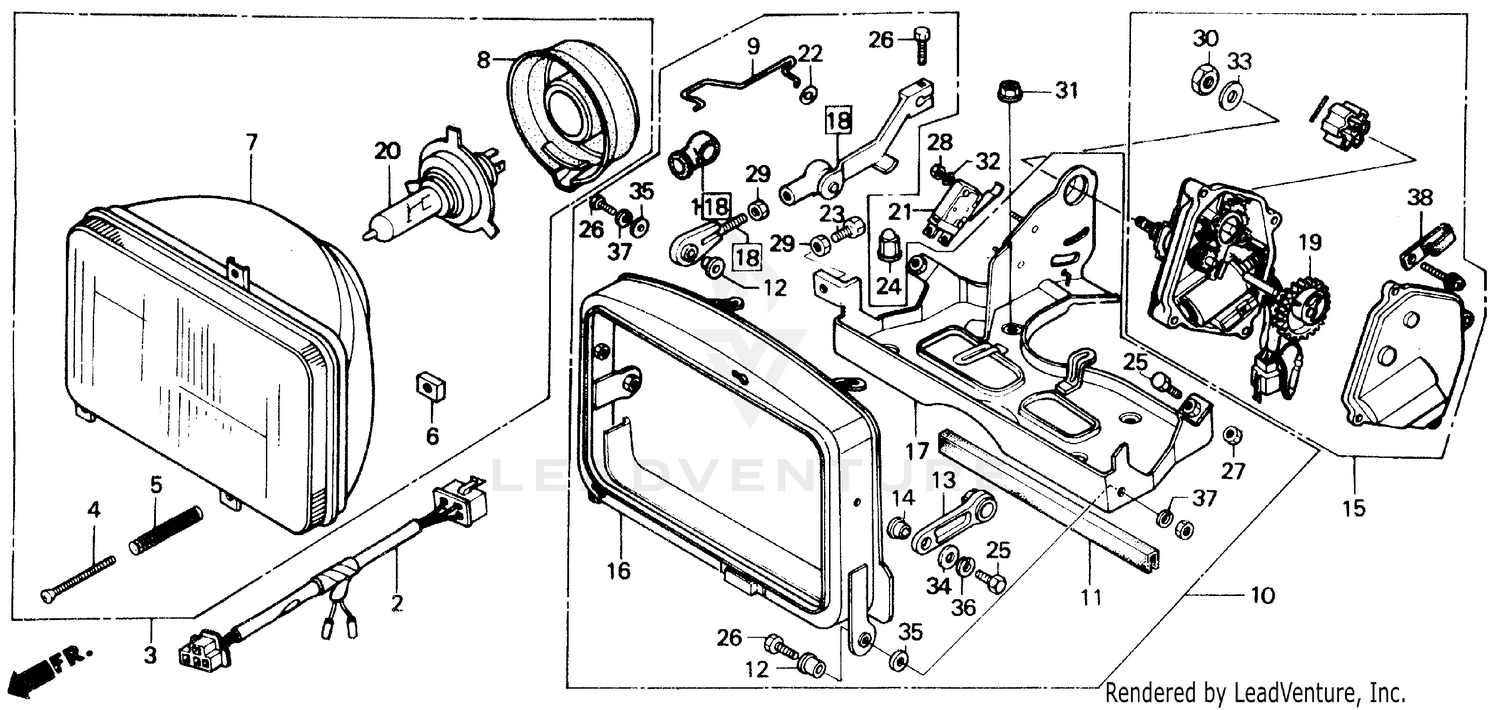

Ch150d Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, DUST
24724-422-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB-WIRE HARNESS A
32101-KJ9-010
|
$16.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
HEADLIGHT ASSY. (NOT AVAILABLE)
33100-KJ9-670
|
$86.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BEAM ADJUSTING (4MM)
33103-KJ9-003
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, BEAM ADJUSTING
33107-KJ9-003
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, BEAM ADJ.
33117-KJ9-003
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
HEADLIGHT UNIT
33120-KJ9-670
|
$56.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HEADLIGHT SOCKET
33140-KN7-670
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, LEVER LOCK
33195-KJ9-670
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
LINK ASSY., HEADLIGHT
33200-KJ9-750
|
$160.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
MOLDING, WIND
33201-KN7-770
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, LINK JOINT
33202-KJ9-000
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, LINK
33208-KN7-770
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, COVER JOINT
33209-KJ9-000
|
$4.86 | ||
|
Available to order. Add to View Price |
|||
|
#15
MOTOR ASSY., HEADLIGHT LINK (NOT AVAILABLE)
33210-KN7-770
|
$168.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, HEADLIGHT
33215-KJ9-000
|
$110.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, HEADLIGHT
33215-KN7-770
|
$91.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
BASE
33216-KJ9-000
|
$63.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
BASE
33216-KN7-770
|
$52.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
LINK ASSY.
33220-KJ9-000
|
$38.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, FINAL
33228-KN7-770
|
$14.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-601
Superseded by 34901-MC7-602
|
$42.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-601AH
Superseded by 34901-MC7-602
|
$42.45 | ||
|
Unavailable |
|||
|
#21
SWITCH ASSY., LIMIT
35900-KJ9-671
|
$37.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
LABEL, YELLOW MARK
87521-KJ9-670
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, ADJUSTING (6X16)
90159-KJ9-000
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CAP (6MM)
90304-438-000
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (5X16)
92000-05016-0G
Superseded by 92101-05016-0G
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (5X16)
92000-05016-1G
Superseded by 92101-05016-0G
|
$0.35 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (5X16)
92101-05016-0G
|
$0.35 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. (6X16)
92000-06016-0G
Superseded by 92101-06016-0G
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. (6X16)
92101-06016-0G
|
$1.37 | ||
|
Unavailable |
|||
|
#27
NUT, HEX. (5MM)
94001-05070-0S
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEX. (3MM)
94002-03000-0S
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, HEX. (6MM)
94002-06000-0S
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLAIN (3MM)
94101-03800
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (10MM)
94102-10800
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (5MM)
94103-05700
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLAIN (6MM)
94103-06700
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING (5MM)
94111-05700
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPRING (6MM)
94111-06700
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP (4X70)
94591-47000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
