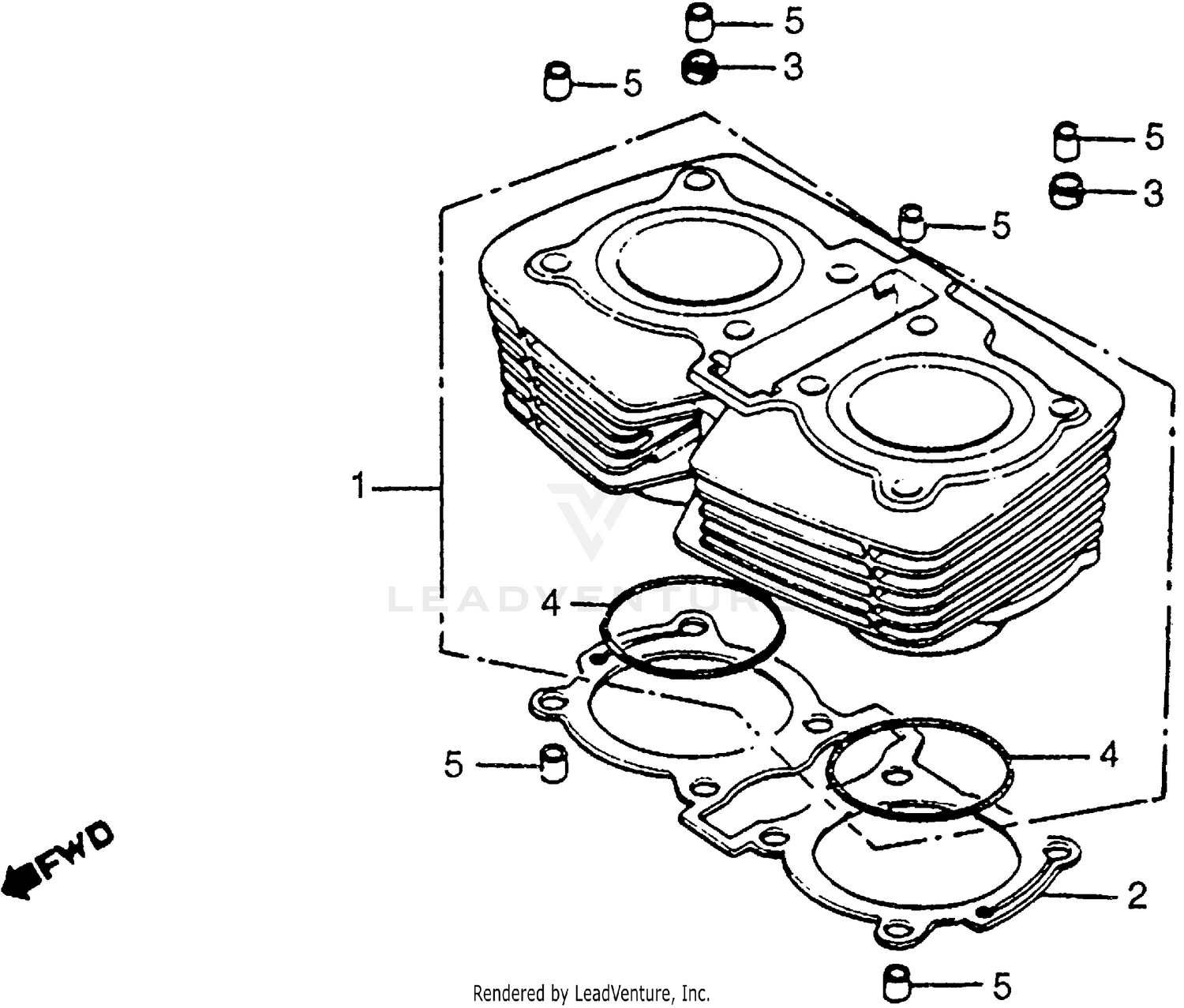

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (NOT AVAILABLE)
12100-413-030
|
$929.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-413-010
Superseded by 12191-413-307
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-413-020
Superseded by 12191-413-307
|
$15.17 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-413-307
|
$15.17 | ||
|
Unavailable |
|||
|
#3
GASKET, CYLINDER HEAD
12909-413-000
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING, CYLINDER (75.8X2)
91302-283-003
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN A, DOWEL (14X20)
94301-14200
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
