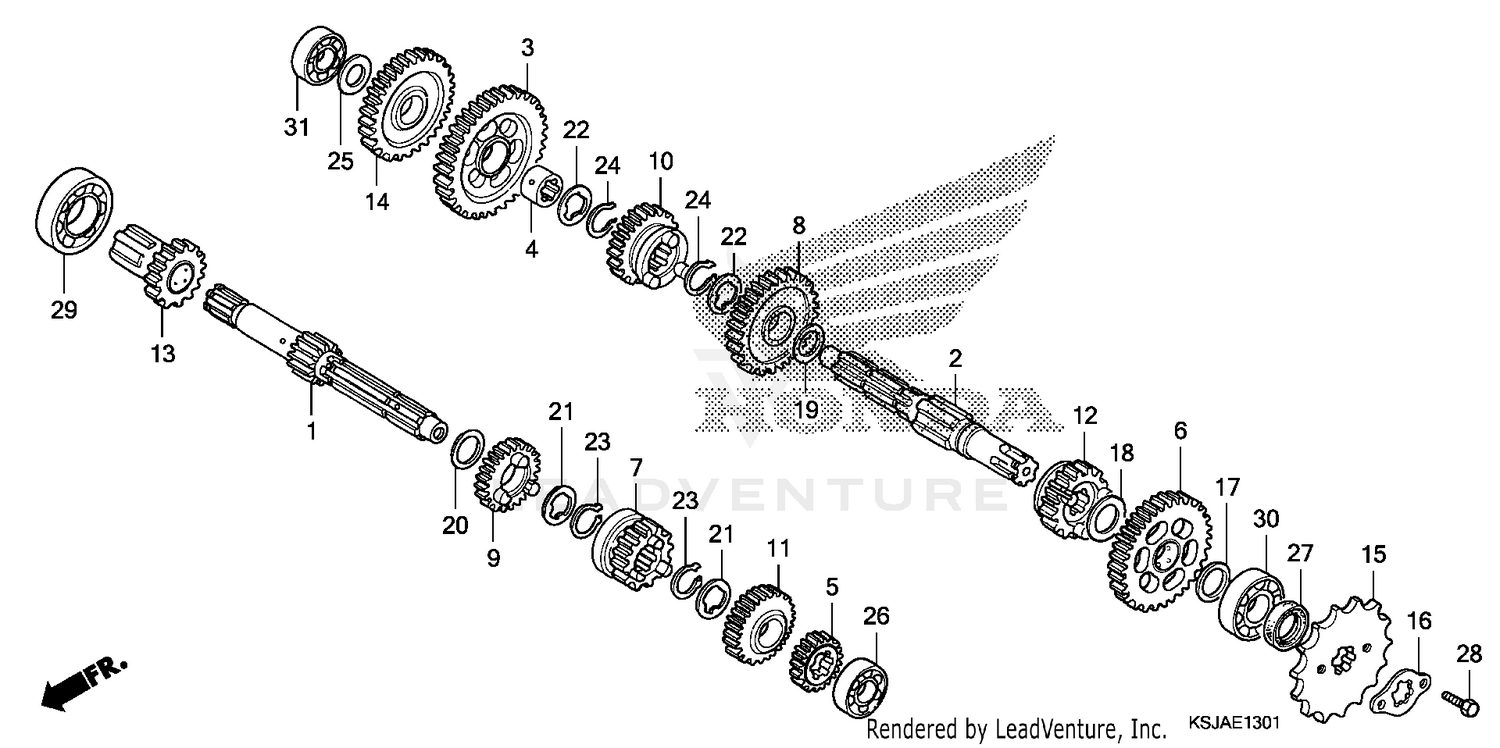

Transmission (crf100f) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (12T)
23211-KN4-A60
|
$101.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-436-000
|
$137.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT LOW (37T)
23426-436-000
|
$106.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, COUNTERSHAFT LOW GEAR
23427-436-000
|
$24.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23441-115-010
|
$47.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (32T)
23450-436-000
|
$114.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, MAINSHAFT THIRD (20T)
23461-115-010
|
$81.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (28T)
23471-436-000
|
$70.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, MAINSHAFT FOURTH (23T)
23481-115-000
|
$61.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (26T)
23491-436-000
|
$126.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT TOP (26T)
23501-436-010
|
$68.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT TOP (24T)
23511-115-010
|
$76.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, PRIMARY STARTER (19T)
23520-436-000
|
$119.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, IDLE STARTER (29T)
23531-436-000
|
$79.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVE (14T)
23800-168-000
|
$39.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, DRIVE SPROCKET FIXING
23802-040-000
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (19.5MM)
90451-436-000
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (18MM)
90452-436-000
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER B, THRUST (17MM)
90453-115-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPLINE (17MM)
90461-115-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPLINE (18MM)
90461-436-000
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP, OUTER (17MM)
90601-001-000
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (18MM)
90601-030-000
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (12MM)
90608-072-000
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6201U)
91002-436-004
Superseded by 96140-62010-00
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6201U)
96140-62010-00
|
$11.17 | ||
|
Unavailable |
|||
|
#27
OIL SEAL (17X29X5) (NOK)
91203-035-005
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (6005)
96100-60050-00
|
$13.03 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (6203)
96100-62030-00
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, RADIAL BALL (6201U)
96140-62010-00
|
$11.17 | ||
|
Unavailable |
|||
