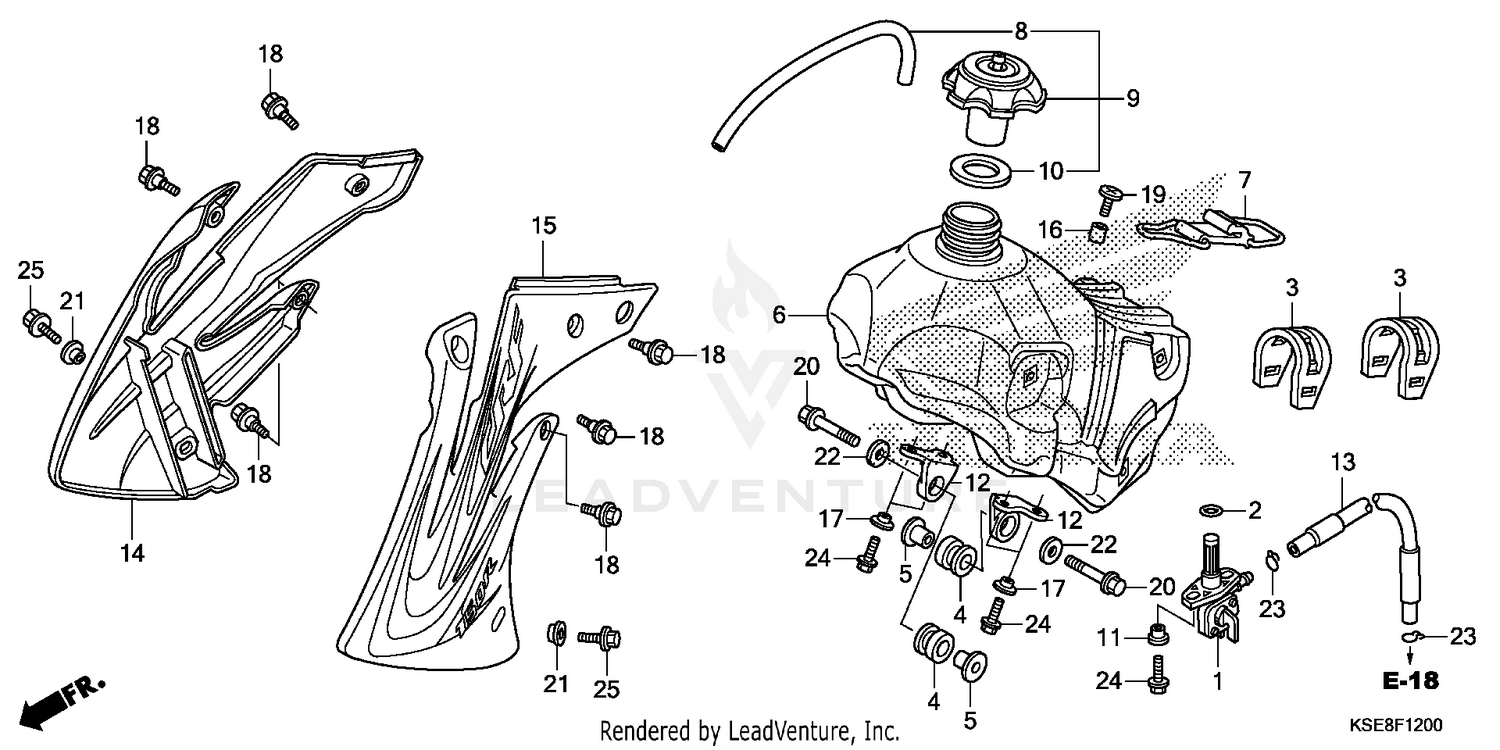

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-KSE-003
|
$31.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING (11.8X3.55)
16997-467-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, FUEL TANK SETTING
17506-KZ3-860
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING
17508-GBF-830
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, TANK SET
17509-KSE-000
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK, FUEL
17510-KSE-000
|
$452.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, RR. TANK
17516-KT0-670
|
$34.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP ASSY., FUEL TANK
17620-ML3-600
|
$44.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, FUEL TANK CAP
17624-KA4-000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, FUEL TANK SETTING
17626-467-000
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FR. FUEL TANK
17634-KZ3-860
|
$16.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, FUEL
17681-KSE-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHROUD SET, R. RADIATOR (TYPE1) (WL)
19071-KSE-N00ZA
|
$141.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHROUD SET, L. RADIATOR (TYPE1) (WL)
19072-KSE-N00ZA
|
$141.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, BATTERY (LOWER)
83607-356-000
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
84706-415-000
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6MM)
90113-GF0-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, COWL SETTING (LOWER)
90124-MM9-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X40)
90137-KA3-830
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR A
90501-KZ4-J20
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, FENDER MOUNTING
90506-430-000
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, TUBE (B12)
95002-02120
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
