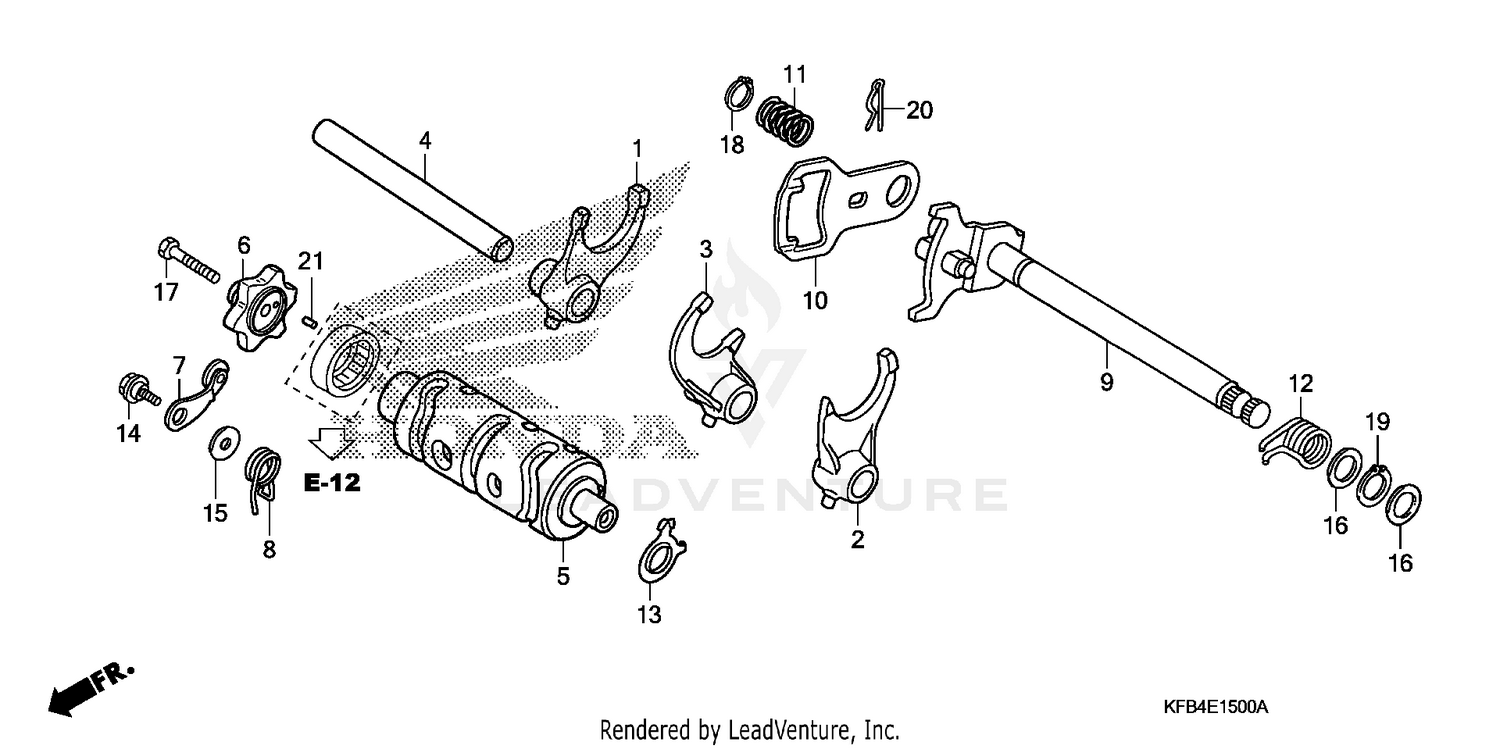

Gearshift Drum + Gearshift Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-KW1-900
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, L. GEARSHIFT
24221-427-010
|
$80.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-KFB-000
|
$53.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-KCS-650
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, GEARSHIFT
24301-KFB-600
|
$83.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAM, GEARSHIFT
24411-446-650
|
$52.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, GEARSHIFT DRUM
24430-KCJ-710
|
$13.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHIFT DRUM STOPPER
24435-KPK-900
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPINDLE, GEARSHIFT
24610-KT0-000
|
$65.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, GEARSHIFT
24621-446-650
|
$14.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, GEARSHIFT PLATE
24631-107-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, GEARSHIFT RETURN
24651-KPK-900
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROTOR, NEUTRAL SWITCH
35753-KG2-951
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
90023-KW1-900
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (6MM)
90408-KW1-900
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST (14MM)
90451-001-000
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X25)
93101-06025-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, LOCK (10MM)
94251-10000
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROLLER (4X10)
96220-40100
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
