2010 Honda CRF 450R Fuel Tank (1) OEM Parts

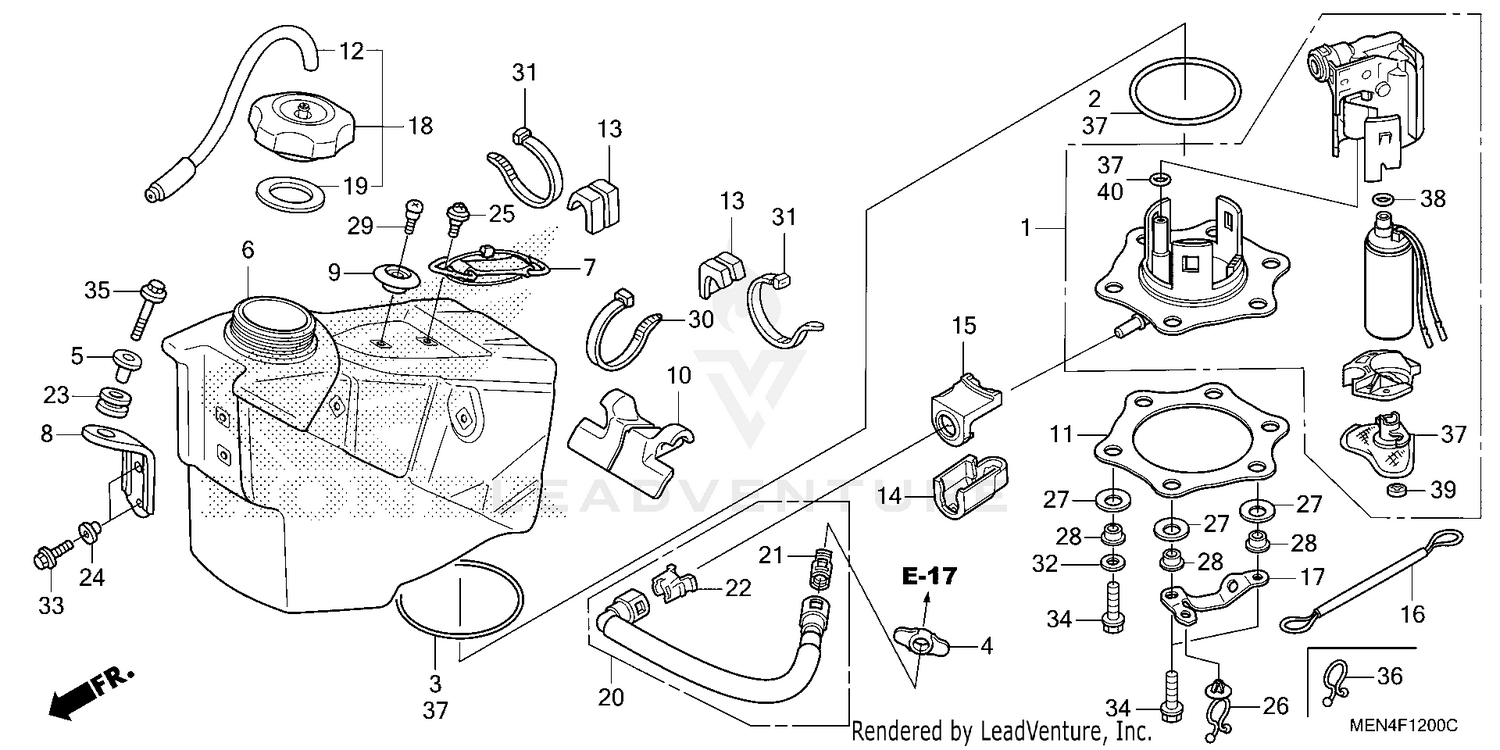

Fuel Tank (1) Diagram

Item	MSRP	Qty
#1 PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) 16700-MEN-A31 Superseded by 16700-MEN-A52	$422.30
Available to order. Add to View Price
#1 PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) 16700-MEN-A32 Superseded by 16700-MEN-A52	$422.30
Unavailable
#1 PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE) 16700-MEN-A52	$422.30
Unavailable
#2 O-RING (3.7X73.9) 16711-MEN-A30	$14.12
Available to order. Add to View Price
#3 O-RING (2.4X88.4) 16712-MEN-A30	$12.83
Available to order. Add to View Price
#4 RUBBER, FUEL JOINT 16719-HN8-A61	$2.55
Available to order. Add to View Price
#5 COLLAR, TANK SETTING 17509-KZ3-B00	$10.45
Available to order. Add to View Price
#6 TANK, FUEL 17510-MEN-A30 Superseded by 17510-MEN-A50	$687.52
Available to order. Add to View Price
#6 TANK, FUEL 17510-MEN-A50	$687.52
Unavailable
#7 BAND, RR. TANK 17516-KZ3-B00	$18.90
Available to order. Add to View Price
#8 STAY, FR. FUEL TANK 17516-MEN-A30	$8.24
Available to order. Add to View Price
#9 COLLAR, FR. SEAT 17518-KZ4-710	$6.96
Available to order. Add to View Price
#10 RUBBER, FUEL TANK MOUNTING 17518-MEN-A30	$12.97
Available to order. Add to View Price
#11 PLATE, FUEL PUMP 17519-MEN-A30	$20.21
Available to order. Add to View Price
#12 TUBE, FUEL CAP BREATHER 17521-MEN-A30	$6.63
Available to order. Add to View Price
#13 RUBBER, TANK SIDE MOUNTING 17522-MEN-730	$7.92
Available to order. Add to View Price
#14 COVER, FUEL CONNECTOR 17575-MEN-A30	$7.58
Available to order. Add to View Price
#15 RUBBER, FUEL CONNECTOR 17576-MEN-A30	$4.91
Available to order. Add to View Price
#16 CABLE, FUEL TANK STOPPER 17577-MEN-A30	$8.43
Available to order. Add to View Price
#17 GUIDE, STOPPER CABLE 17578-MEN-A30	$9.21
Available to order. Add to View Price
#18 CAP ASSY., FUEL TANK 17620-MEN-A30	$38.61
Available to order. Add to View Price
#19 GASKET, FUEL CAP 17624-KT1-780 Superseded by 17624-KT1-781	$5.78
Available to order. Add to View Price
#20 HOSE ASSY., FUEL FEED 17630-MEN-A31	$84.89
Available to order. Add to View Price
#21 RETAINER (GREEN) (TOKAI) 17711-S0X-A31	$3.70
Available to order. Add to View Price
#22 RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312) 17711-S0X-931	$3.70
Available to order. Add to View Price
#23 RUBBER, MUFFLER 18334-ML3-680	$4.65
Available to order. Add to View Price
#24 COLLAR 84706-415-000	$2.57
Available to order. Add to View Price
#25 SCREW (5X12) 90105-MEN-730	$1.83
Available to order. Add to View Price
#27 WASHER, CONICAL SPRING FUEL PUMP 90502-MEN-A30	$2.92
Available to order. Add to View Price
#28 COLLAR, FUEL PUMP 90503-MEN-A31	$5.61
Available to order. Add to View Price
#29 SCREW, SPECIAL (5MM) 91422-MT8-770	$3.16
Available to order. Add to View Price
#30 TY-RAP, CABLE (240MM) 91560-MEN-A30	$2.14
Available to order. Add to View Price
#31 TY-RAP, CABLE 91560-MS8-600	$2.60
Available to order. Add to View Price
#32 WASHER, PLAIN (6MM) 94101-06000 Superseded by 94101-06800	$0.64
Available to order. Add to View Price
#32 WASHER, PLAIN (6MM) 94101-06080 Superseded by 94101-06800	$0.64
Unavailable
#32 WASHER, PLAIN (6MM) (USED ON TAILLIGHT) 94101-06800	$0.64
Unavailable
#33 BOLT, FLANGE (6X16) 96001-06016-00	$1.05
Available to order. Add to View Price
#34 BOLT, FLANGE (6X22) 96001-06022-00	$1.37
Available to order. Add to View Price
#35 BOLT, FLANGE (6X30) 96001-06030-00	$1.53
Available to order. Add to View Price
#36 CLIP, BREATHER TUBE PROTECTOR 15712-PD1-811	$10.76
Available to order. Add to View Price
#37 FILTER KIT, FUEL 06160-MEN-A30 Superseded by 06160-MEN-A31	$54.63
Available to order. Add to View Price
#37 FILTER KIT, FUEL 06160-MEN-A31	$54.63
Unavailable
#38 O-RING (8.6X1.9) 16702-KPC-D50	$0.62
Available to order. Add to View Price
#39 CLIP, FUEL PUMP 16920-SE0-931	$3.77
Available to order. Add to View Price
#40 O-RING (10X2.4) 16702-KTR-940	$6.35
Available to order. Add to View Price
