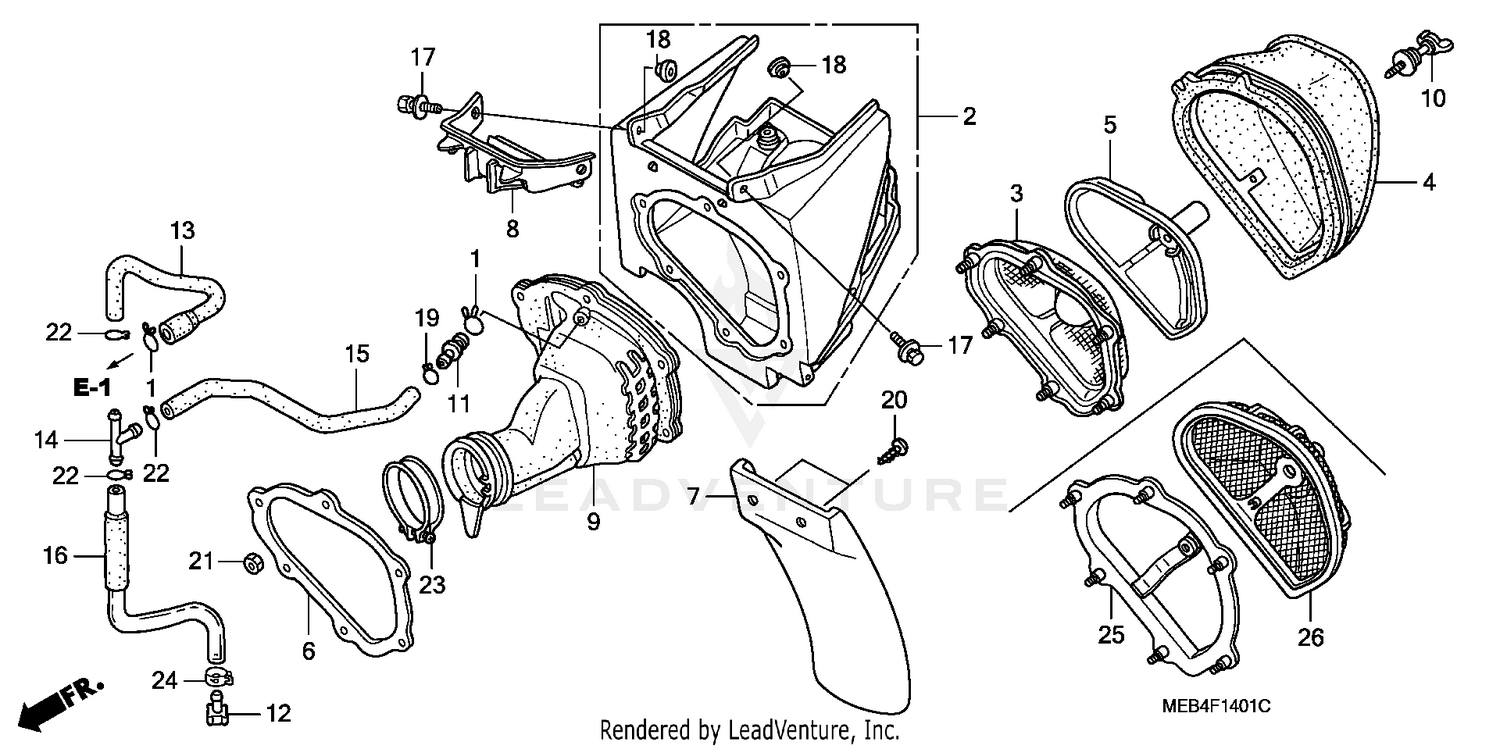

Air Cleaner ('03-'04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, AIR CLEANER
17210-MEB-770
|
$117.26 | ||
|
Unavailable |
|||
|
#4
ELEMENT, AIR CLEANER
17213-KRN-850
|
$48.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT, AIR CLEANER
17213-MEB-770
Superseded by 17213-KRN-850
|
$48.95 | ||
|
Unavailable |
|||
|
#6
PLATE, FR. AIR CLEANER HOUSING
17217-MEB-770
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPLASH GUARD, AIR CLEANER HOUSING
17218-KZ3-860
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
VISOR, AIR CLEANER HOUSING
17223-MEB-670
|
$11.91 | ||
|
Unavailable |
|||
|
#9
TUBE, AIR CLEANER CONNECTING
17253-MEB-770
|
$37.09 | ||
|
Unavailable |
|||
|
#10
BOLT, AIR CLEANER ELEMENT SETTING
17291-MEB-670
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, BREATHER TUBE
17359-MAG-L00
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, BREATHER TUBE
17370-419-700
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE A, BREATHER
17372-MEB-670
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, BREATHER THREE WAY
17373-KC1-J10
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE B, BREATHER
17374-MEB-670
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE C, BREATHER
17375-MEB-670
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X16)
90102-KS6-000
|
$10.61 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, RR. COVER
90506-425-000
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP B, TUBE (12.5MM)
90661-GHB-610
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (5X20)
93913-15510
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEX. (5MM)
94002-05000-0S
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, TUBE (B12)
95002-02120
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND, AIR CLEANER CONNECTING TUBE (60)
95018-60321
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.21 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, AIR CLEANER ELEMENT
17212-MEN-670
|
$75.07 | ||
|
Available to order. Add to View Price |
|||
|
#26
BASE ASSY., ELEMENT
17214-MEN-670
|
$55.29 | ||
|
Available to order. Add to View Price |
|||
