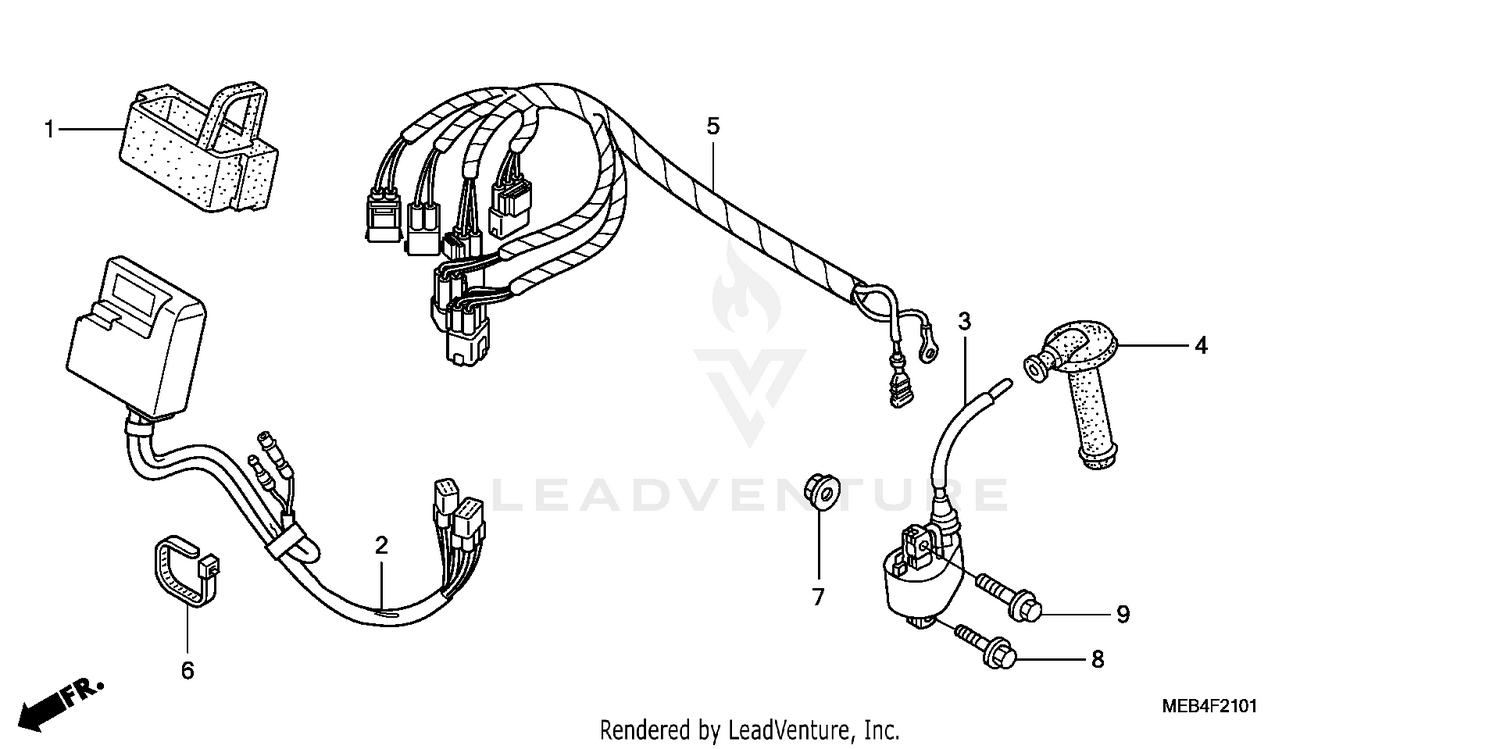

Wire Harness ('08) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-MEN-A10
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-MEN-A11
|
$250.28 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL ASSY., IGNITION
30500-MEB-671
|
$73.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-MEB-671
|
$58.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS
32100-MEN-A10
|
$56.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, HARNESS
90650-MBY-000
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
