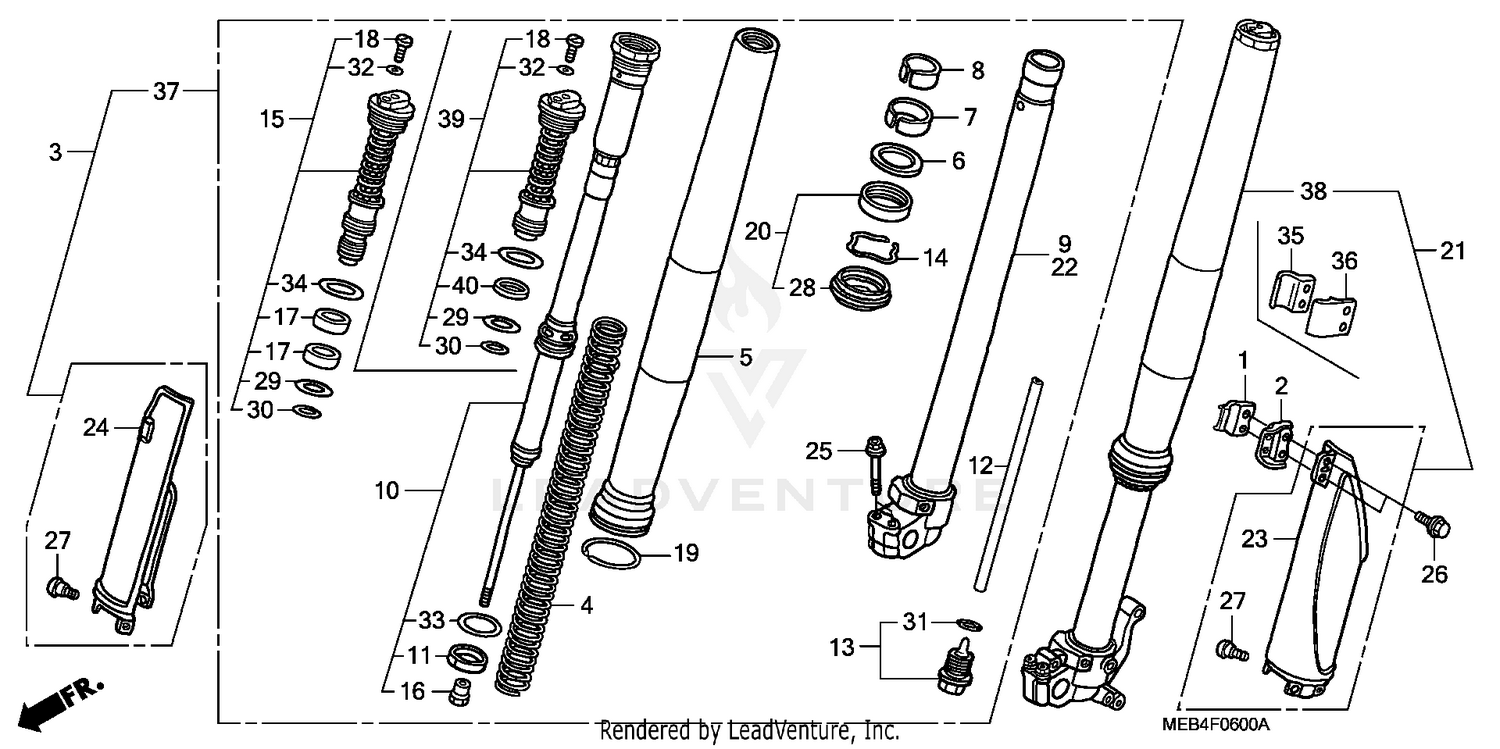

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, FR. BRAKE CABLE
45461-KA3-710
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP B, FR. BRAKE CABLE
45462-KA3-710
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK ASSY., R. FR. *TNATURAL* (SHOWA) (NATURAL)
51400-MEB-003ZA
|
$1,023.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, FR. FORK (4.41N/MM,0.45KGF/MM) (SHOWA)
51402-MEB-003
|
$74.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, FR. FORK (4.61N/MM,0.47KGF/MM) (SHOWA)
51401-MEB-003
|
$111.43 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, FR. FORK (4.81N/MM,0.49KGF/MM) (SHOWA)
51403-MEB-003
|
$75.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE (OUTER)
51410-KZ3-J31
|
$444.53 | ||
|
Unavailable |
|||
|
#6
RING, BACK-UP
51412-KZ3-B01
|
$11.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, GUIDE
51414-KZ3-B01
|
$19.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SLIDER
51415-KZ3-B01
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, R. SLIDE
51420-MEB-003
|
$334.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, FR.
51430-MEB-003
|
$342.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH B, SLIDER
51431-KZ3-B01
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, REBOUND NEEDLE
51437-MEB-003
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CENTER
51441-KZ3-J41
|
$102.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOPPER
51447-KZ3-003
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT ASSY., FR. FORK
51450-MEB-003
|
$57.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, LOCK
51451-KZ3-B01
|
$16.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH C, SLIDER
51453-KZ3-B01
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, PLUG
51456-KZ3-J41
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, WEAR
51476-KZ3-711
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL SET, FR. FORK
51490-KZ3-J31
|
$30.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
FORK ASSY., L. FR. *TNATURAL* (SHOWA) (NATURAL)
51500-MEB-003ZA
|
$1,023.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, L. SLIDE
51520-MEB-003
|
$334.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)
51610-MAC-781ZA
|
$46.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)
51620-MAC-781ZA
|
$64.72 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X40)
90108-KZ4-J40
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6MM)
90113-KZ3-000
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, PROTECTOR
90113-MAC-780
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL
91254-KZ3-J31
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (26.7X3.5)
91256-KZ3-A71
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (18.5X1.5)
91257-KZ3-B01
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (18.8X1.9)
91258-KZ3-B01
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (3.5X1.5)
91301-KZ3-711
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (44.7X2.4)
91356-KZ3-003
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (37.2X2.4) (SHOWA)
91356-MW0-003
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
