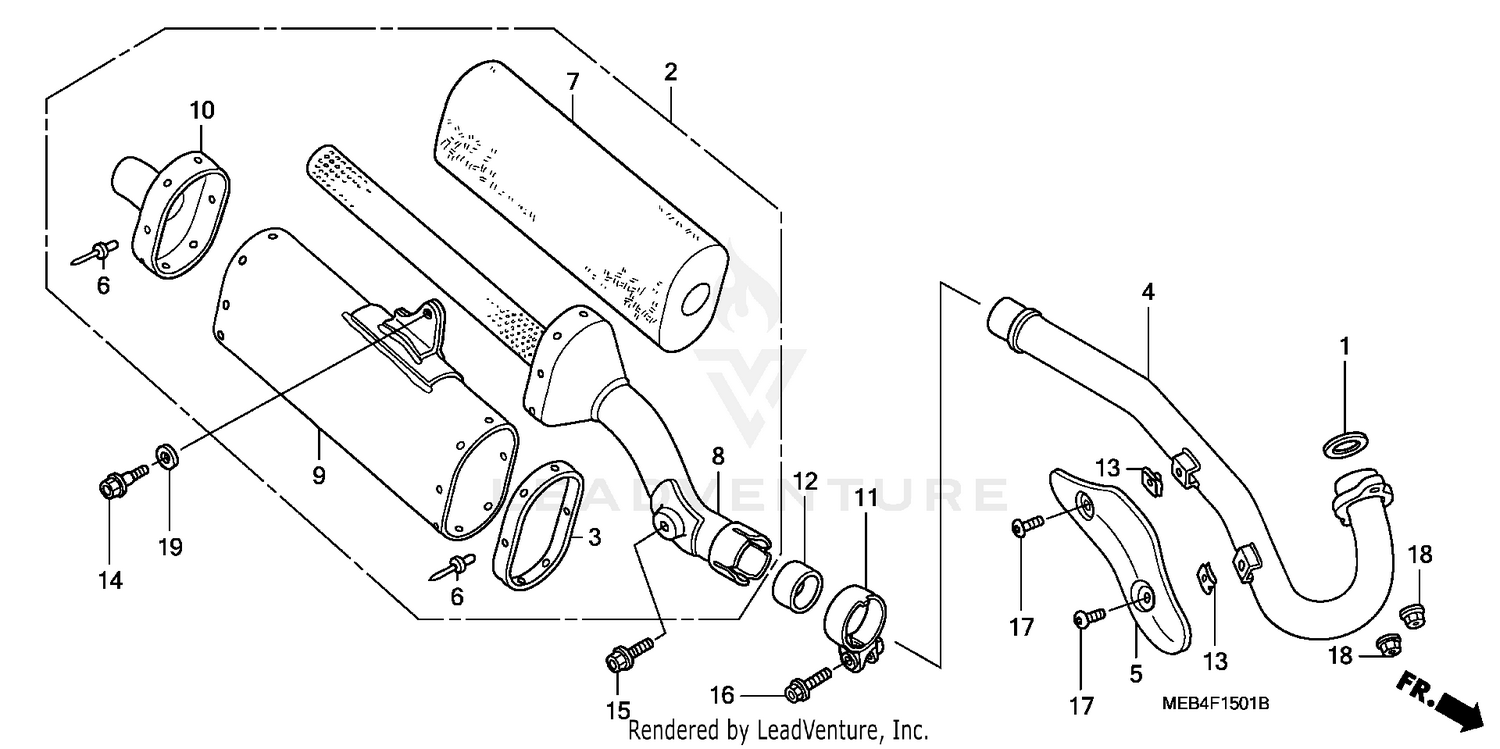

Exhaust Muffler ('03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MEB-670
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUFFLER (98DB)
18310-MEB-770
|
$892.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND, FR. MUFFLER BODY
18311-MEB-670
|
$24.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EX.
18320-MEB-671
|
$229.72 | ||
|
Unavailable |
|||
|
#5
PROTECTOR, EX. PIPE
18323-MEB-670
|
$61.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET, BLIND (4.8)
18324-MEB-670
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
WOOL, GLASS (50)
18336-MEB-770
|
$192.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
MUFFLER, FR. (98DB)
18350-MEB-770
|
$445.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
BODY, MUFFLER
18351-MEB-770
|
$216.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
MUFFLER, RR. (98DB)
18352-MEB-670
|
$49.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, L. RR. MUFFLER
18376-MG7-000
|
$31.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
18392-MEB-670
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPRING (6MM)
19508-KA3-710
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X24)
90121-KZ4-J40
Superseded by 90101-KZ3-J50
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X18)
90123-KZ4-J40
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X32)
90124-MEB-770
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL (6MM)
90170-MEB-670
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (8MM)
94050-08000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (8MM)
94103-08000
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
