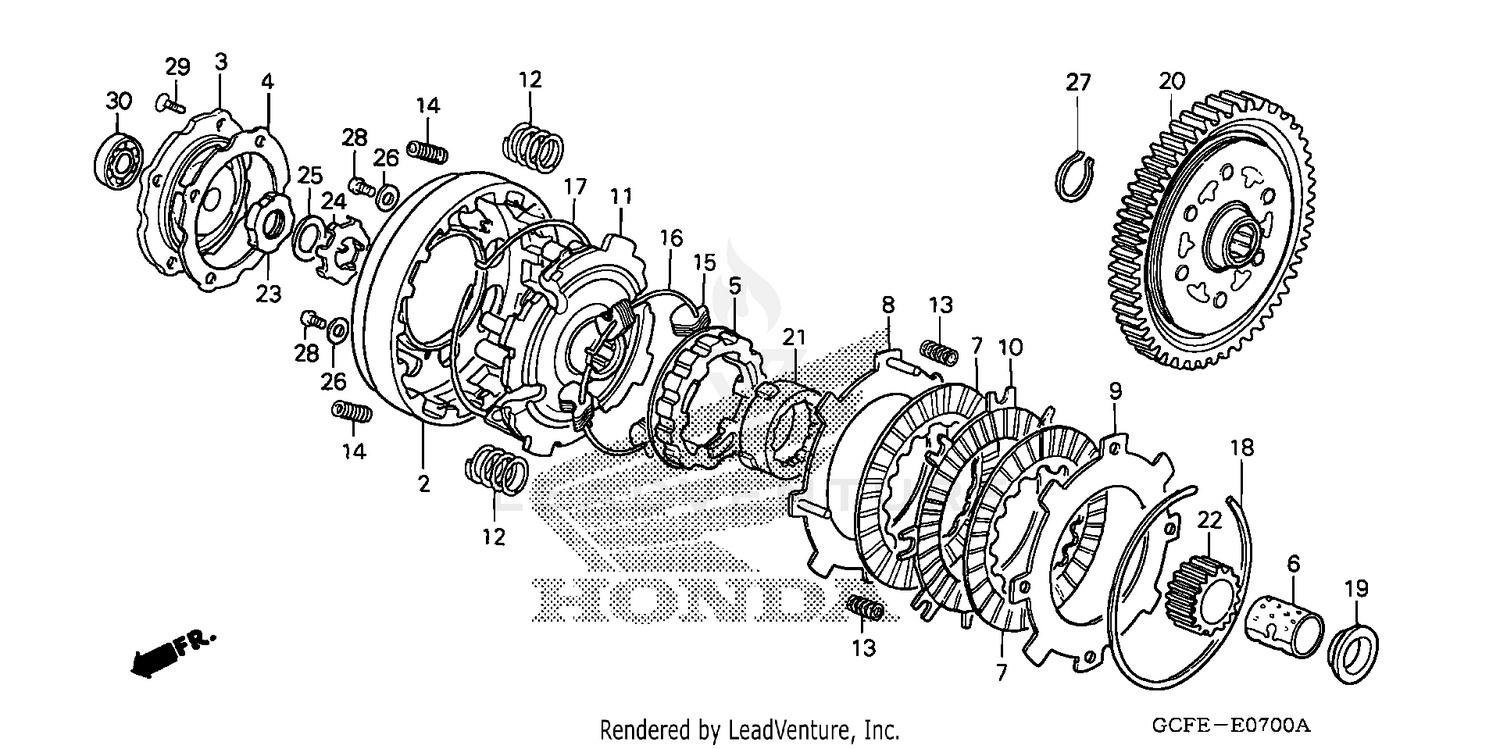

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CLUTCH OUTER
22101-178-000
|
$57.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, CLUTCH (OUTER)
22111-178-010
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CLUTCH COVER (OUTER)
22119-GW8-681
Superseded by 22119-GW8-682
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, CLUTCH
22120-GCF-670
|
$58.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, CLUTCH CENTER
22131-035-030
|
$23.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISK A, CLUTCH FRICTION
22201-GW8-681
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE A, CLUTCH
22310-GB0-910
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE B, CLUTCH
22321-041-000
Superseded by 22321-046-020
|
$11.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE B, CLUTCH
22321-046-020
|
$11.24 | ||
|
Unavailable |
|||
|
#10
DISK B, CLUTCH FRICTION
22331-GW8-681
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, DRIVE
22351-178-020
|
$81.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, CLUTCH
22401-092-900
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CLUTCH FREE
22411-178-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CLUTCH DAMPER
22421-040-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
WEIGHT, CLUTCH
22531-178-000
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, CLUTCH WEIGHT CENTER
22535-033-000
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, CLUTCH WEIGHT STOPPER
22536-033-000
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
SET-RING (102MM)
22901-001-000
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR (17MM)
22911-GB4-680
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, PRIMARY DRIVEN (67T)
23110-GCF-670
|
$141.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
OUTER, DRIVE GEAR (18T)
23112-041-050
|
$36.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, PRIMARY DRIVE (18T)
23120-041-000
|
$52.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, LOCK (14MM)
90231-087-010
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, LOCK (14MM)
90431-086-000
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER B, LOCK
90432-086-000
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, STOPPER
90483-041-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP (OUTER) (17MM)
90601-001-000
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (5X10)
93500-05010-0A
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, FLAT (5X10)
93600-05010-0A
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (6000)
96100-60000-00
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
