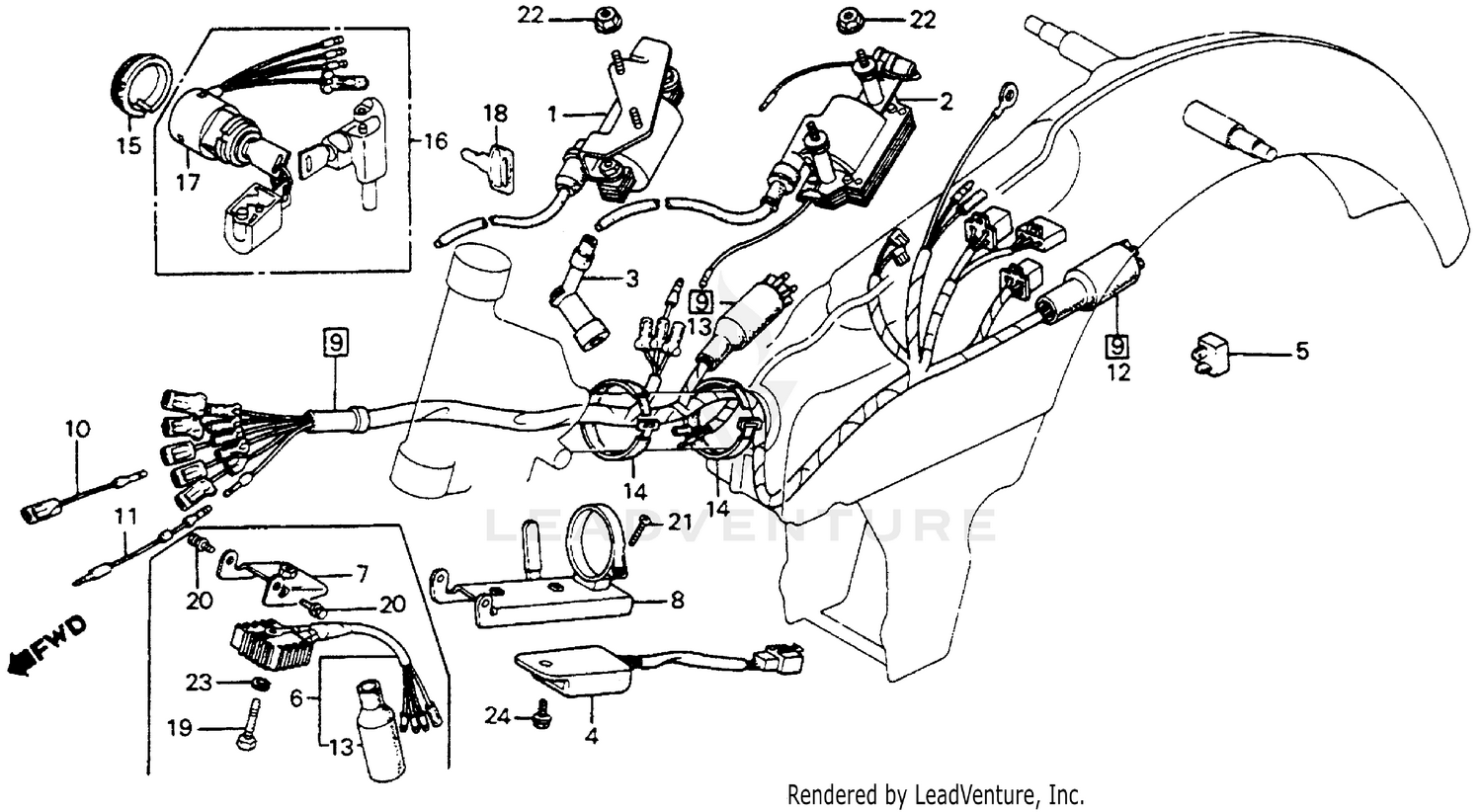

Wire Harness + Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
COIL ASSY., IGNITION
30530-459-671
|
$119.40 | ||
|
Unavailable |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-098-153
Superseded by 30700-KE2-942
|
$20.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-098-163
Superseded by 30700-KE2-942
|
$20.40 | ||
|
Unavailable |
|||
|
#5
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-003
Superseded by 31700-124-008
|
$33.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$33.93 | ||
|
Unavailable |
|||
|
#9
WIRE HARNESS (NOT AVAILABLE)
32100-459-670
|
$105.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUB-CABLE (NOT AVAILABLE)
32101-459-670
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUB-WIRE A (NOT AVAILABLE)
32105-152-670
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, WIRE HARNESS CONNECTOR
32108-003-000
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND A3, WIRE
32161-001-000
Superseded by 95014-61300
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND A3, CABLE
95014-61300
|
$2.11 | ||
|
Unavailable |
|||
|
#15
GROMMET, MAIN SWITCH (NOT AVAILABLE)
32983-459-670
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
LOCK SET
35010-459-671
|
$120.30 | ||
|
Unavailable |
|||
|
#17
SWITCH ASSY., COMBINATION
35100-459-671
Superseded by 35100-459-753
|
$58.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH ASSY., COMBINATION
35100-459-753
|
$58.31 | ||
|
Unavailable |
|||
|
#22
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
