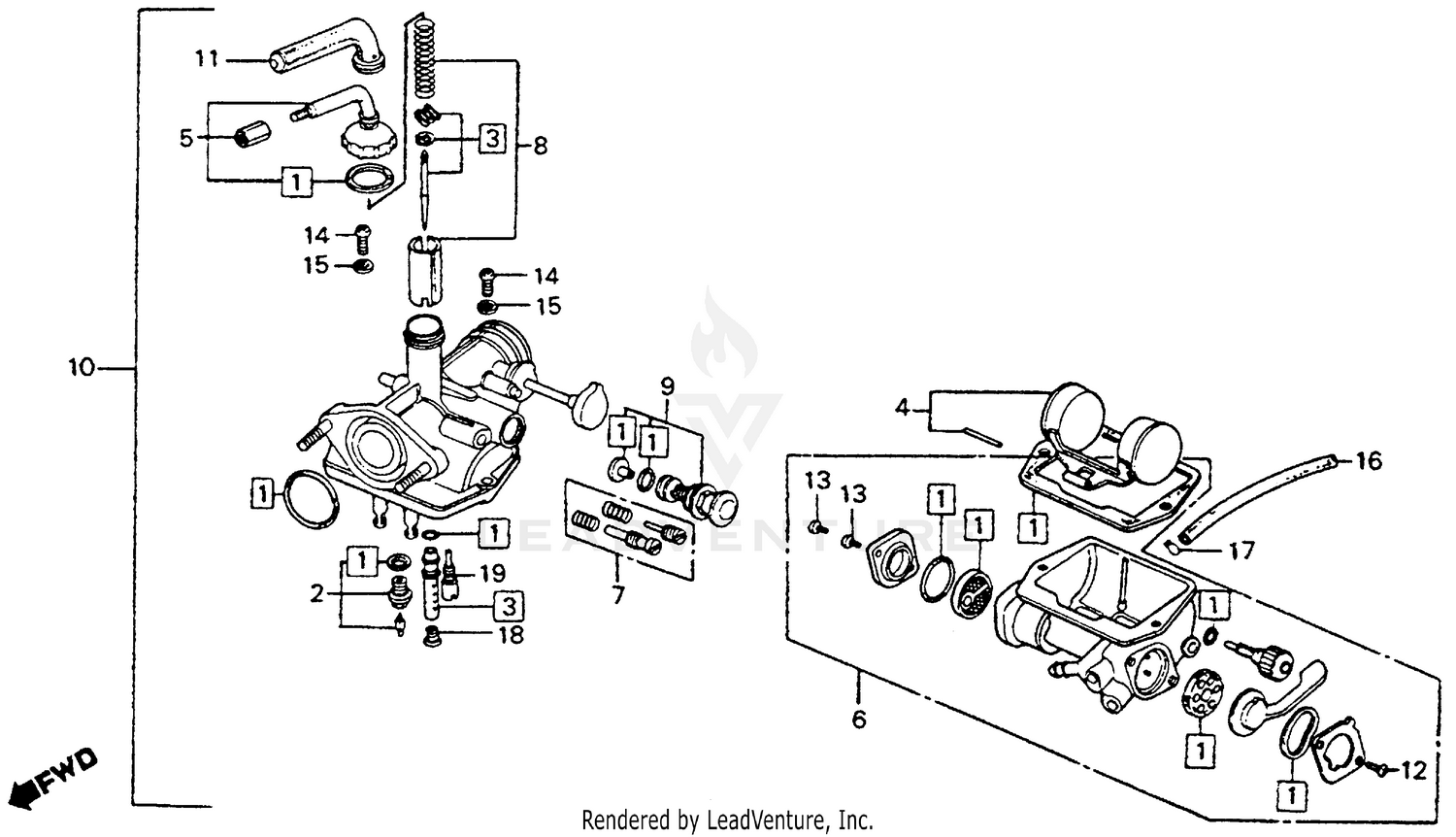

Carburetor K6-77 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-102-305
|
$37.56 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-102-700
Superseded by 16010-102-305
|
$37.56 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-070-004
Superseded by 16011-355-004
|
$24.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-355-004
|
$24.21 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET
16012-102-004
|
$27.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-046-004
Superseded by 16013-116-700
|
$33.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-116-700
|
$33.16 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-116-704
Superseded by 16013-116-700
|
$33.16 | ||
|
Unavailable |
|||
|
#5
TOP SET (NOT AVAILABLE)
16014-918-004
|
$22.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-102-700
|
$84.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW SET A
16016-046-004
|
$19.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET A, THROTTLE (NOT AVAILABLE)
16022-046-004
|
$22.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT SET, FUEL (NOT AVAILABLE)
16037-077-004
|
$48.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
CARBURETOR ASSY. (NOT AVAILABLE)
16100-102-702
|
$154.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, CABLE SEALING
16118-121-004
Superseded by 16118-121-014
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, CABLE SEALING
16118-121-014
|
$7.32 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN (3X5)
93500-03005-0A
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN (3X6)
93500-03006-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (4X12)
93500-04012-0A
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING (4MM)
94111-04000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULK HOSE, FUEL (3.5X3000) (3.5X300)
95001-35003-60M
|
$24.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, TUBE (B7)
95002-02070
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
JET, MAIN (#62) (NOT AVAILABLE)
99114-077-0620
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, SLOW (#35)
99124-303-0350
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, SLOW (#35)
99145-03504
Superseded by 99124-303-0350
|
$7.55 | ||
|
Unavailable |
|||
