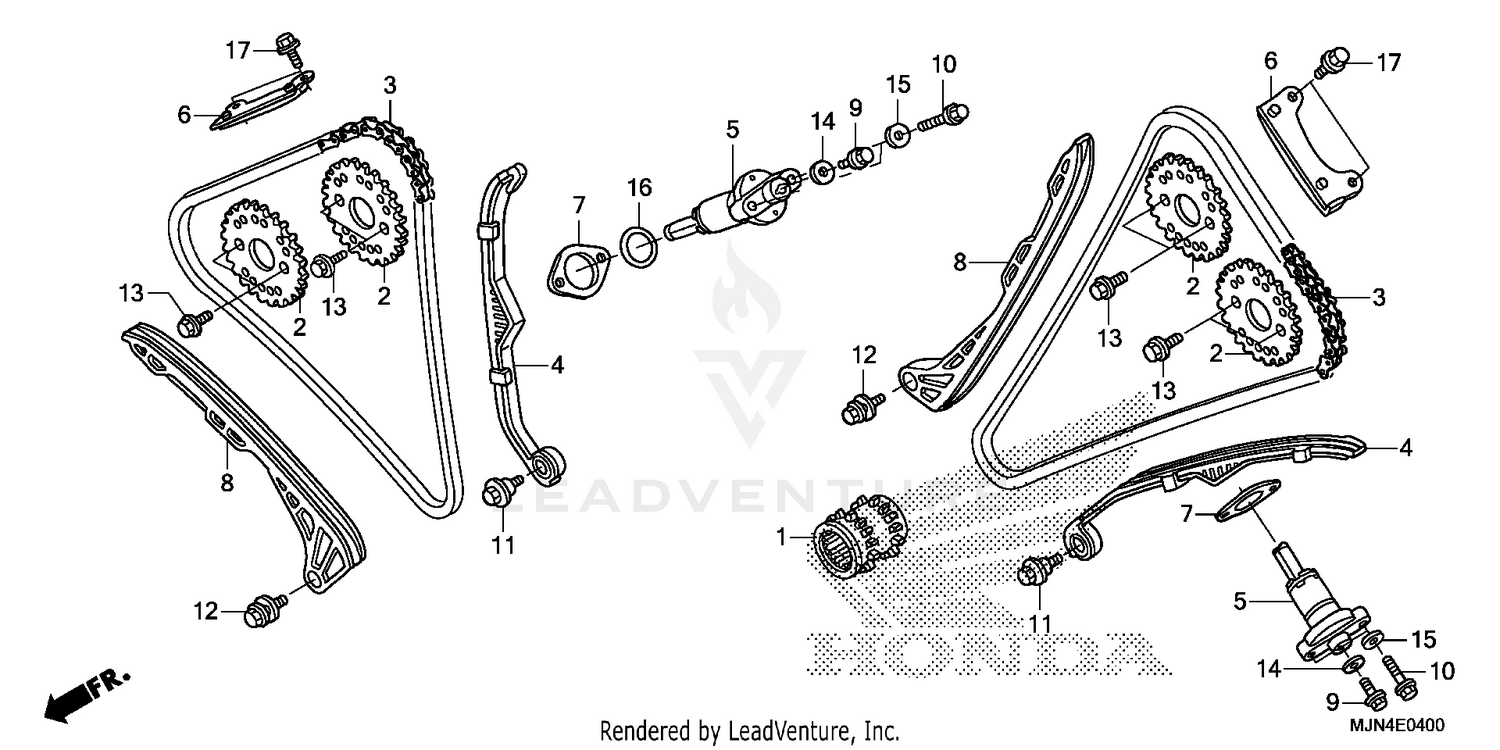

Cam Chain + Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, TIMING (19T)
14312-MCS-000
|
$50.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM (38T)
14321-MCS-000
|
$44.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, CAM (138L) (BORG WARNER)
14401-MCT-003
|
$96.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER, CAM CHAIN
14510-MCS-000
|
$84.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
LIFTER, TENSIONER
14520-MCS-003
|
$100.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE B, CAM CHAIN
14546-MCS-D80
|
$52.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, TENSIONER LIFTER
14560-MCS-003
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, CAM CHAIN
14620-MCS-000
|
$60.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X10) (NSHF)
90004-GHB-600
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X25) (NSHF)
90006-GHB-670
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, TENSIONER PIVOT
90011-MCS-000
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (6X12)
90021-MM5-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL FLANGE (7X13)
90086-MZ8-H00
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (6MM)
90442-397-000
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (6MM)
90488-425-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (23X2.4) (ARAI)
91304-GC8-003
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
