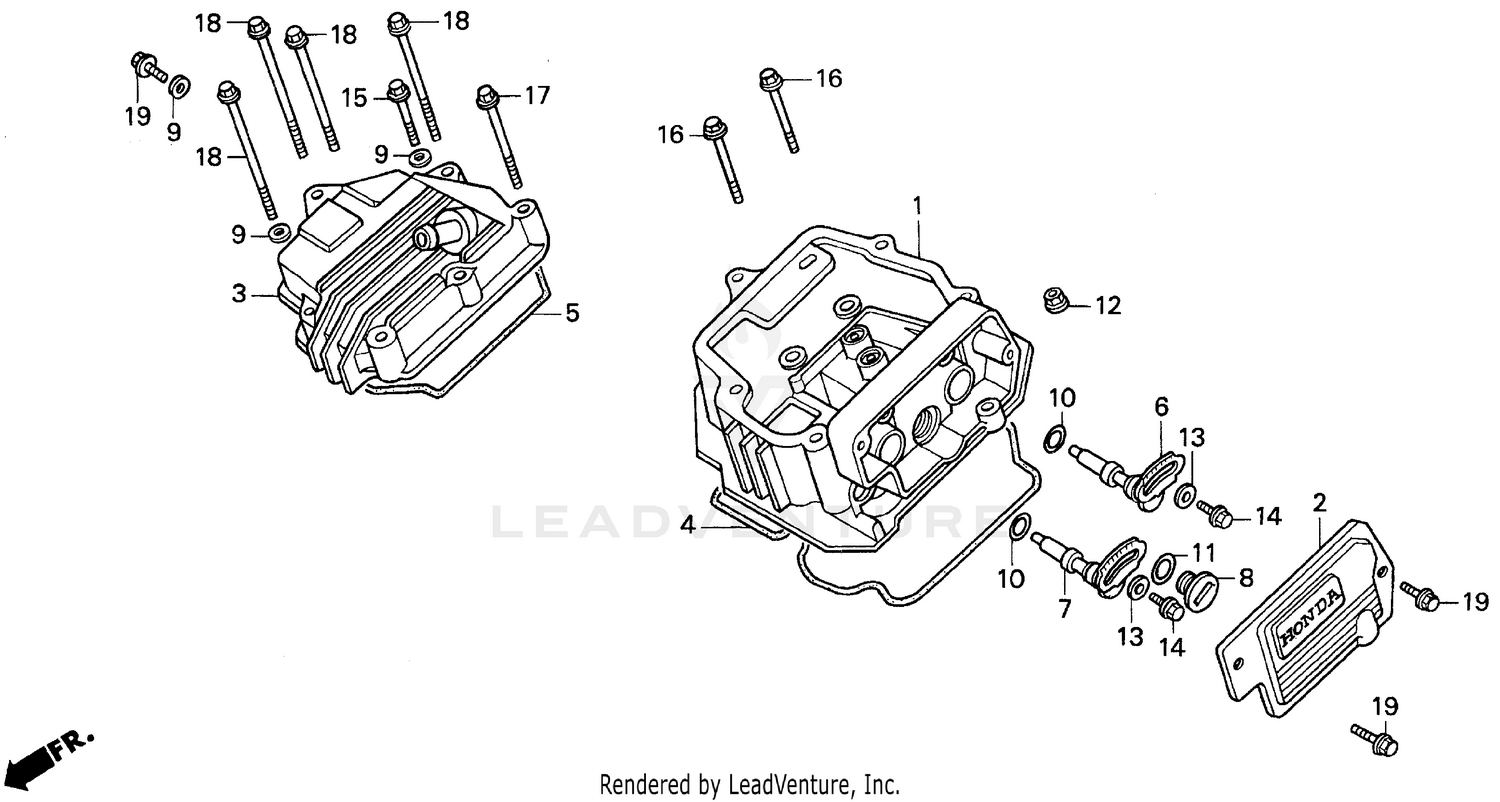

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD
12310-HB3-840
|
$238.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, TAPPET ADJUSTING HOLE
12311-HB7-670
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, BREATHER
12315-HB7-670
|
$143.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, HEAD COVER (NOT AVAILABLE)
12391-HB3-004
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, HEAD COVER (NOT AVAILABLE)
12391-HB3-013
Superseded by 12391-HB3-004
|
$8.76 | ||
|
Unavailable |
|||
|
#5
GASKET, BREATHER COVER (NOT AVAILABLE)
12396-HB3-003
|
$9.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, ROCKER ARM IN. (NOT AVAILABLE)
14450-HB3-010
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, ROCKER ARM EX. (NOT AVAILABLE)
14460-HB3-010
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, ALTERNATOR
90084-428-000
Superseded by 90084-471-000
|
$11.65 | ||
|
Unavailable |
|||
|
#8
CAP, ALTERNATOR
90084-471-000
|
$11.65 | ||
|
Unavailable |
|||
|
#9
WASHER, SEALING (6MM)
90441-706-000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (9.8X1.9)
91301-812-000
Superseded by 91305-PE2-003
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (9.8X1.9)
91302-PJ4-000
Superseded by 91305-PE2-003
|
$2.62 | ||
|
Unavailable |
|||
|
#10
O-RING (9.8X1.9)
91302-PJ4-004
Superseded by 91305-PE2-003
|
$2.62 | ||
|
Unavailable |
|||
|
#10
O-RING (9.8X1.9)
91303-HB3-003
Superseded by 91305-PE2-003
|
$2.62 | ||
|
Unavailable |
|||
|
#10
O-RING (9.8X1.9)
91303-729-720
Superseded by 91305-PE2-003
|
$2.62 | ||
|
Unavailable |
|||
|
#10
O-RING (9.8X1.9)
91303-729-721
Superseded by 91305-PE2-003
|
$2.62 | ||
|
Unavailable |
|||
|
#10
O-RING (9.8X1.9)
91305-PE2-003
|
$2.62 | ||
|
Unavailable |
|||
|
#11
O-RING (13.8X2.5)
91303-377-000
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.63 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN (6MM)
94101-06800
|
$0.63 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X55)
95701-06055-09
Superseded by 95701-06055-00
|
$2.13 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X70)
95701-06070-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X80)
95701-06080-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
