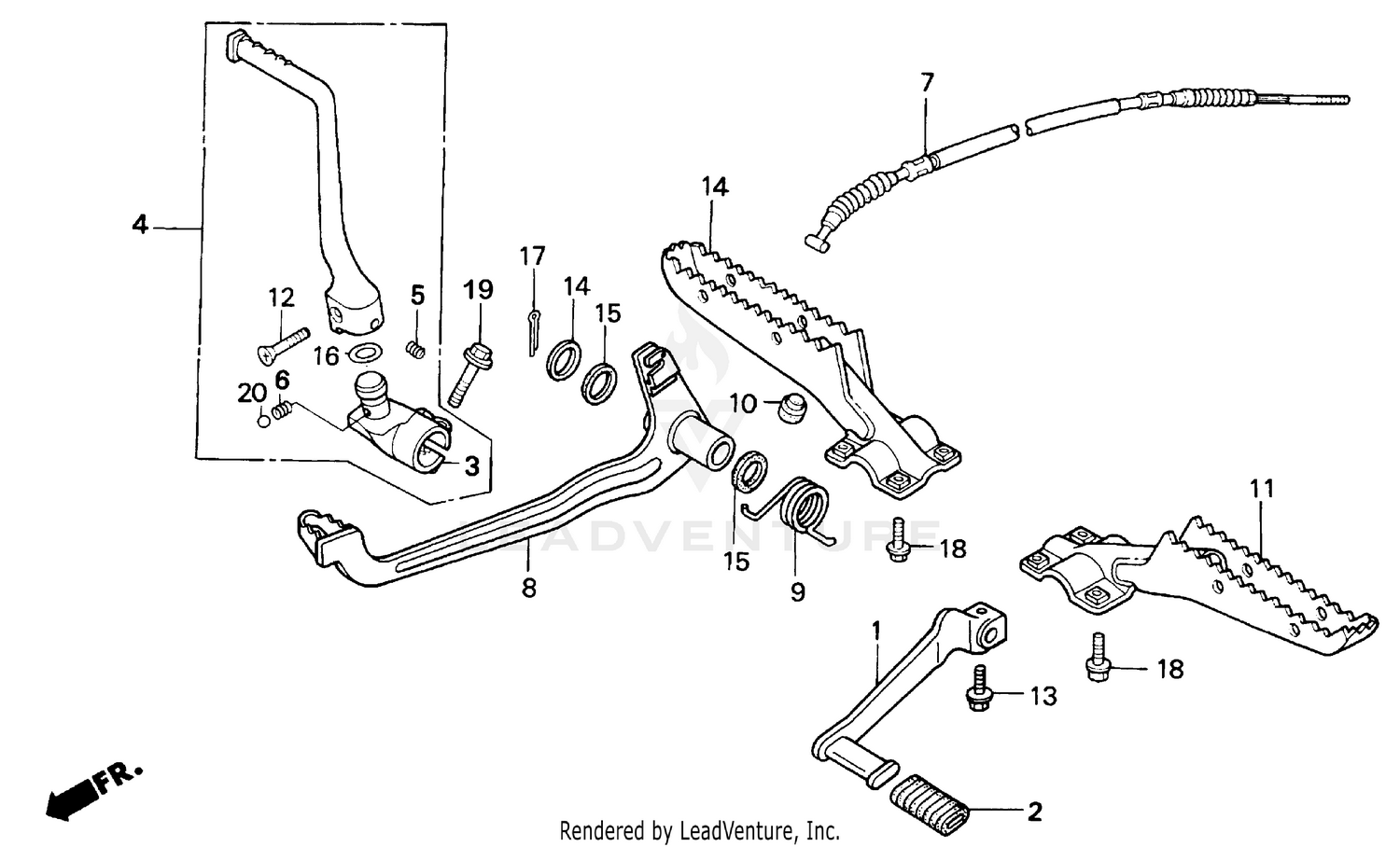

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-HM5-850
|
$75.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, CHANGE PEDAL
24781-371-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, KICK ARM
28241-HA8-681
Superseded by 28241-HA6-680
|
$49.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM ASSY., KICK STARTER
28300-HC4-750
|
$136.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, KICK ARM
28302-965-000
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, KICK STARTER STOPPER
28333-124-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, FOOT BRAKE
43470-HC5-971
Superseded by 43470-HM5-630
|
$37.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, FOOT BRAKE
43470-HM5-630
|
$37.58 | ||
|
Unavailable |
|||
|
#8
PEDAL, BRAKE
46500-HC5-970
|
$417.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, BRAKE PEDAL
46514-HM5-730
|
$40.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, STAND STOPPER
50505-GA7-730
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR, STEP
50610-HC5-970
|
$87.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, OVAL (6X28)
90101-HC4-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X20)
90118-968-000
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (17.5MM)
90512-303-000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL (17X23X3) (NOK)
91206-968-003
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUST SEAL (17X23X3) (NOK)
91206-968-004
Superseded by 91206-968-003
|
$4.36 | ||
|
Unavailable |
|||
|
#16
O-RING (14MM) (ARAI)
91353-671-003
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.02 | ||
|
Unavailable |
|||
|
#17
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.02 | ||
|
Unavailable |
|||
|
#17
PIN, SPLIT (3.0X45)
94201-30450
|
$1.02 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X28)
95701-08028-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
