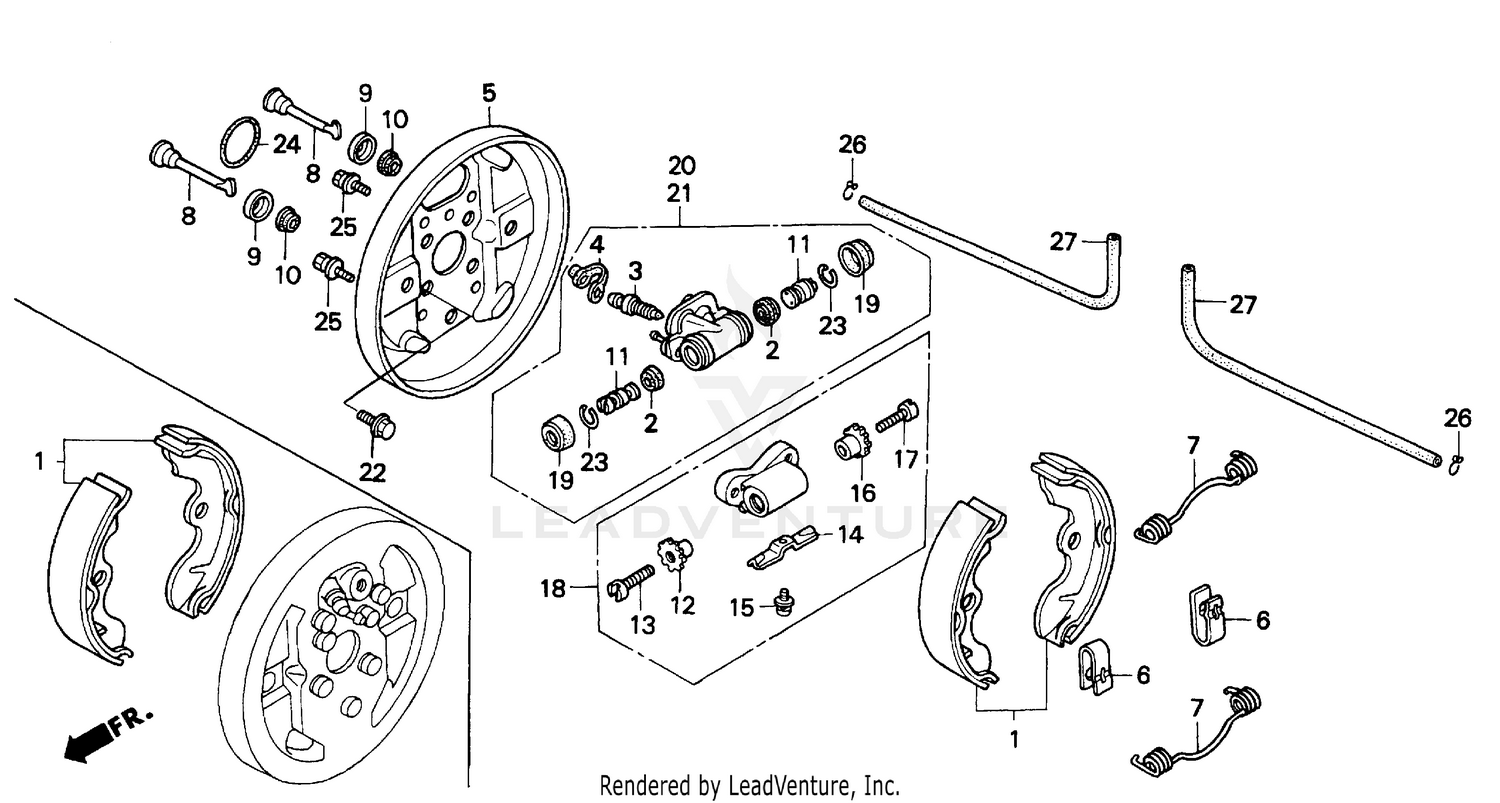

Front Brake Panel (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOE SET, BRAKE (INCLUDES 4 SHOES)
06450-HC4-900
|
$49.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUP, PISTON
43325-567-003
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, BACK (NISSIN)
45101-HC4-841
|
$70.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, SHOE HOLDER (NISSIN)
45172-HB3-003
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, BRAKE
45173-HC4-006
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, TENSION
45175-HC4-006
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, PIN (NISSIN)
45176-HM5-A81
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, PIN (NISSIN)
45177-HA7-651
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON, WHEEL CYLINDER (NISSIN)
45314-HC4-006
|
$24.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
ADJUSTER, R. FR. BRAKE
45316-634-013
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, R. ADJUSTING
45317-634-013
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, LOCK
45318-HB3-003
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER (4X6)
45319-634-003
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
ADJUSTER, L. FR. BRAKE
45336-634-013
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, L. ADJUSTING
45337-634-013
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#18
ADJUSTER ASSY. (NISSIN)
45340-HC4-000
|
$61.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT, WHEEL CYLINDER
45342-HB3-003
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
CYLINDER ASSY., R. FR. WHEEL (NISSIN)
45350-HC4-505
|
$133.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
CYLINDER ASSY., R. FR. WHEEL (NISSIN)
45350-HC4-841
Superseded by 45350-HC4-505
|
$133.81 | ||
|
Unavailable |
|||
|
#21
CYLINDER ASSY., L. FR. WHEEL (NISSIN)
45370-HC4-505
|
$133.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
CYLINDER ASSY., L. FR. WHEEL (NISSIN)
45370-HC4-841
Superseded by 45370-HC4-505
|
$133.94 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (8X12)
90115-HM4-930
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, PISTON (NISSIN)
90661-HC4-006
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (29.7X1.3)
91357-HC4-003
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-WASHER (6X12)
93402-06012-08
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, TUBE (C6.5)
95002-35000
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#27
BULK HOSE, VACUUM (3.5X1000) (3.5X950) (BULK HOSE 95005-35001-30M)
95005-35001-30M
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
