2008 Honda FOURTRAX FOREMAN 4X4 ES WITH POWER STEERING FUEL TANK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+

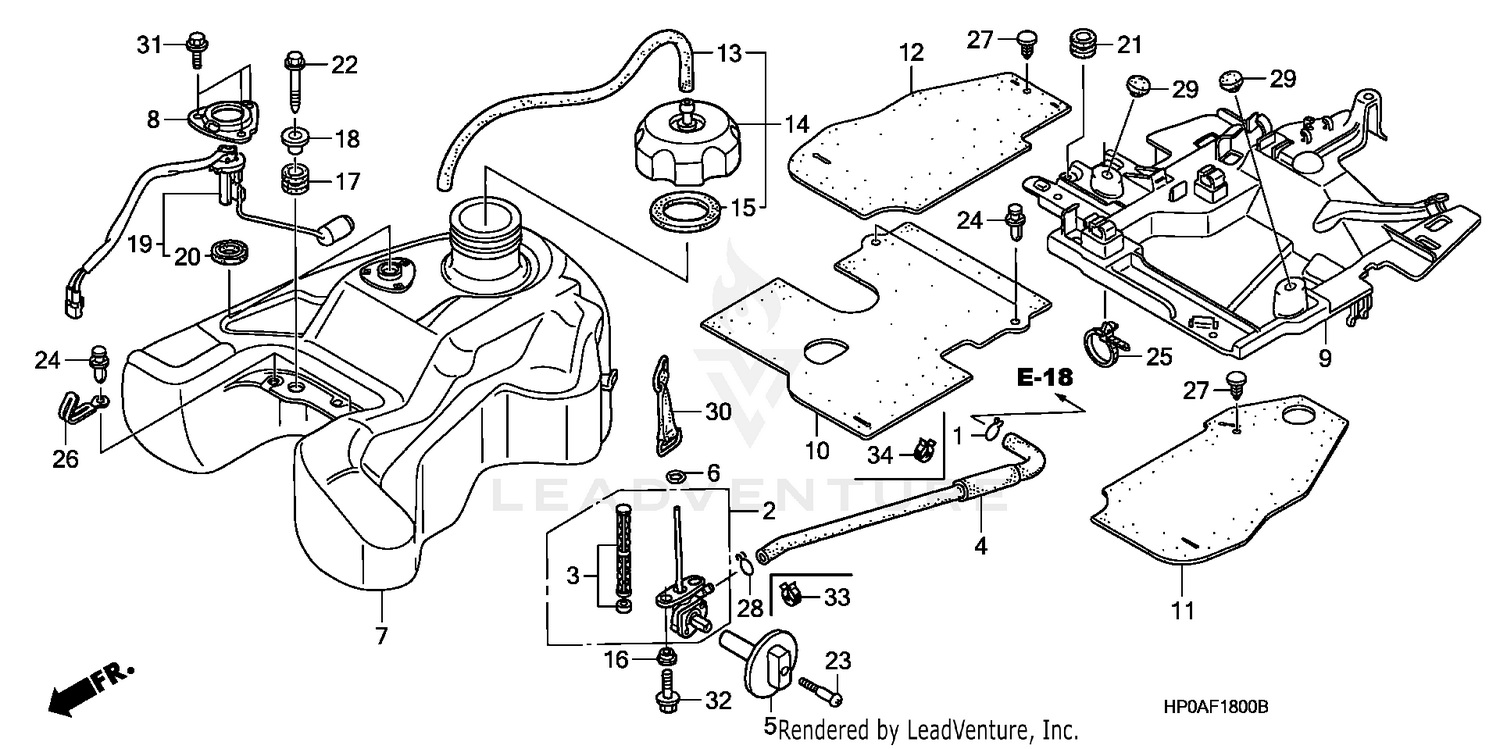

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15707-634-000
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-HP0-A01
|
$94.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREEN SET, FUEL STRAINER
16952-HP0-A01
|
$28.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FUEL
16955-HP0-B80
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER, PETCOCK *NH1* (BLACK)
16963-HP0-A00ZA
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING (11.8X3.55)
16997-467-000
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
TANK, FUEL
17510-HP0-B80
|
$185.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, UNIT SET
17515-GBL-760
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR, TANK HEAT (LOWER)
17515-HP0-A00
|
$26.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, RR. SEAL
17516-HP0-A50
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, L. FR. SEAL
17517-HP0-A00
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, R. FR. SEAL
17518-HP0-A00
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, FUEL CAP BREATHER
17521-HA2-670
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP ASSY., FUEL TANK
17620-HF7-000
|
$63.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, FUEL CAP
17624-HF7-000
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, FUEL TANK SETTING
17626-467-000
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, MUFFLER
18334-KA3-830
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.67 | ||
|
Unavailable |
|||
|
#19
FUEL UNIT SET
37080-HP0-A00
Superseded by 37080-HP0-A01
|
$96.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUEL UNIT SET
37080-HP0-A01
|
$96.62 | ||
|
Unavailable |
|||
|
#20
GASKET, BASE
37801-GA7-700
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, TAILLIGHT MOUNTING
80219-HC4-000
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SPECIAL (6X32)
90101-HM8-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, L. HANDLEBAR LEVER PIVOT
90116-GF8-000
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, HARNESS BAND (151.5MM) (NATURAL)
91540-S30-003
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, WIRE HARNESS
91405-MG1-000
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, WASHER MOUTH
91504-SD5-901
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#29
RUBBER C, STAND STOPPER
95011-63000
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND A, BATTERY
95012-11001
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP, TUBE (12.0)
90651-HN6-A51
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP, TUBE (D13)
95002-41300-05
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
