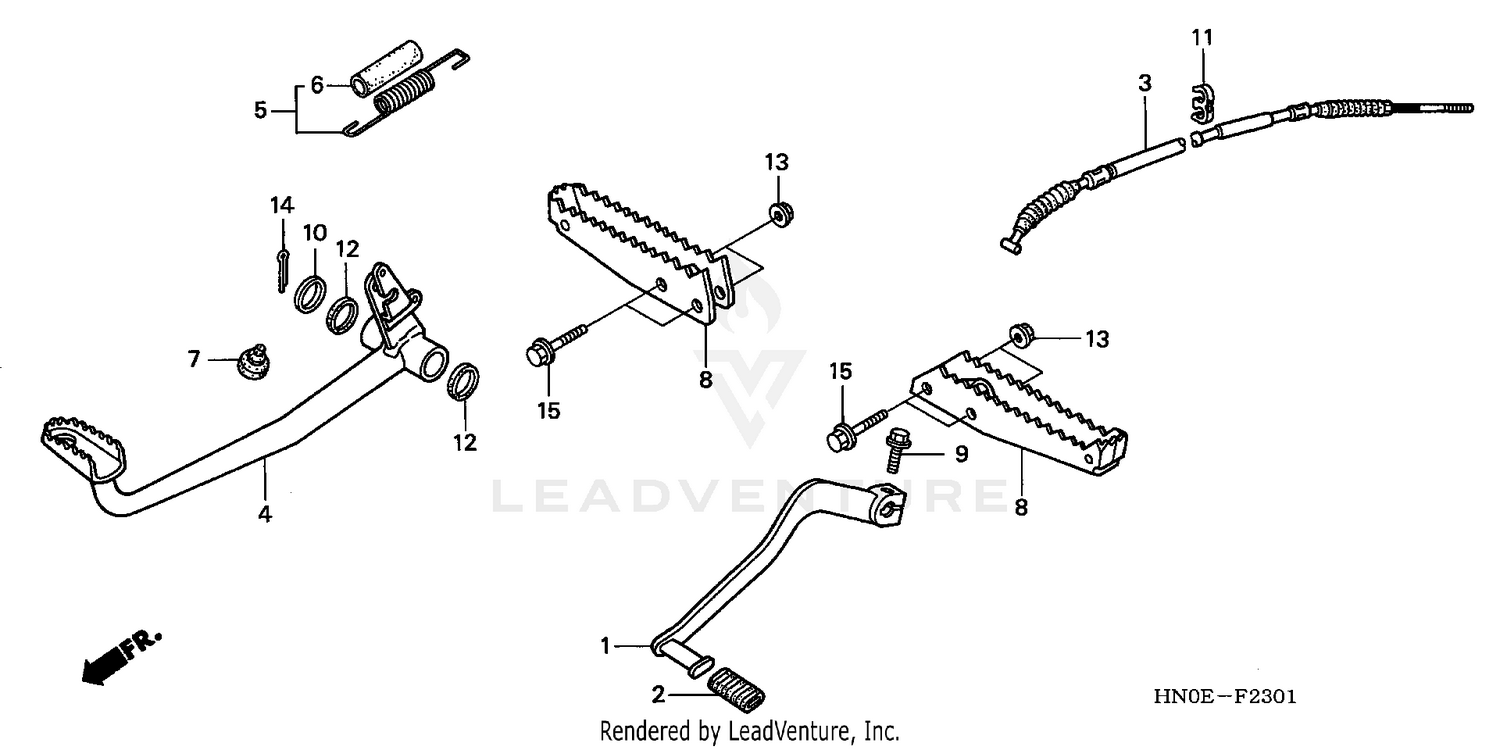

Step (trx450fm) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-HM7-A00
|
$74.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, GEARSHIFT PEDAL
24781-371-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, FOOT BRAKE
43470-HN0-A00
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
PEDAL, BRAKE
46500-HM7-000
|
$75.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING ASSY., RR. BRAKE PEDAL
46513-HM7-000
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, BRAKE PEDAL SPRING
46515-HM7-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, STAND STOPPER
50505-GA7-730
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
STEP
50610-HM8-000
|
$18.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X20)
90118-968-000
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (17.5MM)
90512-303-000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, HIGH TENSION CORD (L. SIDE)
90658-ZA0-930
|
$2.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (17X23X3) (NOK)
91206-968-003
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.02 | ||
|
Unavailable |
|||
|
#14
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.02 | ||
|
Unavailable |
|||
|
#14
PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)
94201-30450
|
$1.02 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (8X45)
95801-08045-00
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
