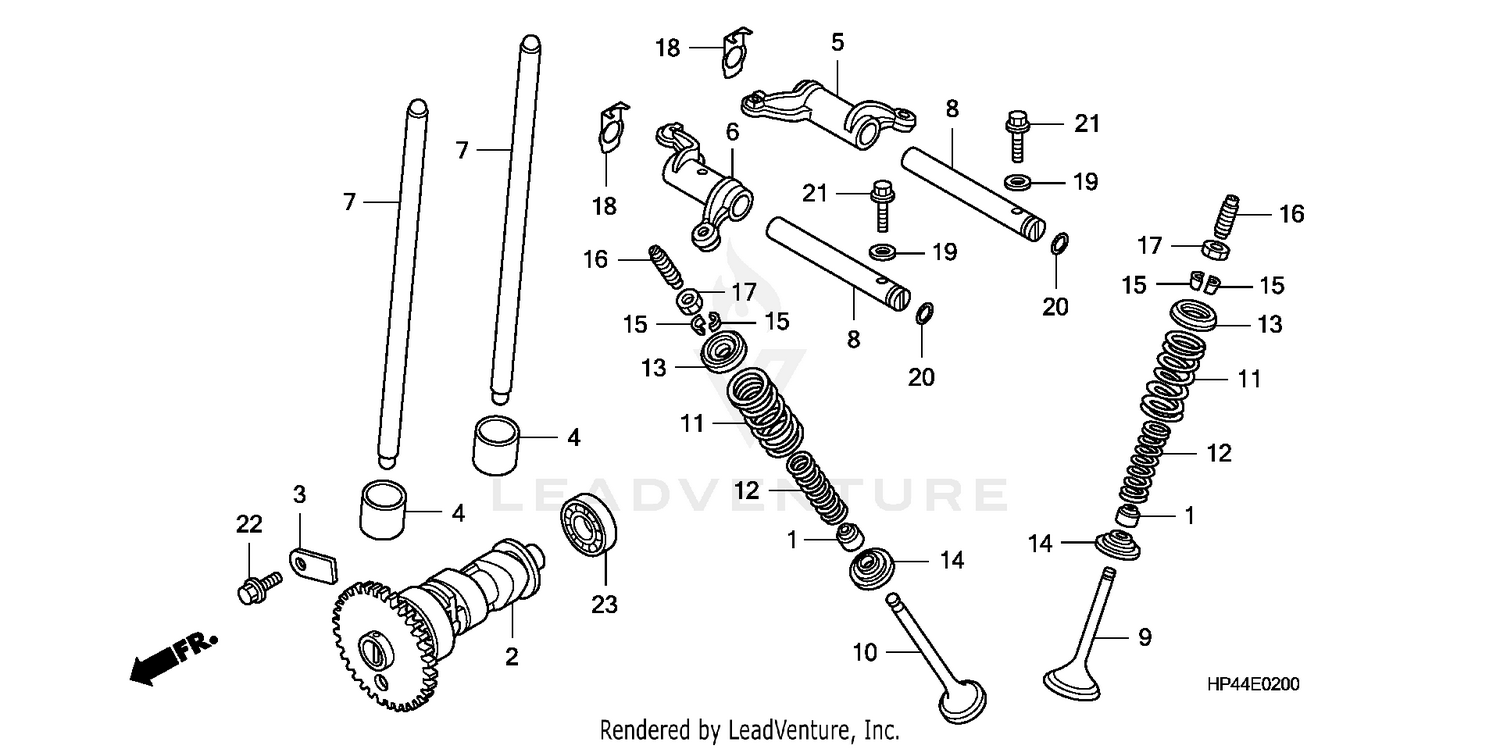

Camshaft + Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, VALVE STEM
12208-HP5-601
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT (38T)
14100-HP5-600
|
$212.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, CAM FIXING
14115-HP5-000
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOLLOWER, CAM
14421-HN8-000
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM, IN. VALVE ROCKER
14431-HP5-600
Superseded by 14431-HR0-F00
|
$64.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM, IN. VALVE ROCKER
14431-HR0-F00
|
$64.38 | ||
|
Unavailable |
|||
|
#6
ARM, EX. VALVE ROCKER
14432-HP5-600
|
$62.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, PUSH
14440-HP5-600
|
$16.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, ROCKER ARM
14451-HN2-000
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, IN.
14711-HN7-000
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE, EX.
14721-HN7-900
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, VALVE (OUTER)
14751-HN7-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, VALVE (INNER)
14761-HN7-000
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
RETAINER, VALVE SPRING
14771-KE5-000
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, VALVE SPRING
14775-HN0-670
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
COTTER, VALVE
14781-HA0-770
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPET ADJUSTING
90012-426-000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, TAPPET ADJUSTING
90206-250-000
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
90403-HP5-600
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SEALING (6MM)
90441-706-000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (1.5X9.5)
91306-MG3-000
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (1.5X9.5)
91306-105-690
Superseded by 91306-MG3-000
|
$2.30 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X16)
95701-08016-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6202)
96100-62020-00
|
$10.47 | ||
|
Available to order. Add to View Price |
|||
