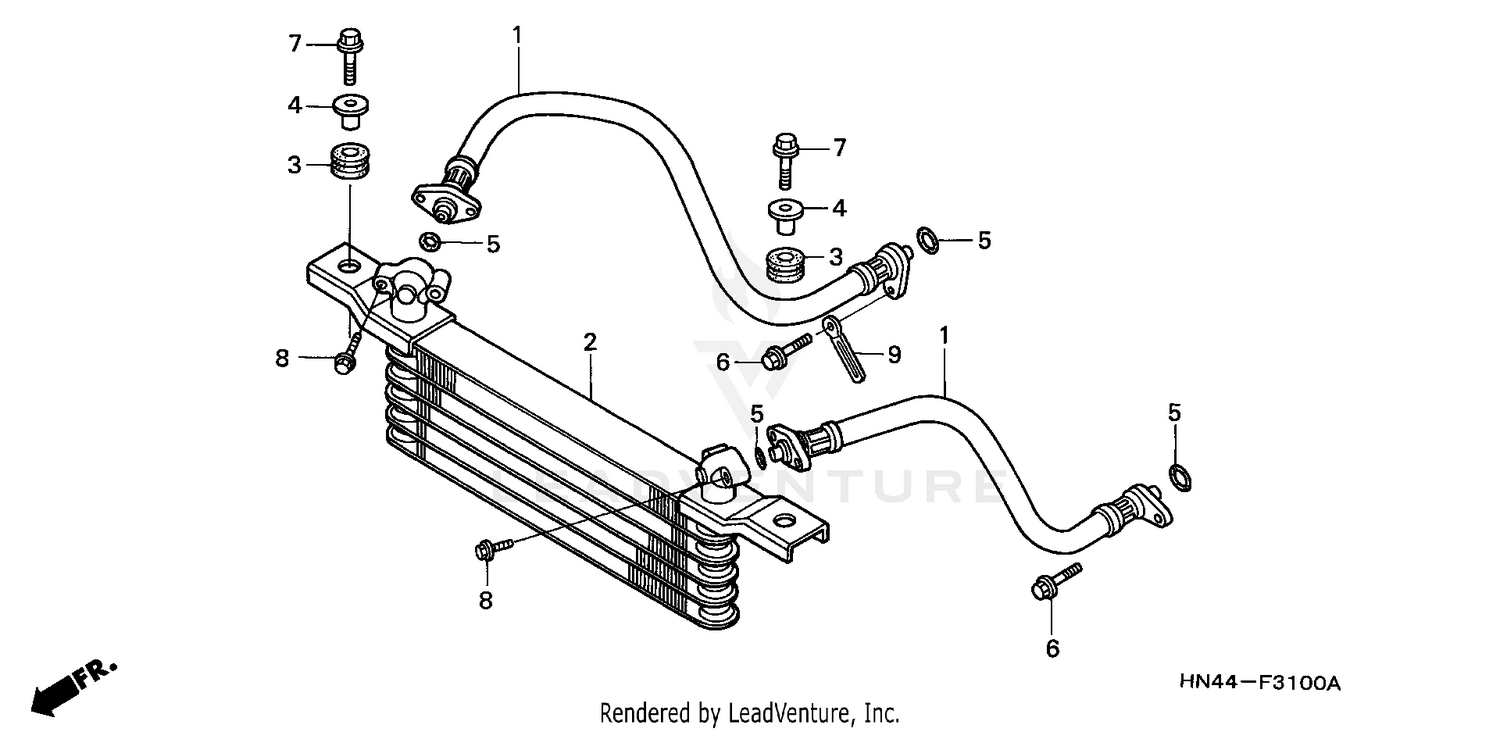

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, OIL
15520-HN5-670
|
$64.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
COOLER, OIL
15600-HM7-610
|
$315.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RADIATOR MOUNTING
19052-MN8-000
Superseded by 19052-MGH-640
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING (11X2.5)
91310-426-000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING (11X2.5)
91314-MA6-005
Superseded by 91310-426-000
|
$6.15 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
