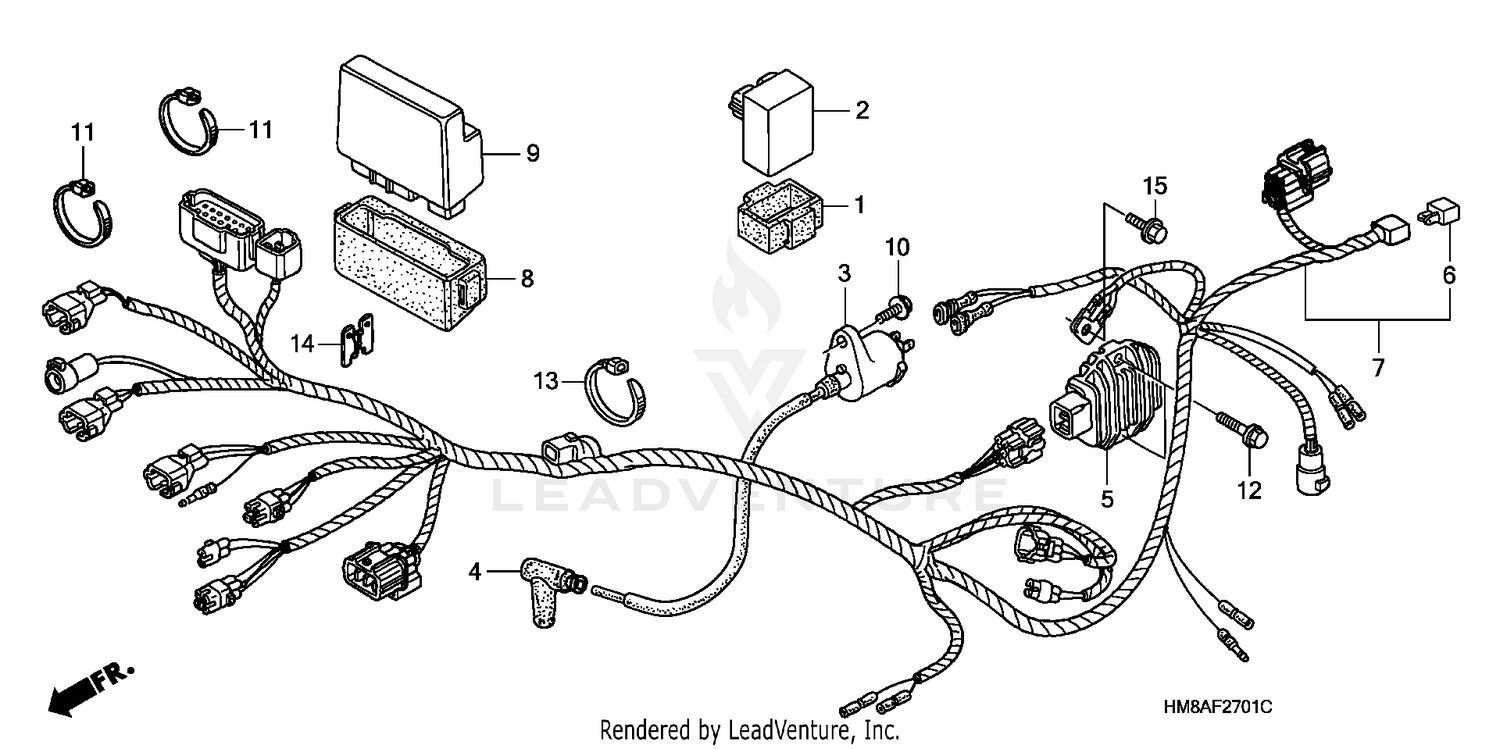

Wire Harness (te) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-HB6-000
Superseded by 30401-HB6-010
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI)
30410-HN6-000
|
$138.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL, IGNITION
30510-HN6-000
|
$28.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-MA0-163
|
$25.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-965-013
Superseded by 30700-MA0-163
|
$25.87 | ||
|
Unavailable |
|||
|
#5
RECTIFIER ASSY., REGULATOR
31600-HM8-013
|
$71.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$34.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS
32100-HM8-A50
|
$298.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUSPENSION, CONTROL UNIT
38901-HN5-A10
|
$20.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONTROL UNIT, CHANGE
38910-HM8-A51
Superseded by 38910-HM8-A52
|
$254.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (5X22)
90112-GK8-010
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.39 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
