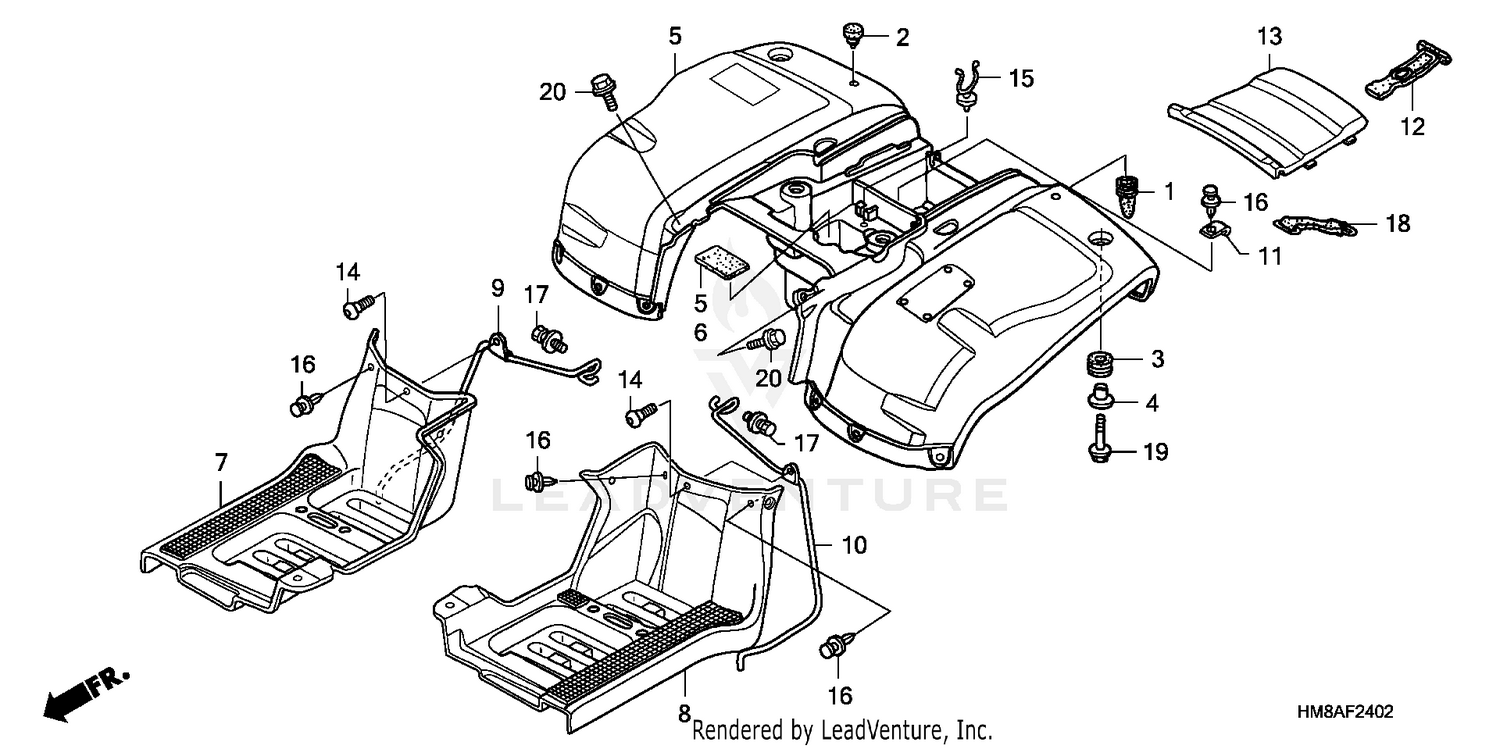

Rear Fender (tm/te '05) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, DRAIN
17358-VM4-000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, STAND STOPPER
50505-GA7-730
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, FR. FENDER MOUNTING
61103-HM5-850
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. FENDER (WHITE)
61104-357-000
Superseded by 61104-428-010
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. FENDER (WHITE)
61104-428-000
Superseded by 61104-428-010
|
$5.08 | ||
|
Unavailable |
|||
|
#5
FENDER, RR. *G152* (ADVENTURE GREEN)
80100-HM8-B00ZA
|
$213.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, RR. *R232* (PATRIOT RED)
80100-HM8-B00ZB
|
$213.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, RR. *Y151R* (STARBURST YELLOW)
80100-HM8-B00ZC
|
$213.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, BATTERY MOUNTING
80102-HN2-300
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPLASH GUARD, R. CENTER *NH1* (BLACK)
80121-HM8-B00ZA
|
$74.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPLASH GUARD, L. CENTER *NH1* (BLACK)
80122-HM8-B00ZA
|
$74.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, R. RR. SPLASH GUARD
80123-HM8-B00
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, L. RR. SPLASH GUARD
80124-HM8-B00
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY B, TOOL BOX
80132-HM8-000
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TOOL BOX
80214-HM5-850
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, TOOL BOX *NH1* (BLACK)
80311-HM8-B00ZD
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, SPECIAL (6X8)
90102-HN5-670
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP, HARNESS
90119-HA7-670
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X16)
93404-06016-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND A, BATTERY
95012-11001
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6MM)
90111-187-000
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
