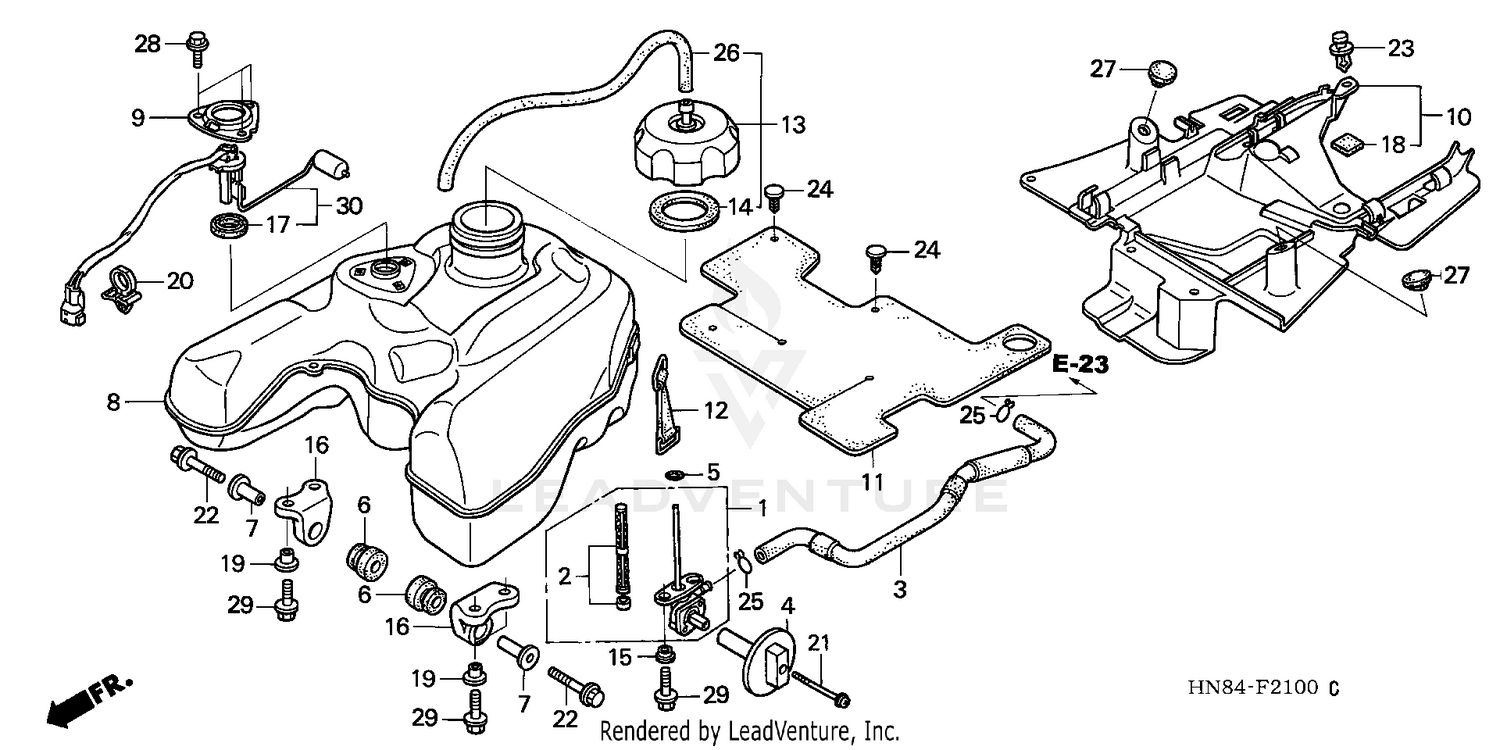

2003 Honda FOURTRAX RINCON FUEL TANK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-HM7-003
|
$141.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREEN SET, FUEL STRAINER
16952-HM7-003
|
$26.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, FUEL
16955-HN8-010
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, PETCOCK *NH1* (BLACK)
16963-HM8-000ZA
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING (11.8X3.55)
16997-467-000
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, TANK MOUNTING
17508-GBF-830
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, TANK SETTING
17509-KS6-700
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANK, FUEL
17510-HN8-010
|
$206.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, UNIT SET
17515-GBL-760
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR, FUEL TANK HEAT (LOWER)
17515-HN8-000
|
$53.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, HEAT PROTECTOR
17516-HN8-000
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TANK
17517-HN8-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSY., FUEL TANK
17620-HF7-000
|
$63.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FUEL CAP
17624-HF7-000
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, FUEL TANK SETTING
17626-467-000
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, FR. FUEL TANK
17634-KZ3-860
|
$16.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, BASE
37801-GA7-700
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER, CUSHION PAD
64207-MAM-A00
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
84706-415-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, FUEL BREATHER TUBE
90115-HN8-000
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (5X80)
90101-HM7-000
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X40)
90137-KA3-830
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, WASHER MOUTH
91504-SD5-901
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE (B12)
95002-02120
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
TUBE, FUEL CAP BREATHER
17521-HA2-670
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER C, STAND STOPPER
95011-63000
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#30
FUEL UNIT SET
37080-HN8-000
|
$65.65 | ||
|
Available to order. Add to View Price |
|||
