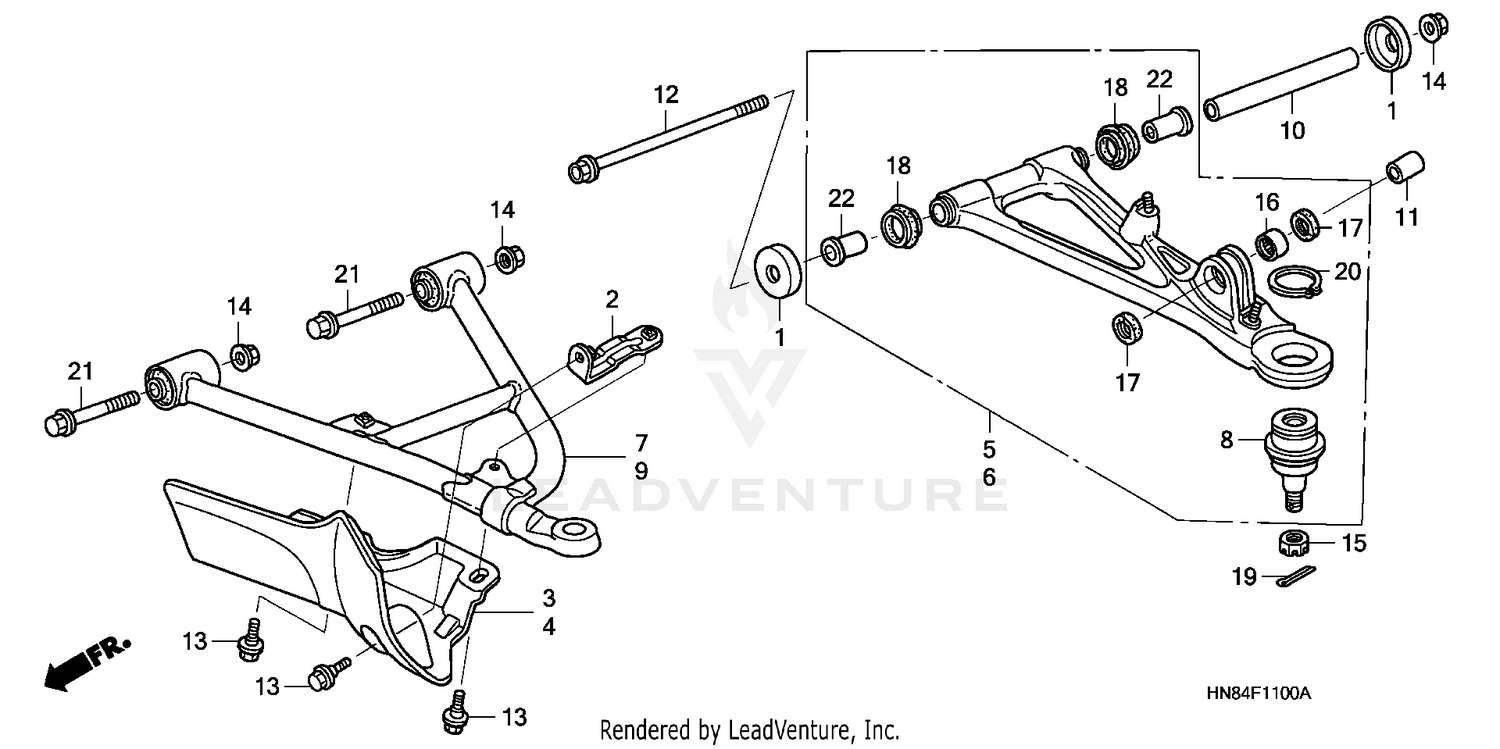

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, PIVOT (10X32)
51206-HN8-000
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, FR. GUARD
51311-HN8-000
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUARD, R. FR.
51315-HN2-000
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUARD, L. FR.
51316-HN2-000
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM SET, R. FR. (UPPER)
51330-HN8-000
|
$492.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM SET, L. FR. (UPPER)
51340-HN8-000
|
$492.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM ASSY., R. FR. (LOWER)
51350-HN8-000
|
$282.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT A, ARM BALL
51355-HN0-A01
Superseded by 51375-HP5-601
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT A, ARM BALL
51375-HP5-601
|
$24.15 | ||
|
Unavailable |
|||
|
#9
ARM ASSY., L. FR. (LOWER)
51360-HN8-000
|
$247.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, ARM (UPPER)
51464-HN2-000
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, RR. SHOCK ABSORBER
52486-HN2-000
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X164)
90106-HN8-000
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6MM)
90111-KT1-780
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, NEEDLE (16X22X12)
91077-HN2-003
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (16X24X4)
91253-HN8-003
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (24X32X7)
91261-HN8-003
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SPLIT (3.0X18)
94201-30180
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (OUTER) (34MM)
94514-34000
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.45 | ||
|
Unavailable |
|||
|
#22
BUSH, ARM (UPPER)
51108-HN2-000
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
