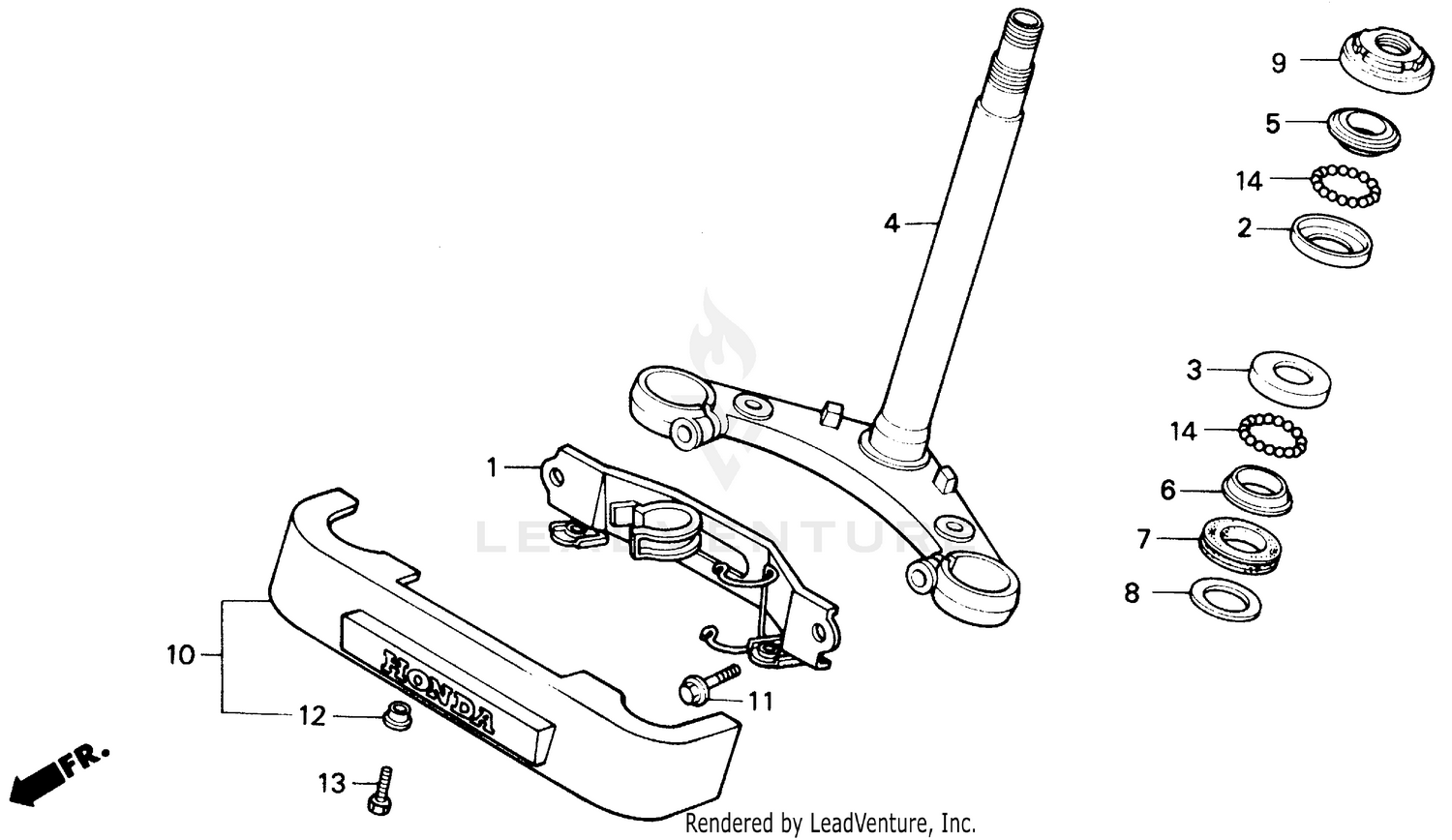

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, BRAKE HOSE (NOT AVAILABLE)
38107-MK6-670
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
RACE, STEERING TOP BALL
50301-268-010
|
$26.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
RACE, STEERING BALL (LOWER)
50302-268-010
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
STEM, STEERING (NOT AVAILABLE)
53200-KN8-000
|
$277.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE, STEERING TOP CONE
53211-268-010
|
$31.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
RACE, STEERING CONE (LOWER)
53212-250-010
|
$25.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL
53214-250-000
Superseded by 53214-K0T-J00
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, STEERING HEAD DUST SEAL
53215-250-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
THREAD, STEERING HEAD TOP
53220-KE8-010
|
$36.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FR. (NOT AVAILABLE)
61401-KN8-000
|
$22.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X37) (NOT AVAILABLE)
90119-961-000
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR (6X14X8X5)
90502-680-000
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (5X12)
92000-05012-0B
Superseded by 92101-05012-0B
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (5X12)
92101-05012-0B
|
$1.50 | ||
|
Unavailable |
|||
|
#14
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
