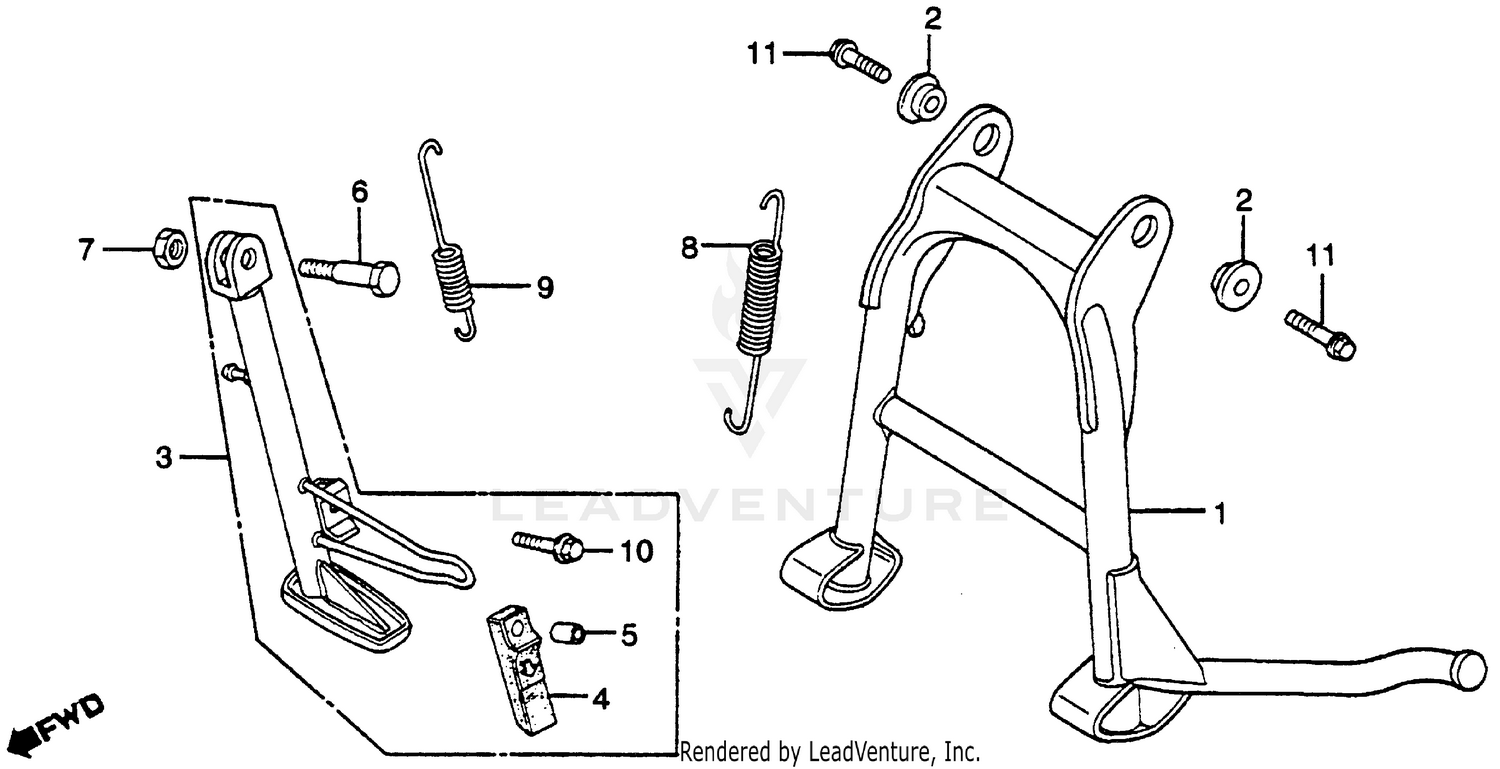

Main Stand + Side Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN (NOT AVAILABLE)
50500-ME2-000
|
$81.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, MAIN STAND
50503-MA1-000
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAND ASSY., SIDE
50540-ME2-000
|
$72.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, STAND
50548-356-700
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, STAND RUBBER SETTING
50549-356-700
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SIDE STAND PIVOT
90108-223-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, HEX. (10MM)
94031-10000
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING J, MAIN STAND
95014-71902
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING D, SIDE STAND
95014-72402
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X28)
95700-06028-00
|
$1.78 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X25)
95701-10025-08
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X25)
95800-10025-08
Superseded by 95701-10025-08
|
$2.27 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (10X25)
95801-10025-08
Superseded by 95701-10025-08
|
$2.27 | ||
|
Unavailable |
|||
