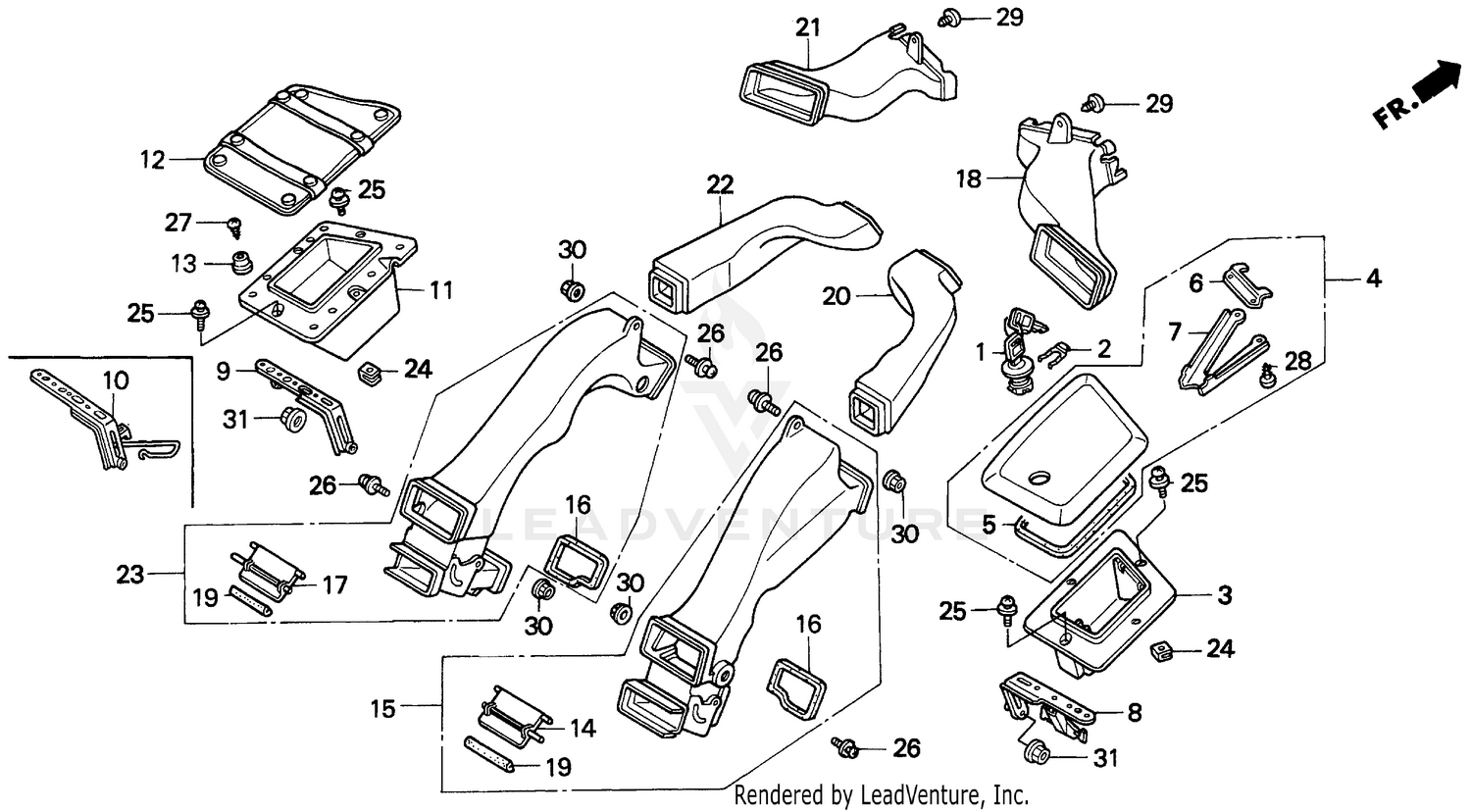

Air Duct Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK, FILLER LID
37220-439-007
|
$62.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, LOCK KEY SETTING
37222-463-000
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
POCKET, R.
64220-MN5-000
|
$79.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER ASSY., R. POCKET *NH68* (BLACK GLOSS 10)
64225-MZ3-000ZJ
Superseded by 64225-MZ3-000ZK
|
$270.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER ASSY., R. POCKET *NH68* (BLACK GLOSS 10)
64225-MZ3-000ZK
|
$270.69 | ||
|
Unavailable |
|||
|
#5
RUBBER, R. POCKET COVER
64227-MN5-000
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, R. POCKET COVER
64228-MN5-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SUPPORT
64229-MN5-000
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, R. SHELTER SETTING
64234-MZ3-000
|
$85.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, L. SHELTER SETTING
64235-MN5-010
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
POCKET, L.
64250-MN5-000
|
$95.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, L. POCKET (TYPE9)
64255-MN5-000ZK
|
$54.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOOK, POCKET
64259-MN5-000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
LID, R. AIR DUCT
64264-MN5-000
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUCT ASSY., R. (LOWER)
64271-MN5-000
|
$79.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, HOT AIR
64276-MN5-300
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
LID, L. AIR DUCT
64274-MN5-000
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUCT, R. AIR (UPPER)
64275-MN5-000
|
$46.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, AIR DUCT LID
64273-MN5-300
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUCT, R. AIR (LOWER)
64278-MN5-000
|
$42.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUCT, L. AIR (UPPER)
64283-MN5-000
|
$44.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUCT, L. AIR (LOWER)
64288-MN5-000
|
$42.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUCT ASSY., L. (LOWER)
64289-MN5-000
|
$78.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, PLATE (5MM)
90305-MN5-000
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (5X20)
93891-05020-07
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X12)
93894-04012-08
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (4X10)
93901-24280
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, TAPPING (5X12)
93903-25280
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING (4X10)
93903-34220
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, FLANGE (4MM)
94050-04080
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FLANGE (6MM)
94050-06080
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
