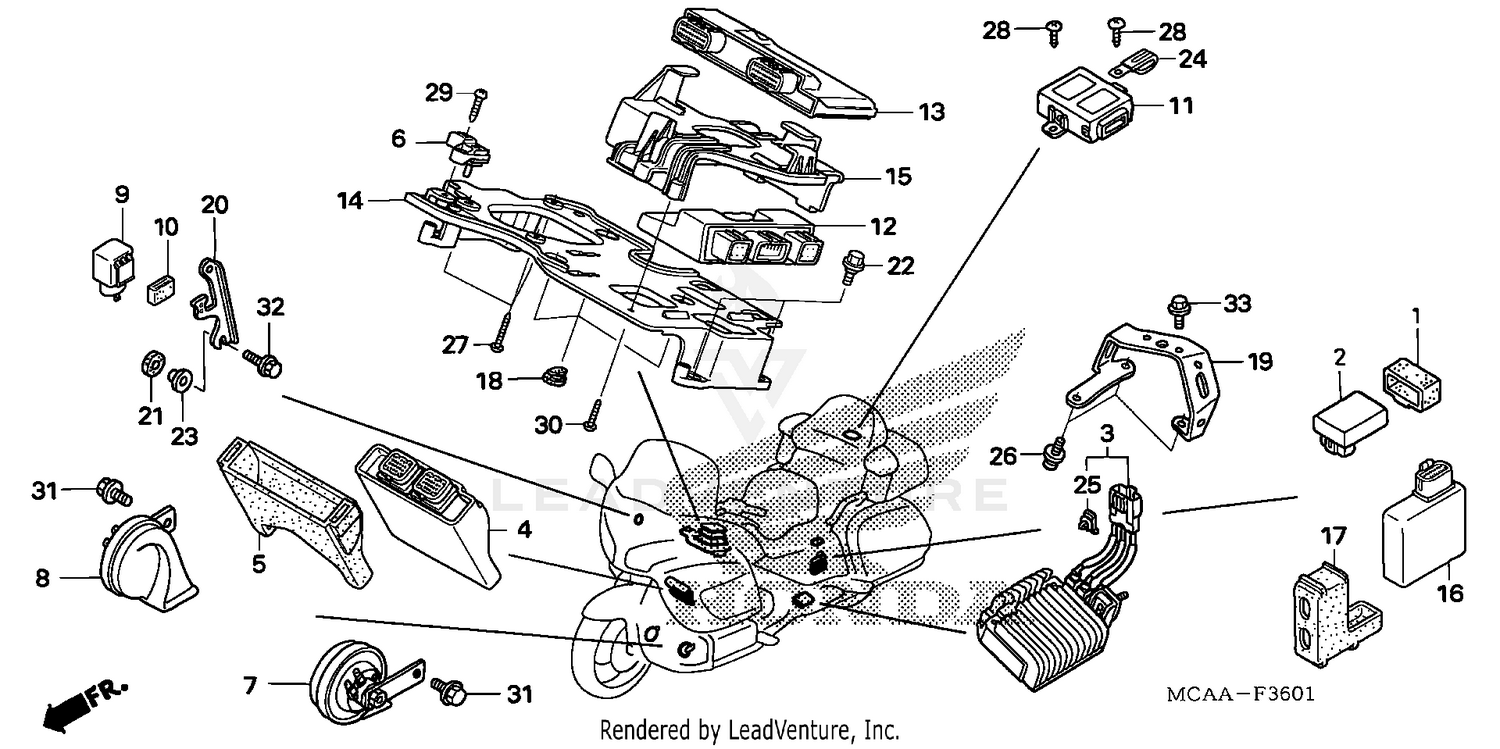

Control Unit (gl1800'06-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, REVERSE REGULATOR
30401-MCA-000
|
$6.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
REGULATOR, REVERSE
31710-MCA-A61
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESISTOR ASSY., REVERSE
36280-MCA-A60
Superseded by 36280-MCA-A61
|
$236.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESISTOR ASSY., REVERSE
36280-MCA-A61
|
$236.47 | ||
|
Unavailable |
|||
|
#4
CONTROLLER, AUTO CRUISE
36700-MCA-S41
|
$657.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
CONTROLLER, AUTO CRUISE
36700-MCA-003
Superseded by 36700-MCA-S41
|
$657.75 | ||
|
Unavailable |
|||
|
#5
CUSHION, CONTROLLER UNIT
36705-MCA-A61
|
$244.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
SENSOR ASSY., MAP
37830-MEL-003
|
$147.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
HORN ASSY. (HIGH)
38110-MCA-003
|
$96.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
HORN ASSY. (LOW)
38120-MCA-003
|
$96.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
RELAY, TURN SIGNAL (MITSUBA)
38301-MEG-000
|
$44.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
38306-KK4-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
CONTROL UNIT, TRUNK LOCK & OPEN
38380-MCA-A41
|
$141.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
PGM-FI UNIT
38770-MCA-A63
|
$1,209.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, PGM-FI UNIT
38771-MCA-A60
|
$71.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY A, PGM-FI UNIT
38772-MCA-A60
|
$73.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
HEATER UNIT, SEAT
39305-MCA-A71
|
$116.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, SEAT HEATER UNIT
39310-MCA-A71
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, HOLE
50318-041-600
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, REVERSE RESISTOR
50331-MCA-A60
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, STAY (UPPER)
64513-MCA-A60
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, SEAT HINGE
77218-GB2-720
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FR. FENDER FIXING
90106-MM9-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6X20)
90512-MBY-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
91411-679-000
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, CONNECTOR (BROWN)
91556-SP0-003
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (5X8)
93892-05008-08
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (4X20)
93903-14580
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, TAPPING (5X12)
93903-25280
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING (5X16)
93903-25310
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TAPPING (4X12) (PO)
93913-24380
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (8X10)
95701-08010-08
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
