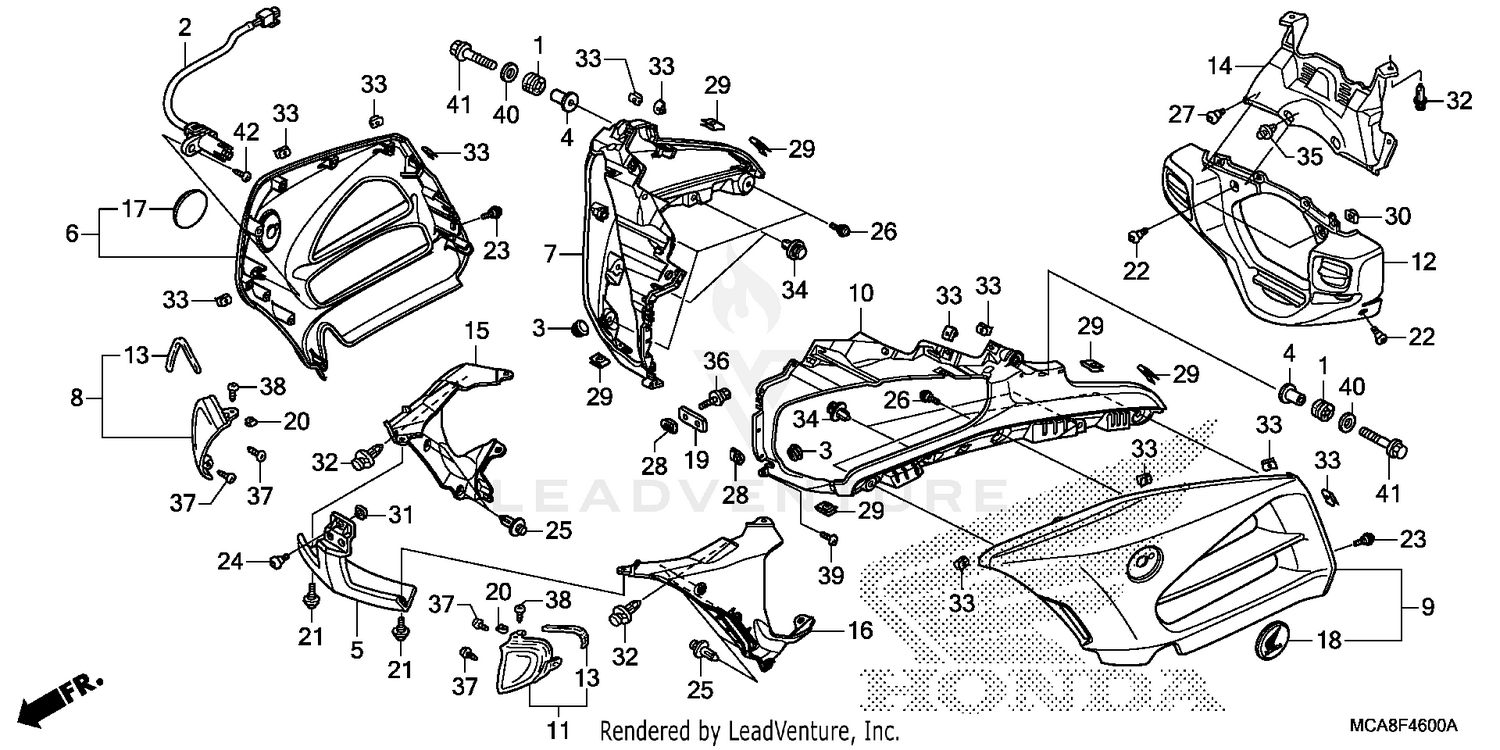

2014 Honda GOLD WING AUDIO COMFORT NAVI XM ABS COWL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENSOR, TEMPERATURE (OPEN AIR)
37890-MCA-S41
|
$67.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, HANDLE COVER (LOWER)
53125-174-670
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, FR. FENDER SETTING
61101-MN4-000
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
COWL, FR. CENTER *PB308P* (PEARL SPENCER BLUE)
64216-MCA-000YT
|
$52.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
COWL, FR. CENTER *R342C* (CANDY PROMINENCE RED)
64216-MCA-000YS
|
$52.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
COWL SET, R. MIDDLE *R342C* (WL) (CANDY PROMINENCE RED)
64280-MCA-S40ZE
|
$283.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
COWL SET, R. MIDDLE *PB308P* (WL) (PEARL SPENCER BLUE)
64280-MCA-S40ZF
|
$283.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
COWL, R. SIDE *PB308P* (PEARL SPENCER BLUE)
64282-MCA-S40ZK
|
$488.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
COWL, R. SIDE *R342C* (CANDY PROMINENCE RED)
64282-MCA-S40ZJ
|
$499.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, R. HEADLIGHT SIDE *NH303M* (MAT AXIS GRAY METALLIC)
64286-MCA-S40ZA
|
$32.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
COWL SET, L. MIDDLE *R342C* (WL) (CANDY PROMINENCE RED)
64290-MCA-S40ZF
|
$300.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
COWL SET, L. MIDDLE *PB308P* (WL) (PEARL SPENCER BLUE)
64290-MCA-S40ZG
|
$300.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
COWL, L. SIDE *PB308P* (PEARL SPENCER BLUE)
64292-MCA-S40ZK
|
$488.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
COWL, L. SIDE *R342C* (CANDY PROMINENCE RED)
64292-MCA-S40ZJ
|
$488.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, L. HEADLIGHT SIDE *NH303M* (MAT AXIS GRAY METALLIC)
64296-MCA-S40ZA
|
$32.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
COWL, FR. (LOWER) *NH167MU* (IRON NAIL SILVER METALLIC-U)
64302-MCA-S40ZA
|
$318.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, AIR DUCT
64448-MCA-A60
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
COWL, CENTER (INNER)
64501-MCA-A60
|
$72.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
COWL, R. (INNER)
64502-MCA-S40
|
$89.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
COWL, L. (INNER)
64503-MCA-S40
|
$89.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
BADGE, R. PRODUCT
64503-MFL-000
|
$43.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
BADGE, L. PRODUCT
64508-MFL-000
|
$43.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, HEADLIGHT (LOWER)
64517-MCA-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CENTER PANEL
66871-611-000
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, SPECIAL (5X12)
90105-MB1-000
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (6X11)
90106-KY2-701
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, SPECIAL (5X12)
90106-MBY-000
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (6X17)
90107-MM5-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET, PUSH
90116-MCS-G00
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5X13)
90117-MN5-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, SPECIAL (6MM)
90137-MCA-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, AIR SPOILER CLIP
90305-SM4-000
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SPRING (5MM)
90320-GE2-760
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SPRING (6MM)
90320-MM5-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SPRING (6MM)
90320-747-000
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, CLIP (5MM)
90677-KAN-961
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, FENDER (INNER)
91512-SX0-003
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP, PANEL FIXING *NH1* (BLACK)
91549-MW0-790ZA
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT-WASHER (6X30)
93404-06030-08
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, TAPPING (4X10)
93903-24280
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, TAPPING (4X12)
93903-24380
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, TAPPING (5X16)
93903-25380
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLAIN (6MM)
94103-06000
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, TAPPING (4X12)
93903-24380
|
$0.88 | ||
|
Unavailable |
|||
