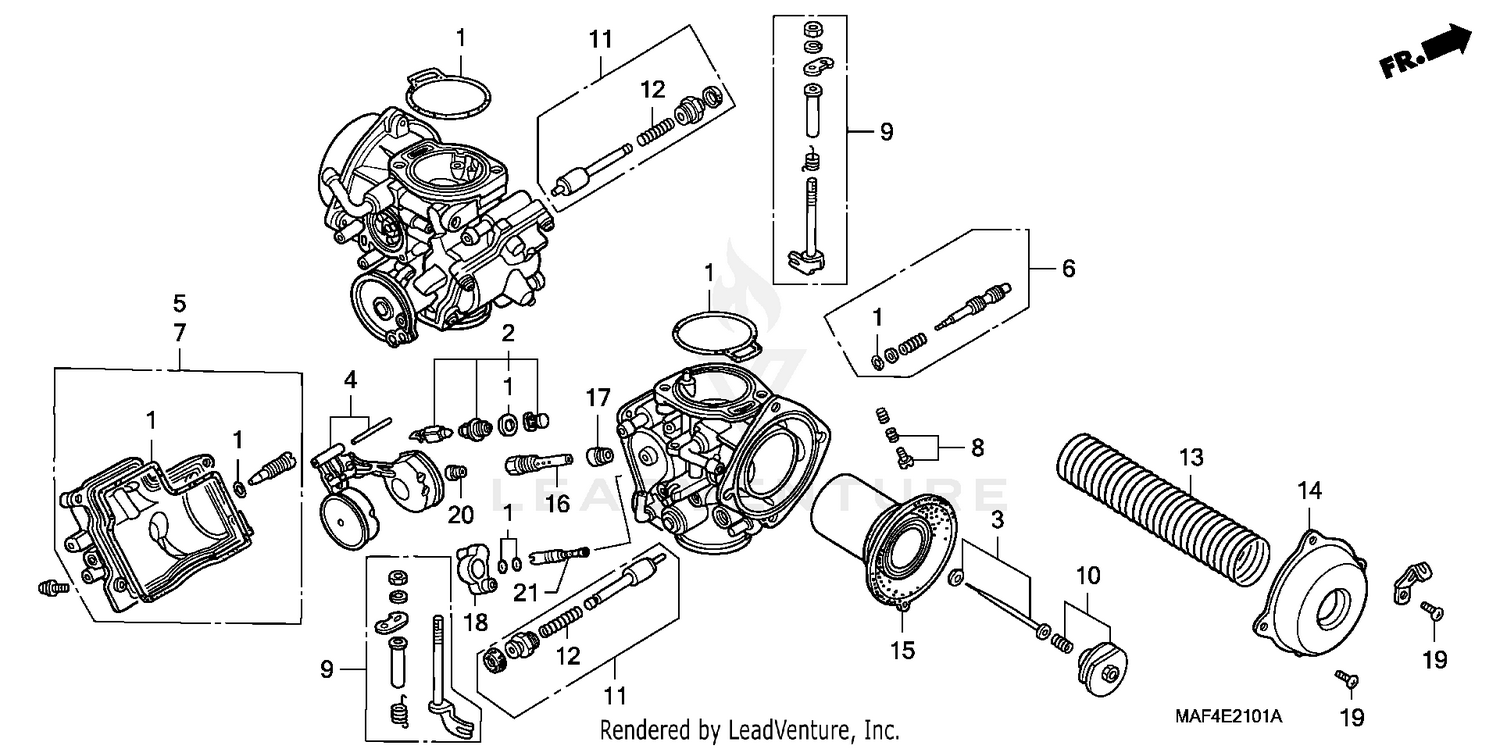

1995 Honda GOLD WING INTERSTATE CARBURETOR COMPONENTS OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MAM-000
Superseded by 16010-MAM-A60
|
$34.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-MAM-000
|
$78.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET
16012-MY4-601
|
$35.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-MAM-000
|
$55.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-MAM-000
Superseded by 16015-MAM-A60
|
$116.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET
16016-MAM-000
Superseded by 16016-MZ8-A70
|
$25.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAMBER SET, FLOAT
16023-MAM-000
Superseded by 16023-MAM-A60
|
$116.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET C
16029-MB0-671
|
$27.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER SET, STARTER
16031-MN5-014
|
$52.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE SET
16037-MN5-004
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE SET, STARTER
16046-MAM-000
|
$80.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION COIL
16050-MT2-004
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION COIL
16051-MT8-000
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
TOP
16107-MM8-004
|
$47.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON, VACUUM
16111-MY4-000
|
$190.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, NEEDLE JET
16165-MY4-000
|
$30.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, JET
16168-MT8-000
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, JET
16168-MY4-000
|
$15.22 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN (4X10)
93500-04010-0A
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (4X10)
93500-04010-1A
Superseded by 93500-04010-0A
|
$0.88 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (#148)
99101-GHB-1480
Superseded by 99102-MCG-1480
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#148)
99101-393-1480
Superseded by 99102-MCG-1480
|
$11.38 | ||
|
Unavailable |
|||
|
#21
JET, SLOW (#65)
99103-MT8-0650
|
$25.45 | ||
|
Available to order. Add to View Price |
|||
