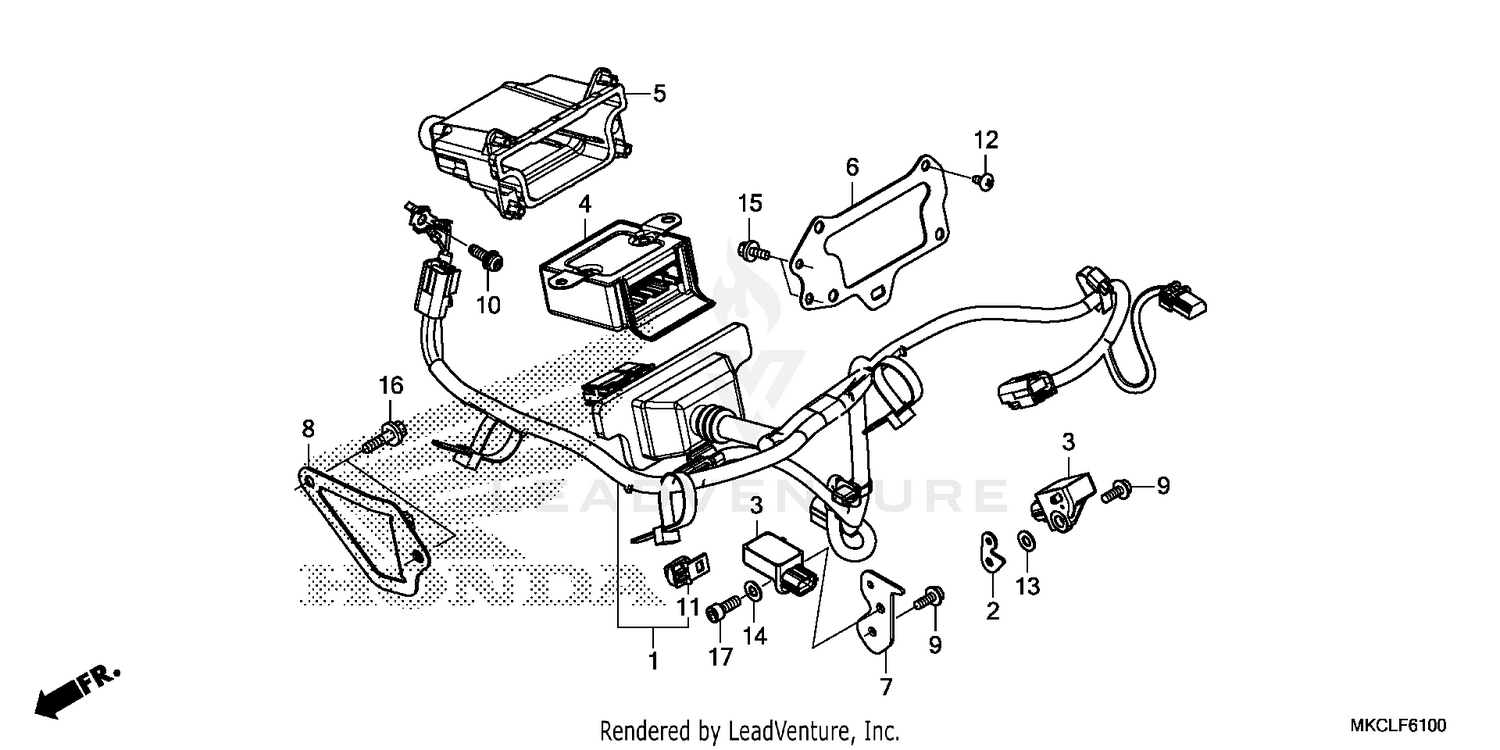

Airbag Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-HARNESS, AIRBAG
32191-MKC-A30
|
$383.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, G-SENSOR
50360-MKC-A30
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
G-SENSOR ASSY.
77930-MKC-A31
|
$118.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
AIRBAG UNIT (DENSO)
77960-MKC-A31
|
$567.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, SRS UNIT
77961-MKC-A30
|
$42.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, SRS UNIT
77963-MKC-A30
|
$17.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, G-SENSOR
77964-MKC-A30
|
$9.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, SRS UNIT MOUNTING
77966-MKC-A30
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, TORX (6X16)
90106-MCA-A80
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, TORX GROUND (6X20)
90137-S84-A01
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (5X12)
93903-25220
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.63 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.63 | ||
|
Unavailable |
|||
|
#14
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.63 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (6X16)
96600-06016-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
