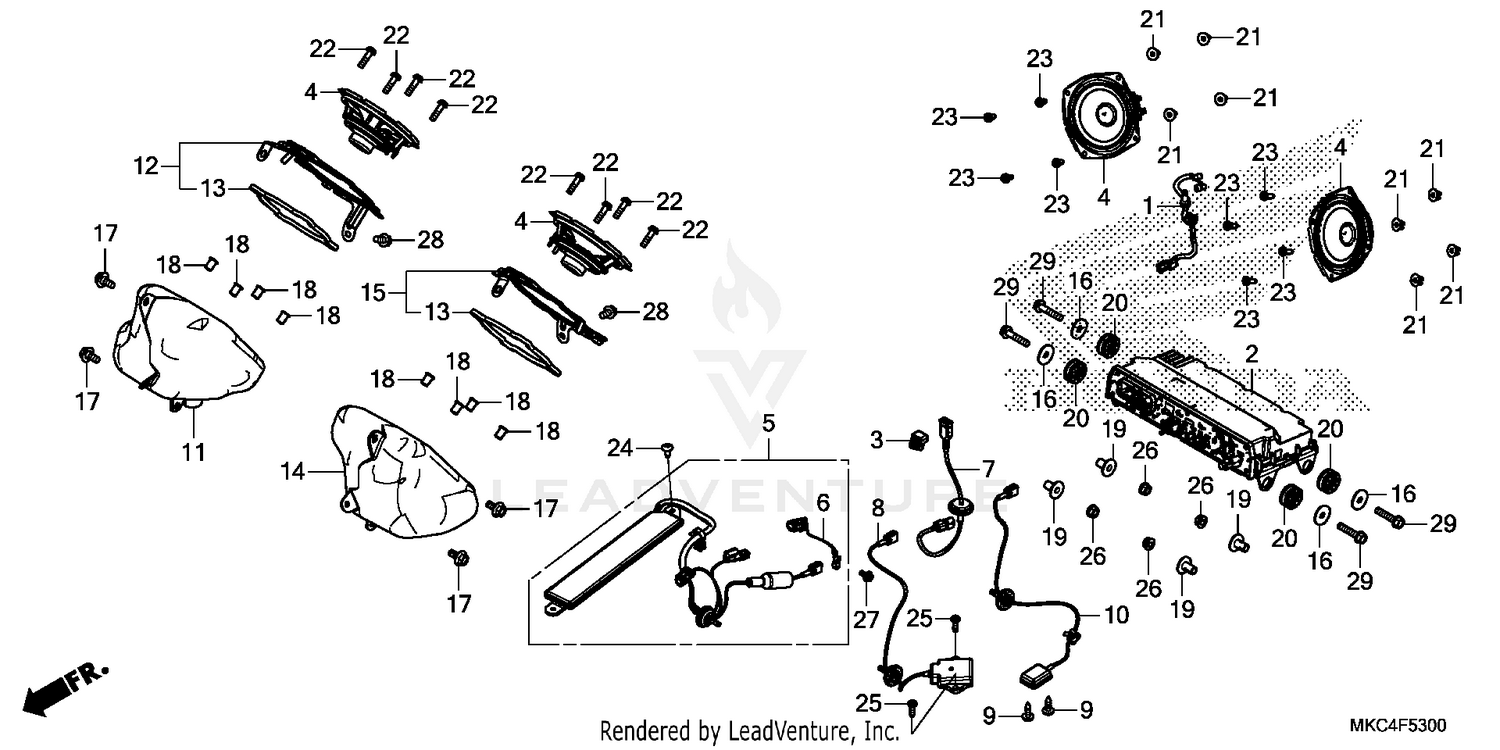

Audio Unit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-HARNESS, SPEAKER
32145-MKC-A00
|
$34.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
AUDIO UNIT
39110-MKC-A31
|
$4,615.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, USB CONNECTOR HOLDER (A) (L. SIDE ONLY)
39115-TK6-003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPEAKER UNIT
39130-MKC-A01
|
$213.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
ANTENNA ASSY., RADIO
39150-MKC-A01
|
$213.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUB-HARNESS, RADIO ANTENNA GROUND
39151-MKC-A01
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
ANTENNA ASSY., BLUETOOTH (RR)
39213-MKC-A01
|
$93.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN (3X6)
39221-MCA-S51
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
ANTENNA ASSY., GPS
39230-MKC-A01
|
$232.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOX, R. SPEAKER
64181-MKC-A00
|
$74.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, R. SPEAKER BOX
64183-MKC-A00
|
$31.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, SPEAKER
64184-MKC-A00
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOX, L. SPEAKER
64191-MKC-A00
|
$71.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, L. SPEAKER BOX
64193-MKC-A00
|
$31.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SEAT MOUNTING
77302-124-000
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6MM)
90111-162-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR (6.3X14)
90503-MKC-A00
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER, AUDIO MOUNT
90505-MKC-A00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET, SCREW (5MM)
90661-SJ8-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (5X20)
93892-05020-07
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (5X12)
93901-25280
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING (5X12)
93903-25210
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING (5X16)
93903-25310
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)
95701-06010-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X30)
95801-06030-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
