1995 Honda MAGNA Swingarm + Drive Chain OEM Parts

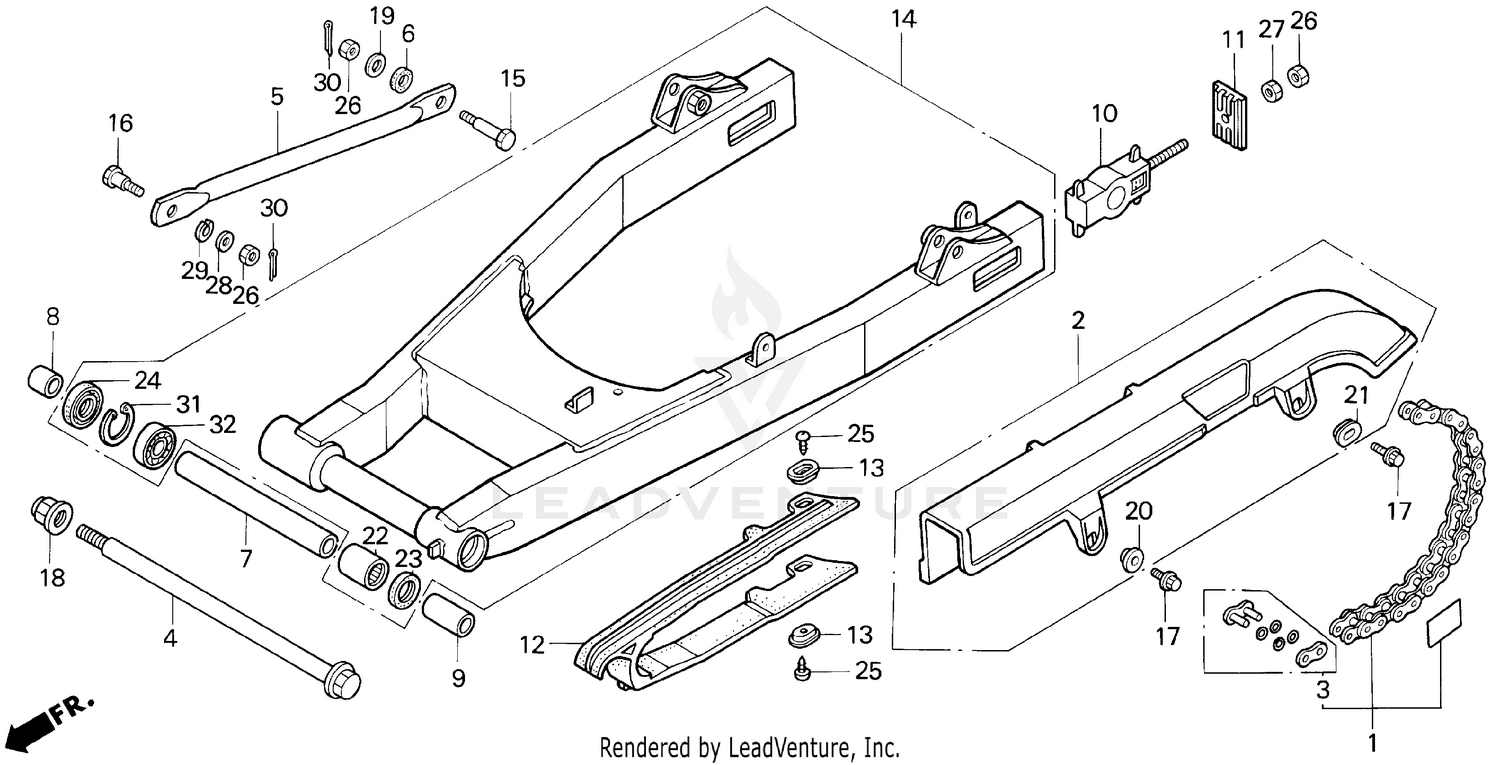

Swingarm + Drive Chain Diagram

Item	MSRP	Qty
#1 CHAIN SET, DRIVE (RK50M FOZ1) (102L-120L) (RK EXCEL) 06405-MZ5-405 Superseded by 06405-MZ5-P20	$197.03
Available to order. Add to View Price
#1 CHAIN, DRIVE (50V4-120ZB) (DAIDO) 06405-MZ5-407 Superseded by 40540-MZ5-305	$359.43
Available to order. Add to View Price
#1 CHAIN, DRIVE (50V4-120ZB) (DAIDO) 40540-MZ5-305	$359.43
Unavailable
#2 CASE, DRIVE CHAIN 40510-MZ5-000	$155.29
Available to order. Add to View Price
#3 MASTER LINK 40535-MW0-305	$5.66
Available to order. Add to View Price
#3 MASTER LINK 40535-MW0-306	$5.98
Available to order. Add to View Price
#4 AXLE, RR. WHEEL 42301-KBG-000	$31.44
Available to order. Add to View Price
#5 ARM, RR. BRAKE STOPPER 43431-MZ5-000	$14.52
Available to order. Add to View Price
#6 RUBBER, STOPPER ARM 43434-ME1-670	$4.17
Available to order. Add to View Price
#7 COLLAR, PIVOT DISTANCE 52102-MM5-000	$27.73
Available to order. Add to View Price
#8 COLLAR B, SWINGARM PIVOT 52105-MM2-670	$9.04
Available to order. Add to View Price
#9 COLLAR B, PIVOT 52106-ML4-000	$23.90
Available to order. Add to View Price
#10 COLLAR, CHAIN TENSIONER 52120-MJ0-000 Superseded by 52120-MJ0-010	$52.85
Available to order. Add to View Price
#10 COLLAR, CHAIN TENSIONER 52120-MJ0-010	$52.85
Unavailable
#11 PLATE, CHAIN TENSIONER 52121-MJ0-000	$25.82
Available to order. Add to View Price
#12 SLIDER, CHAIN 52170-MZ5-000	$40.53
Available to order. Add to View Price
#13 WASHER, CHAIN SLIDER 52171-KR6-000	$2.82
Available to order. Add to View Price
#14 SWINGARM SET 52200-MZ5-305	$800.45
Available to order. Add to View Price
#15 BOLT, RR. BRAKE STOPPER 90127-393-000	$5.83
Available to order. Add to View Price
#16 BOLT, RR. BRAKE STOPPER ARM 90133-286-000	$5.39
Available to order. Add to View Price
#17 BOLT, FLANGE (6X12) 90154-ML0-000	$2.81
Available to order. Add to View Price
#18 NUT, U (14MM) 90305-GE8-003	$4.63
Available to order. Add to View Price
#19 WASHER A, HANDLE HOLDER SETTING 90505-425-000 Superseded by 90524-030-000	$1.51
Available to order. Add to View Price
#19 WASHER A, HANDLE HOLDER SETTING 90524-030-000	$1.51
Unavailable
#20 WASHER (6X20) 90512-KF9-900	$3.67
Available to order. Add to View Price
#21 WASHER (6X9) 90513-405-000	$2.40
Available to order. Add to View Price
#21 WASHER (6X9) 90513-428-900 Superseded by 90513-405-000	$2.40
Unavailable
#22 BEARING, NEEDLE (THOMPSON) 91071-MJ0-003 Superseded by 91071-MJ0-004	$42.70
Available to order. Add to View Price
#23 OIL SEAL (22X31X5) (ARAI) 91205-965-003	$6.96
Available to order. Add to View Price
#24 DUST SEAL (22X35X7) (ARAI) 91213-MB2-003	$8.97
Available to order. Add to View Price
#24 DUST SEAL (22X35X7) (ARAI) 91213-MB2-006 Superseded by 91213-MB2-003	$8.97
Unavailable
#25 SCREW, TAPPING (5X12) 93901-25280	$0.90
Available to order. Add to View Price
#26 NUT, HEX. (8MM) 94001-08000-0S	$1.32
Available to order. Add to View Price
#27 NUT, HEX. (8MM) 94030-08000	$1.07
Available to order. Add to View Price
#28 WASHER, PLAIN (8MM) 94101-08000	$0.81
Available to order. Add to View Price
#29 WASHER, SPRING (10MM) 94111-10000	$1.35
Available to order. Add to View Price
#30 PIN, COTTER (2.0X22) 94201-20180 Superseded by 94201-29220	$1.03
Unavailable
#30 PIN, COTTER (2.0X22) 94201-20200 Superseded by 94201-29220	$1.03
Unavailable
#30 PIN, SPLIT (2.0X22) 94201-20220	$1.03
Unavailable
#30 PIN, COTTER (2.0X35) 94201-20250 Superseded by 94201-20350	$1.03
Available to order. Add to View Price
#30 PIN, COTTER (2.0X35) 94201-20280 Superseded by 94201-20350	$1.03
Unavailable
#30 PIN, COTTER (2.0X35) 94201-20320 Superseded by 94201-20350	$1.03
Unavailable
#30 PIN, SPLIT (2.0X35) 94201-20350	$1.03
Unavailable
#30 PIN, COTTER (2.0X22) 94201-29220	$1.03
Unavailable
#31 CIRCLIP (INNER) (35MM) 94520-35000	$1.93
Available to order. Add to View Price
#32 BEARING, RADIAL BALL (6202) 96100-62020-10	$16.80
Available to order. Add to View Price
