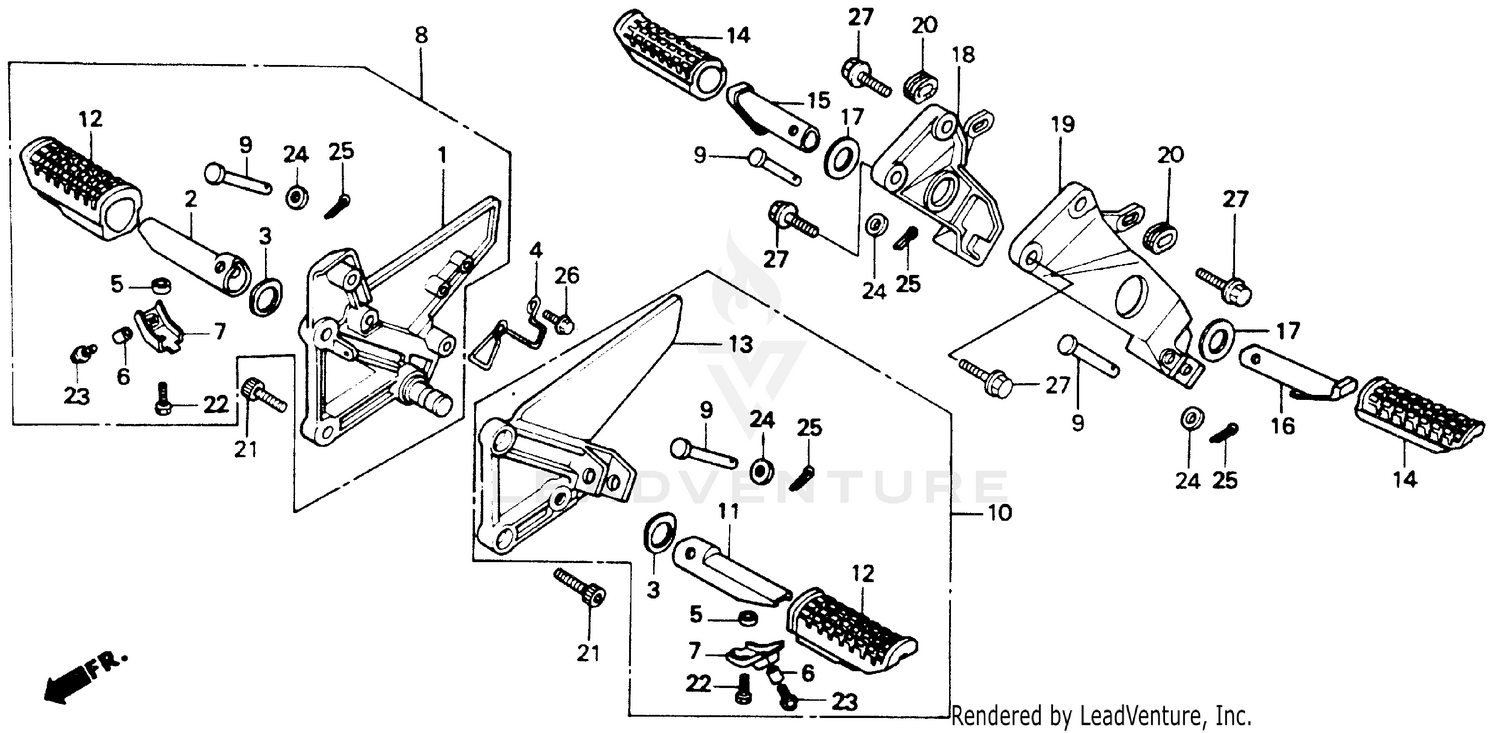

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, R. MAIN STEP (NOT AVAILABLE)
50600-MN8-670
|
$109.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, R. MAIN STEP
50612-KM3-000
|
$21.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, MAIN STEP SIDE
50614-KE8-000
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, FOOT (NOT AVAILABLE)
50615-MN8-000
|
$17.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR (6.5X11X3)
50618-KE8-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR (8.3)
50618-MN8-000
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, MAIN STEP (LOWER) (NOT AVAILABLE)
50619-MJ6-000
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR ASSY., R. MAIN STEP (NOT AVAILABLE)
50630-MN8-670
|
$112.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, STEP BAR JOINT (SOURCE: VINTAGE PARTS INC.)
50639-MB2-000
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR ASSY., L. MAIN STEP (NOT AVAILABLE)
50640-MN8-670
|
$85.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR, L. MAIN STEP
50643-KM3-000
|
$17.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, MAIN STEP
50661-MF2-000
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, L. MAIN STEP (NOT AVAILABLE)
50700-MN8-670
|
$109.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, PILLION STEP
50710-KE8-000
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAR, R. PILLION STEP (NOT AVAILABLE)
50711-KN6-940
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR, L. PILLION STEP (SOURCE: VINTAGE PARTS INC.)
50712-KN6-940
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, PILLION STEP SIDE
50715-KE8-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, R. PILLION STEP (NOT AVAILABLE)
50750-MN8-740
|
$106.64 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, L. PILLION STEP (NOT AVAILABLE)
50760-MN8-740
|
$106.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET, SIDE COVER
83551-MA6-000
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (8X25)
90102-MN8-700
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. (6X12)
92000-06012-0A
Superseded by 92101-06012-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X12)
92100-06012
Superseded by 92101-06012-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X12) BOLT, FLANGE (6X12)
92101-06012-0A
|
$1.40 | ||
|
Unavailable |
|||
|
#23
BOLT, CAP (8X18)
92501-08018-0A
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (8MM)
94102-08000
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (1.6X25)
94201-16250
|
$1.02 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X28)
95701-08028-00
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
