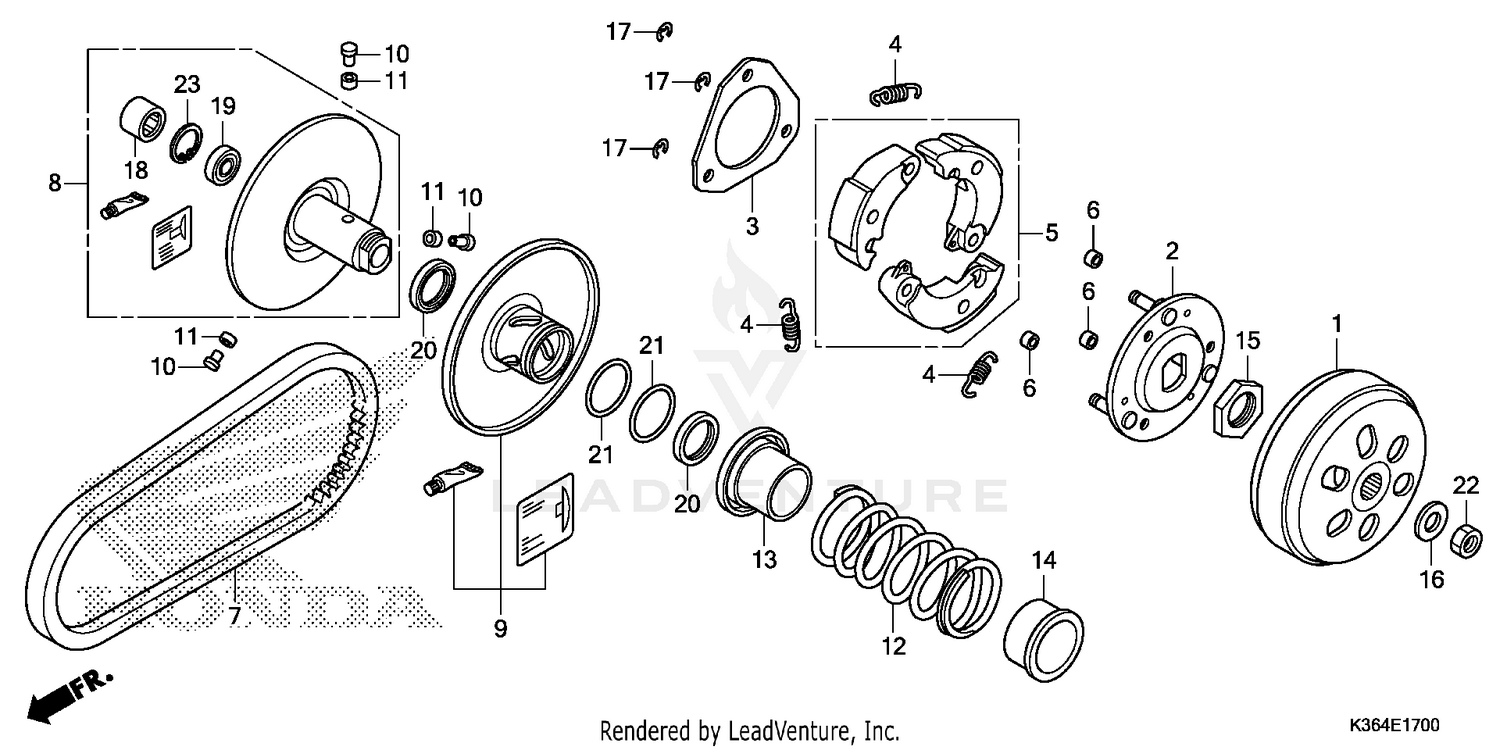

Driven Face Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER
22100-KWN-900
|
$28.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, DRIVE
22350-GFM-900
|
$46.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, DRIVE
22350-KVB-900
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, CLUTCH SIDE
22361-KVB-900
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CLUTCH
22401-KWN-640
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
WEIGHT SET, CLUTCH
22535-K35-V00
|
$39.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, CLUTCH DAMPER
22804-148-000
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
BELT, DRIVE
23100-K36-J01
|
$63.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
FACE SET, DRIVEN
23205-K35-V00
|
$55.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
FACE SET, MOVABLE DRIVEN
23224-K36-J00
|
$45.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, ROLLER GUIDE
23225-KSY-900
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLER, GUIDE
23226-GFM-900
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLER, GUIDE
23226-KVB-900
Superseded by 23226-GFM-900
|
$2.05 | ||
|
Unavailable |
|||
|
#12
SPRING, DRIVEN FACE
23233-K36-J00
|
$16.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, SEAL
23237-K35-V00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, SPRING
23238-KVB-900
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPECIAL (28MM)
90202-KN7-670
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (12.2X29X2.5)
90441-GY6-940
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP (7MM)
90605-166-720
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, NEEDLE (20X29X18) (NTN)
91001-KCW-003
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, NEEDLE (20X29X18) (SCHAEFFLER)
91109-KVY-902
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6902U) (TOYO)
91002-GA7-701
|
$28.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (6902U) (NSK)
91009-KVY-961
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, DRIVEN FACE (34X41X4)
91211-KN7-671
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (38.8X1.9)
91384-KVB-900
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, HEX. (12MM)
94030-12200
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (INNER) (28MM)
94520-28000
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
