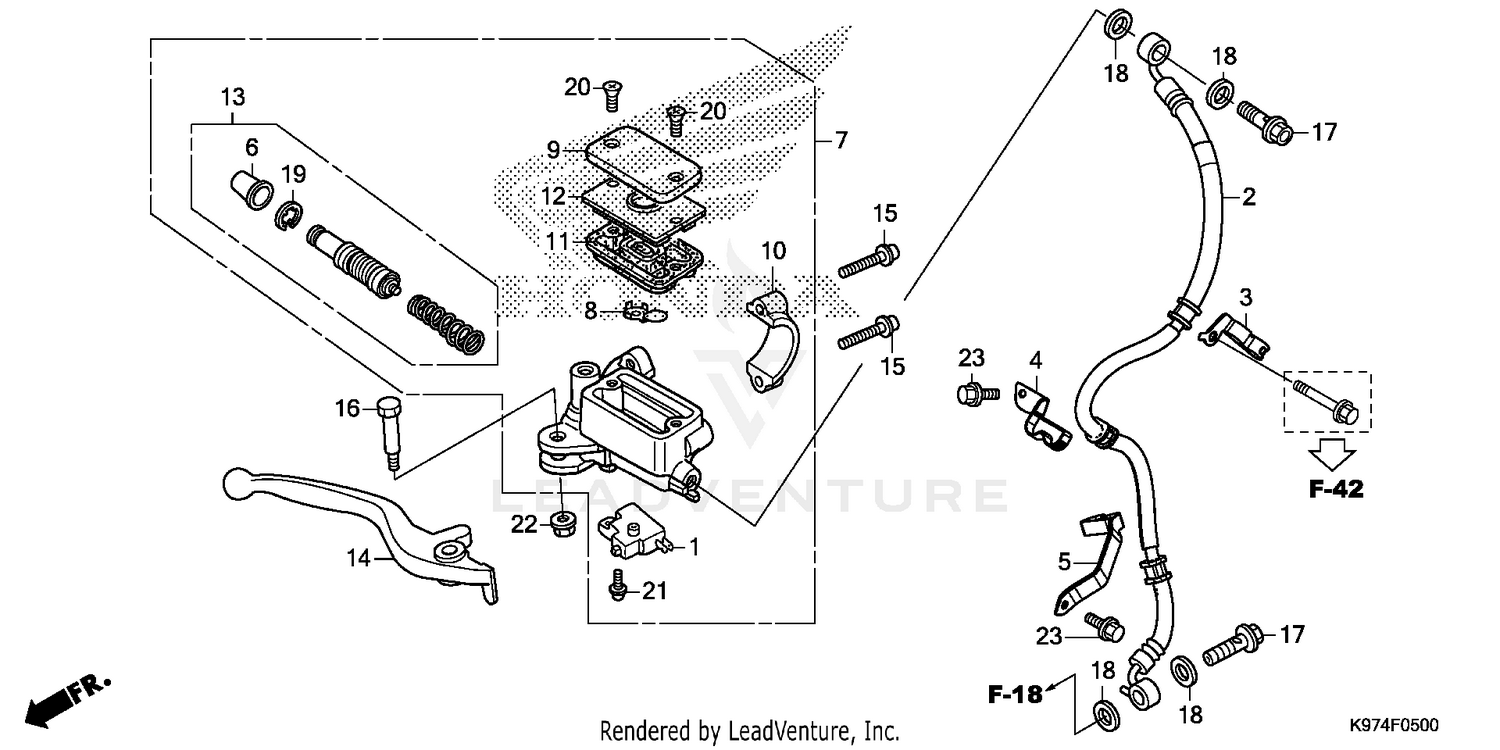

Front Brake Master Cylinder (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45126-K96-J01
|
$33.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP A, FR.
45156-K97-T00
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP B, FR.
45157-K97-T00
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP C, FR.
45158-K96-V00
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT
45504-410-003
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
45510-K35-V01
Superseded by 45510-K36-305
|
$71.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
45510-K36-305
|
$71.11 | ||
|
Unavailable |
|||
|
#8
PROTECTOR
45512-MA6-006
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, MASTER CYLINDER
45513-HA2-006
|
$31.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, MASTER CYLINDER
45517-166-006
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM
45520-GE2-006
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM
45521-K21-901
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, R. HANDLEBAR
53175-KWN-901
|
$35.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE SOCKET (6X22)
90101-KWN-900
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HANDLE LEVER PIVOT
90114-KGH-900
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, OIL BOLT
90545-300-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
90651-MA5-671
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.90 | ||
|
Unavailable |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-07
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.35 | ||
|
Unavailable |
|||
|
#22
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
