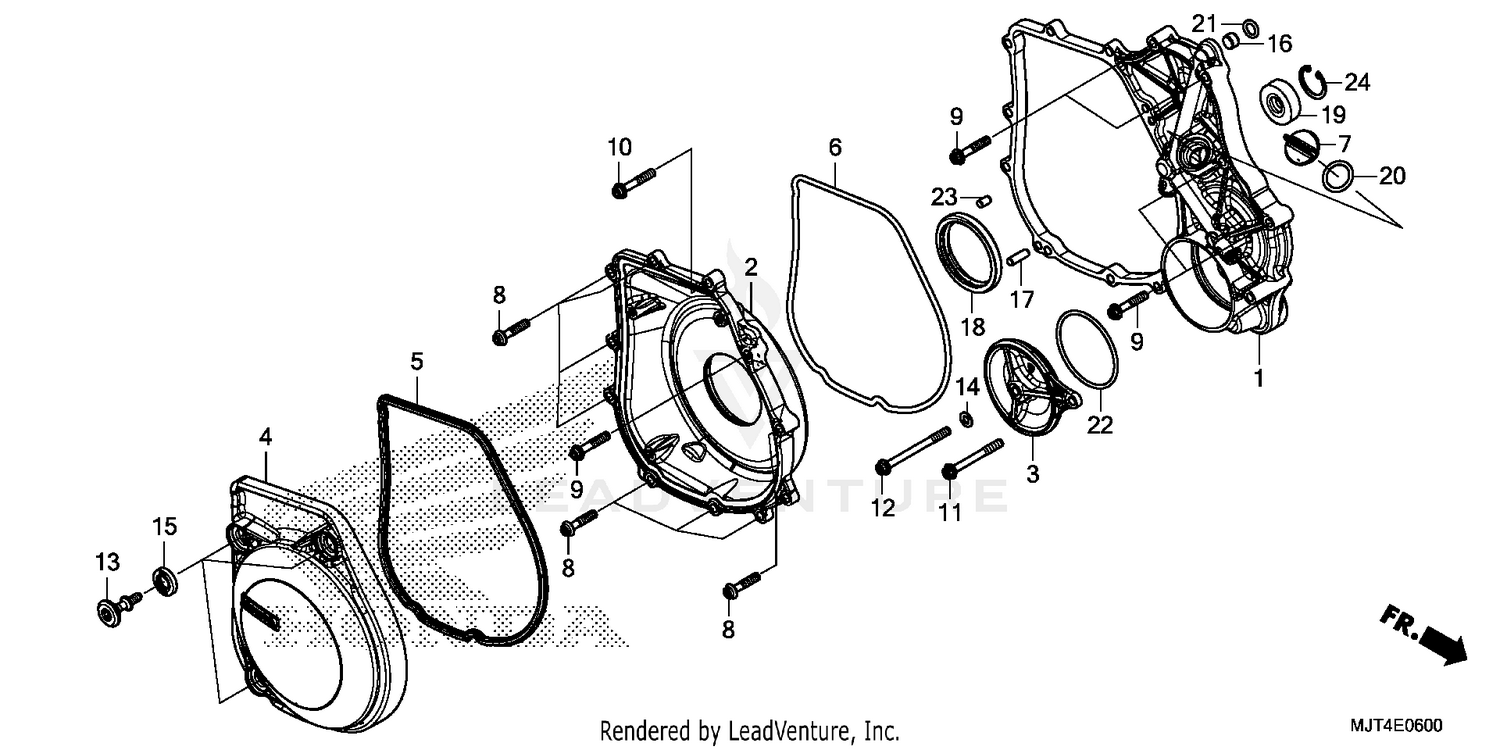

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R.
11330-MJT-E00
|
$11,098.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, CLUTCH
11335-MJT-E00
|
$7,852.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, STARTER
11336-MJT-E00
|
$3,166.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CLUTCH (OUTER)
11339-MJT-E00
|
$1,524.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CLUTCH COVER (OUTER)
11394-MJT-E00
|
$90.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING, CLUTCH COVER
11396-MJT-E00
|
$101.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL FILLER
15611-KA4-710
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE TORX (6X28)
90038-MJT-E00
|
$61.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE TORX (6X32)
90039-MJT-E00
|
$61.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE TORX (6X35)
90040-MJT-E00
|
$61.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE TORX (6X55)
90047-MJT-E00
|
$67.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE TORX (6X70)
90050-MJT-E00
|
$67.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CLUTCH COVER (OUTER)
90053-MJT-E00
|
$169.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, MOUNTING
90543-MV9-670
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (11X7)
90703-MJT-E00
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL (6X19)
91101-KF0-000
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL, SPECIAL (54X66X8.5)
91201-MJT-E01
|
$73.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (10X25X5.7)
91203-MJT-E01
|
$55.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING (10.6X1.6)
91314-MJT-E00
|
$77.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (71X1.9)
91319-MJT-E00
|
$77.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN B, DOWEL (6X10)
94302-06100
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP (INNER) (26MM)
94520-26000
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
