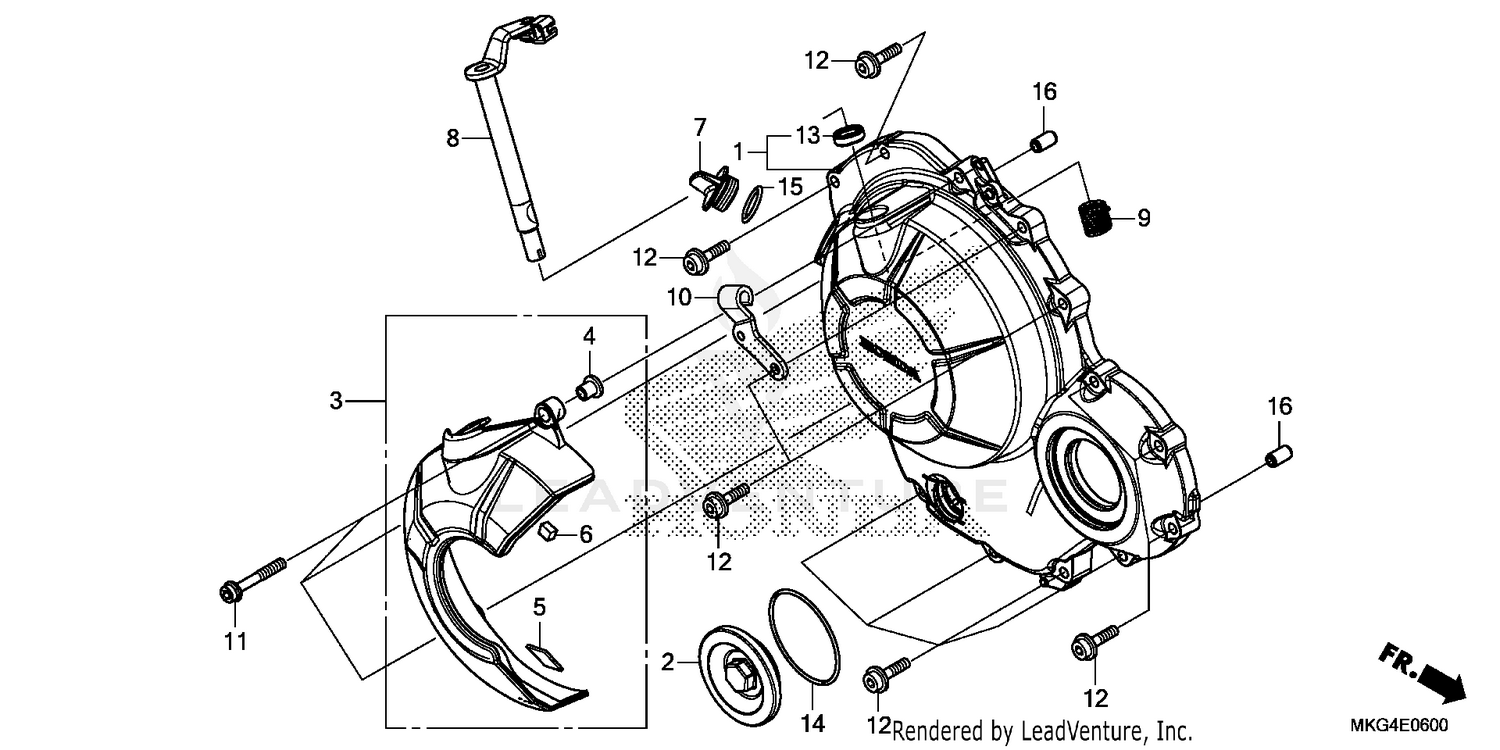

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-MJW-J80
|
$97.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP (45MM)
11332-MGZ-J00
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, R. ENGINE SIDE
11380-MKG-A00
|
$42.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR (6.5X10.5)
11382-MKG-A00
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER A, R. COVER
11387-MKG-A00
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER B, R. COVER
11391-MKG-A00
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL FILLER
15611-KA4-710
|
$16.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, CLUTCH
22810-MGZ-J00
|
$36.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH LEVER
22815-413-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
RECEIVER, CLUTCH CABLE
22821-MGZ-J00
|
$12.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE SOCKET (6X40)
90002-MJE-D00
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE SOCKET (6X28)
90003-MGZ-J00
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL (12X18X5) (ARAI)
91204-KK0-003
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (48.1X3.6) (ARAI)
91301-ML7-003
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (18X3)
91307-035-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
