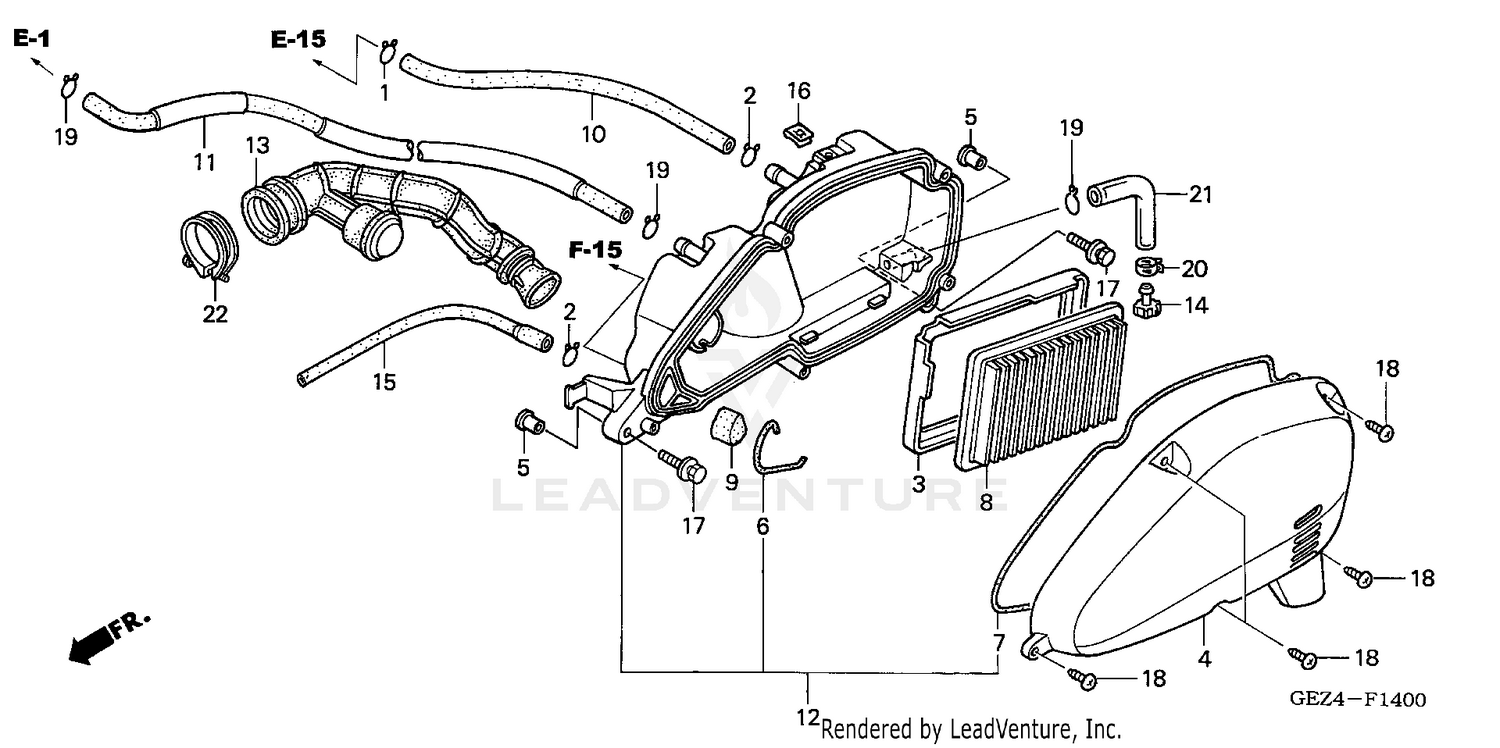

Air Cleaner ('03-'05) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, BREATHER TUBE
15772-500-010
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP, BREATHER TUBE
15772-500-013
Superseded by 15772-500-010
|
$4.69 | ||
|
Unavailable |
|||
|
#3
HOLDER, ELEMENT
17204-GET-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, AIR CLEANER HOUSING
17207-GET-000
|
$21.86 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, AIR CLEANER SETTING
17208-GR1-010
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, SUB-AIR CLEANER
17211-GET-000
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, AIR CLEANER
17212-KW6-840
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
ELEMENT, AIR CLEANER
17213-GET-000
|
$20.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
FILTER, SUB-AIR CLEANER
17214-GET-000
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE, CARBURETOR
17217-GEZ-000
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
TUBE A, BREATHER
17218-GEZ-010
|
$17.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE SUB-ASSY., AIR CLEANER
17225-GET-000
|
$25.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, AIR CLEANER CONNECTING
17253-GEZ-000
Superseded by 17253-GEZ-010
|
$33.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, AIR CLEANER CONNECTING
17253-GEZ-010
|
$33.42 | ||
|
Unavailable |
|||
|
#14
PLUG, BREATHER TUBE
17370-419-700
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE C, AIR INJECTION CONTROL VALVE
18604-GEZ-000
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CLIP (6MM)
90305-GEE-710
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X32)
93404-06032-00
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING (5X20)
93903-25480
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, TUBE (B12.5)
95002-02130
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP, TUBE (D10.5)
95002-41050-00
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULK HOSE, VINYL (8X12X8000) (8X12X160)
95003-23008-60M
|
$41.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, AIR CLEANER CONNECTING TUBE (46)
95018-46250
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
