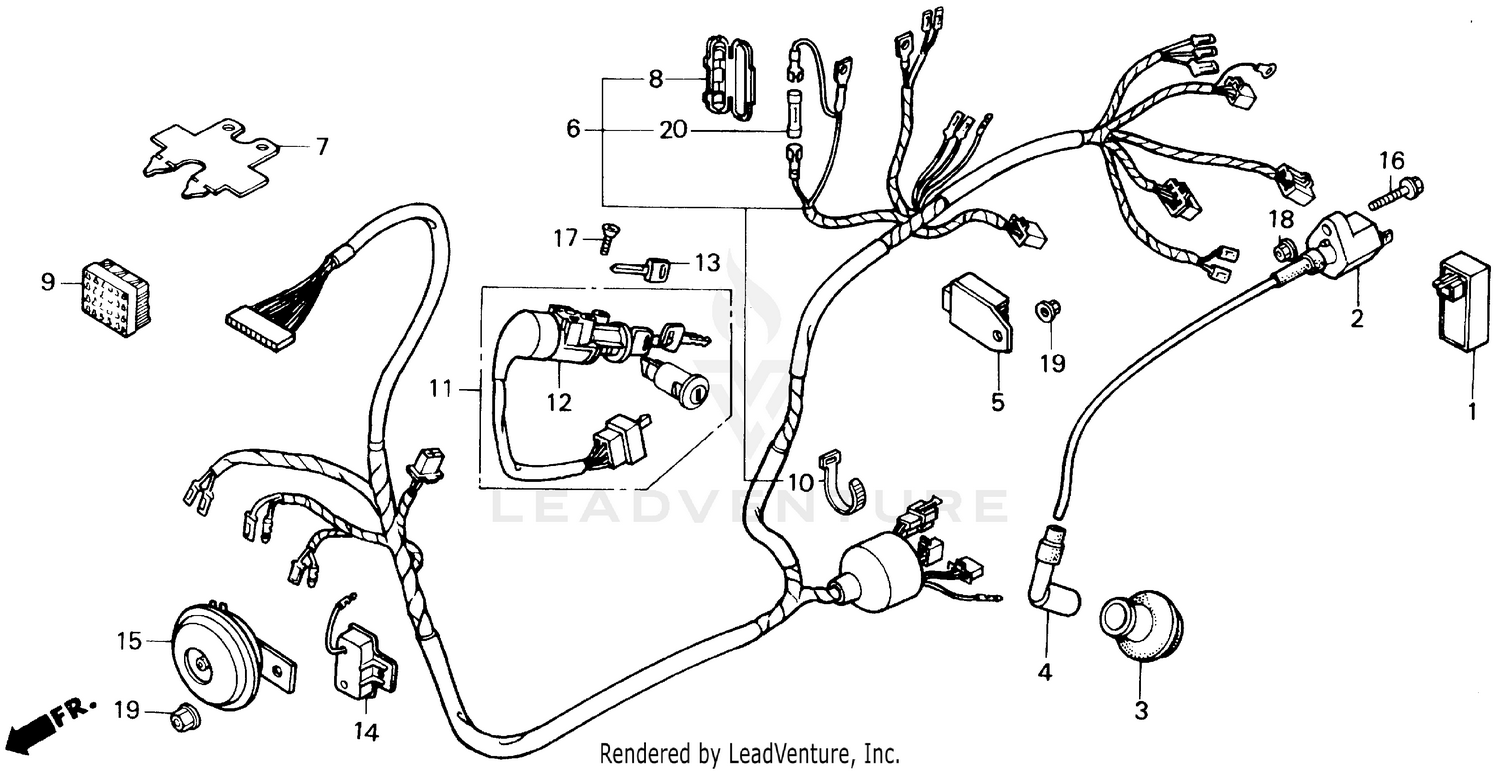

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-781
Superseded by 30410-GK8-784
|
$162.47 | ||
|
Available to order. Add to View Price |
|||
|
#1
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-782
Superseded by 30410-GK8-784
|
$162.47 | ||
|
Unavailable |
|||
|
#1
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-783
Superseded by 30410-GK8-784
|
$162.47 | ||
|
Unavailable |
|||
|
#1
MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)
30410-GK8-784
|
$162.47 | ||
|
Unavailable |
|||
|
#2
COIL, IGNITION
30510-GR1-000
Superseded by 30510-GR2-405
|
$85.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
COIL, IGNITION
30510-GR2-405
|
$85.31 | ||
|
Unavailable |
|||
|
#3
SEAL, IGNITION
30605-GR1-010
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-GN0-601
Superseded by 30700-KE6-702
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-GN0-602
Superseded by 30700-KE6-702
|
$14.58 | ||
|
Unavailable |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-KE6-702
|
$14.58 | ||
|
Unavailable |
|||
|
#5
RECTIFIER, REGULATOR (SHINDENGEN)
31600-GN2-003
Superseded by 31600-GW0-004
|
$158.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER, REGULATOR (SHINDENGEN)
31600-GW0-004
|
$158.96 | ||
|
Unavailable |
|||
|
#6
WIRE HARNESS
32100-GR1-670
|
$102.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, HARNESS
32106-GR2-000
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, FUSE (10A)
32120-383-830
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
MULTI-CONNECTOR (10X3)
32150-MG2-003
|
$12.22 | ||
|
Unavailable |
|||
|
#10
BAND B1, CABLE
32161-404-610
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET
35010-GR1-670
Superseded by 35010-GR1-671
|
$68.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET
35010-GR1-671
|
$68.32 | ||
|
Unavailable |
|||
|
#12
SWITCH ASSY., COMBINATION & LOCK
35100-GR1-670
Superseded by 35100-GR1-671
|
$49.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH ASSY., COMBINATION & LOCK
35100-GR1-671
|
$49.94 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-MM8-811
Superseded by 35121-MR1-770
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, BLANK (TYPE1)
35121-MR1-770
|
$11.13 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-402-811
Superseded by 35121-MR1-770
|
$11.13 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-MM8-811
Superseded by 35122-MR1-770
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, BLANK (TYPE2)
35122-MR1-770
|
$11.13 | ||
|
Unavailable |
|||
|
#13
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-402-811
Superseded by 35122-MR1-770
|
$11.13 | ||
|
Unavailable |
|||
|
#14
RESISTOR (5W)
35400-GR1-000
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
HORN
38110-GR1-670
|
$25.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (5X22)
90112-GK8-000
Superseded by 90112-GK8-010
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (5X22)
90112-GK8-010
|
$3.04 | ||
|
Unavailable |
|||
|
#17
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (5MM)
94050-05000
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE A (10A)
98200-11000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
