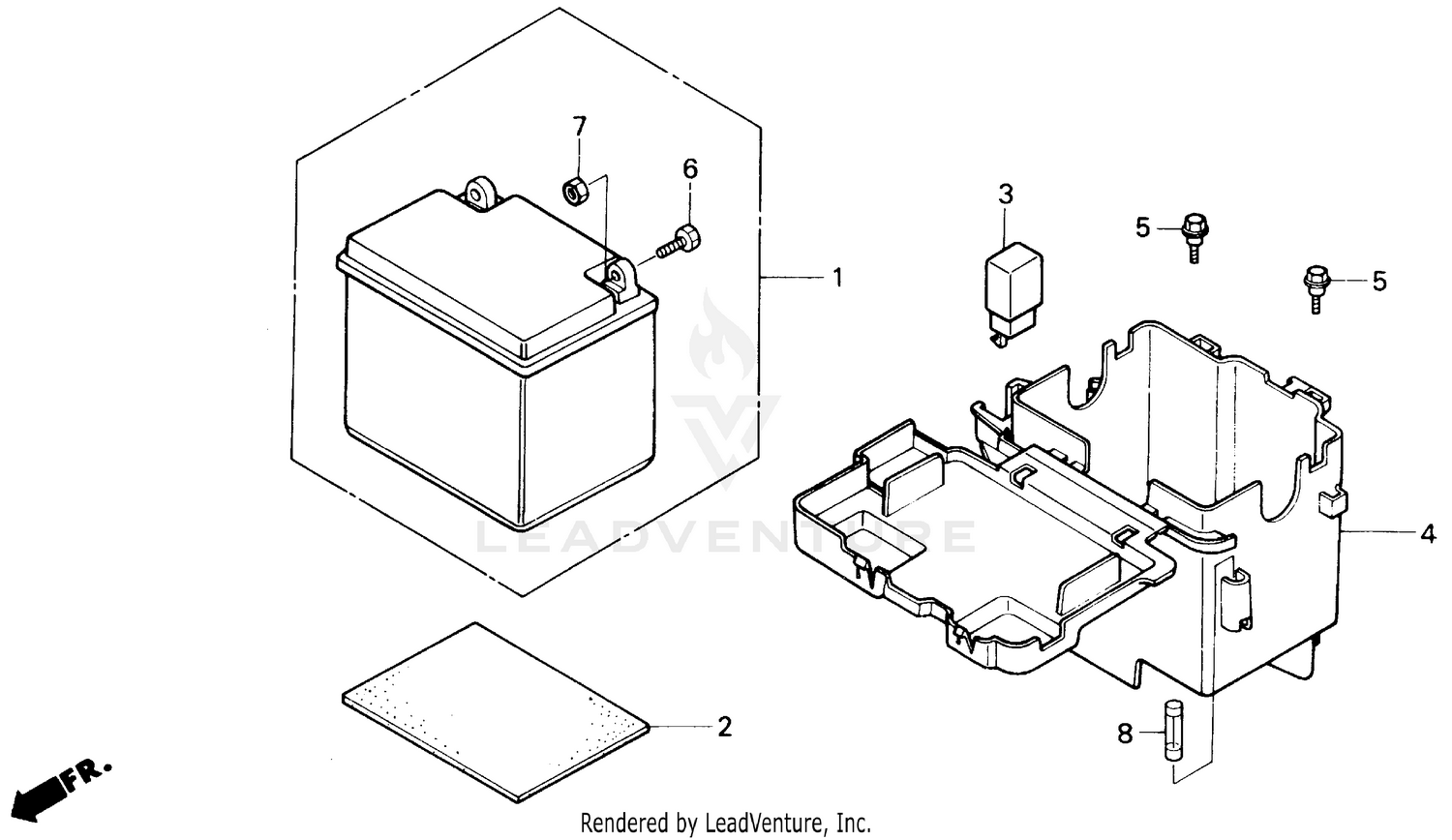

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-672
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Available to order. Add to View Price |
|||
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-673
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-674
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-675
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-676
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-677
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-678
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Unavailable |
|||
|
#1
BATTERY (YTX4L-BS) (YUASA) (MSDS)
31500-GN2-679
Superseded by 31500-GFC-782AH
|
$83.27 | ||
|
Unavailable |
|||
|
#2
RUBBER, BATTERY
31508-GR1-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
RELAY, STARTER
38501-GN2-004
Superseded by 38501-GN2-014
|
$56.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
RELAY, STARTER
38501-GN2-014
|
$56.69 | ||
|
Unavailable |
|||
|
#3
RELAY, STARTER
38501-GAM-007
|
$52.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
RELAY, STARTER (MATSUSHITA)
38501-GN2-003
Superseded by 38501-GAM-007
|
$52.95 | ||
|
Unavailable |
|||
|
#4
BOX, BATTERY
50325-GR1-030
|
$28.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (6MM)
90111-147-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BATTERY TERMINAL
90122-GM0-007
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BATTERY TERMINAL
90122-GM4-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, BATTERY TERMINAL (FURUKAWA)
90306-GN2-004
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE A (10A)
98200-11000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
