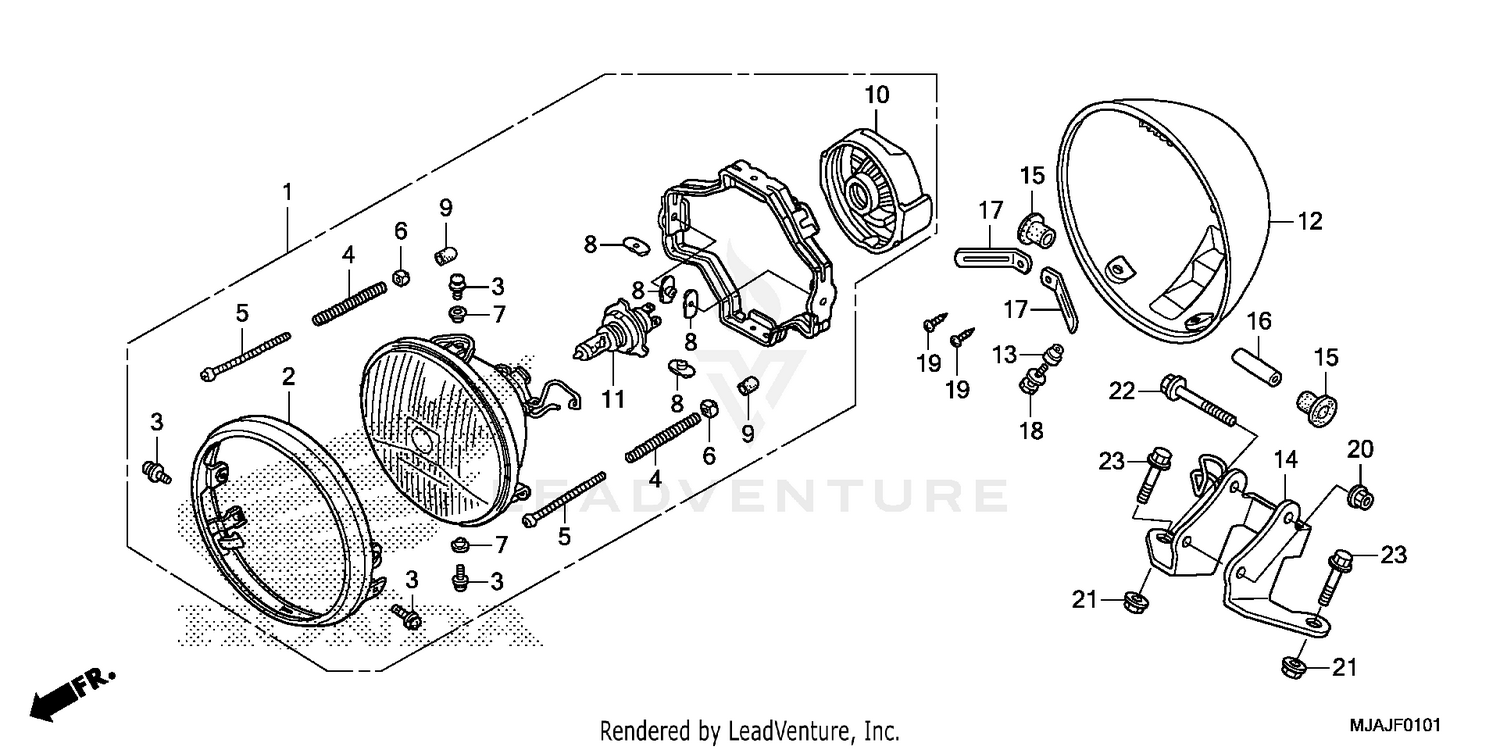

Headlight (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (12V 60/55W) (STANLEY)
33100-MFE-306
Superseded by 33100-MFE-A41
|
$264.33 | ||
|
Available to order. Add to View Price |
|||
|
#1
HEADLIGHT ASSY. (12V 60/55W) (STANLEY)
33100-MFE-A41
|
$264.33 | ||
|
Unavailable |
|||
|
#2
RIM, HEADLIGHT
33101-MFE-A41
|
$44.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW-WASHER
33104-MAH-671
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)
33108-MM2-003
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BEAM ADJUSTING
33114-GE1-670
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)
33118-438-841
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
33127-MAA-A31
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, UNIT HOLDER
33128-MAA-A31
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SCREW
33136-426-830
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, RUBBER
33180-MR7-003
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-602
|
$43.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, HEADLIGHT
61301-MFE-A41
|
$110.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, HEADLIGHT SETTING
61304-KR3-980
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, HEADLIGHT
61311-MFE-A40
|
$25.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, HEADLIGHT MOUNTING
61315-MK7-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, HEADLIGHT STAY
61316-MK7-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, WIRE HARNESS (4X100)
91416-PA1-000
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-WASHER (5X20)
93402-05020-00
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING (4X10) (PO)
93913-24110
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (6MM)
94050-06070
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X50)
95701-06050-07
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X45)
95801-08045-07
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
