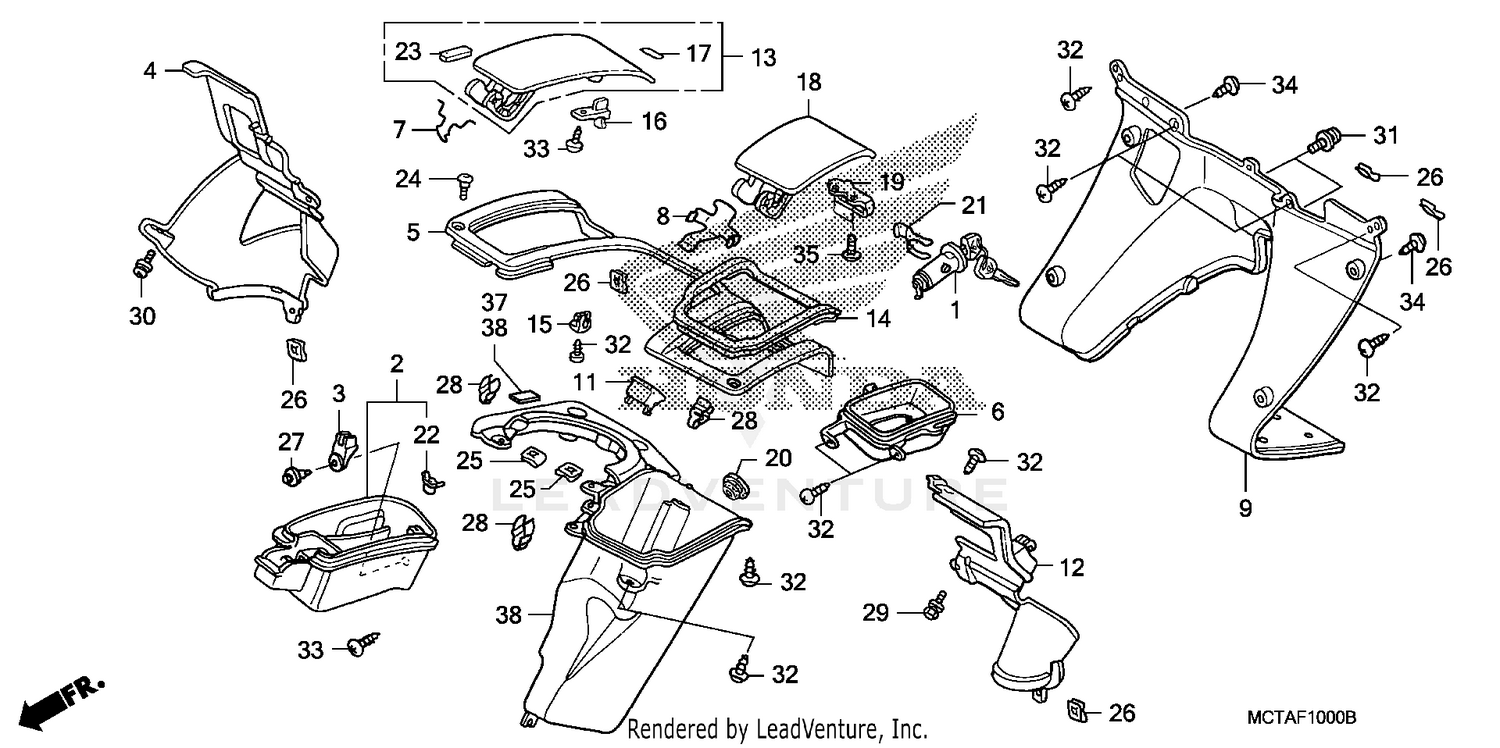

Inner Box ('06) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK ASSY., LID
64228-MCT-000
|
$32.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
POCKET ASSY., R. (INNER)
64250-MCT-020
|
$36.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, POCKET LID STRIKER
64253-MCT-640
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, R. FR. AIR DUCT
64306-MCT-000
|
$18.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER (INNER) *PB358M* (DELTA BLUE METALLIC)
64311-MCT-680ZG
|
$114.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, BRAKE LEVER
64314-MCT-000
|
$16.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, R. POCKET LID
64318-MCT-831
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, L. POCKET LID
64319-MCT-831
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, FLOOR (UPPER)
64331-MCT-000
|
$116.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, SWITCH
64367-MCT-000
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, L. FR. AIR DUCT
64406-MCT-020
|
$22.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
LID SET, R. POCKET *PB358M* (DELTA BLUE METALLIC)
64460-MCT-692ZL
|
$14.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, POCKET LID
64463-MCT-000
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, DAMPER
64464-MCT-000
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
STRIKER, POCKET LID
64466-MCT-640
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
MARK, PUSH (TYPE1)
64467-MCT-690ZA
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
LID, L. POCKET *PB358M* (DELTA BLUE METALLIC)
64471-MCT-692ZL
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOOK, LOCK
64472-MCT-000
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET B, SIDE PANEL
70529-657-670
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, LOCK KEY SETTING
75581-MCT-000
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
LATCH, TICKET BOX
77235-KPB-000
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER, FR. PANEL COWL (B)
83507-KV3-830
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, SPECIAL (5X17)
90109-KW3-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPRING (4MM)
90302-KPB-000
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SPRING (4MM)
90302-SA4-003
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, AIR IN. DUCT PUSH
90601-PV3-003
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP, SNAP FITTING
90666-S84-A01
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT-WASHER (6X16)
93404-06016-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (5X12)
93894-05012-00
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-WASHER (6X14)
93894-06014-07
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X12)
93903-34310
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, TAPPING (4X12)
93903-34380
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, TAPPING (4X16)
93903-34480
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, TAPPING (5X16) (PO)
93913-15410
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#37
MAT F, SHOCK ABSORBER
64314-MCT-770
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#38
PANEL, RR.
64365-MCT-770
|
$68.72 | ||
|
Available to order. Add to View Price |
|||
