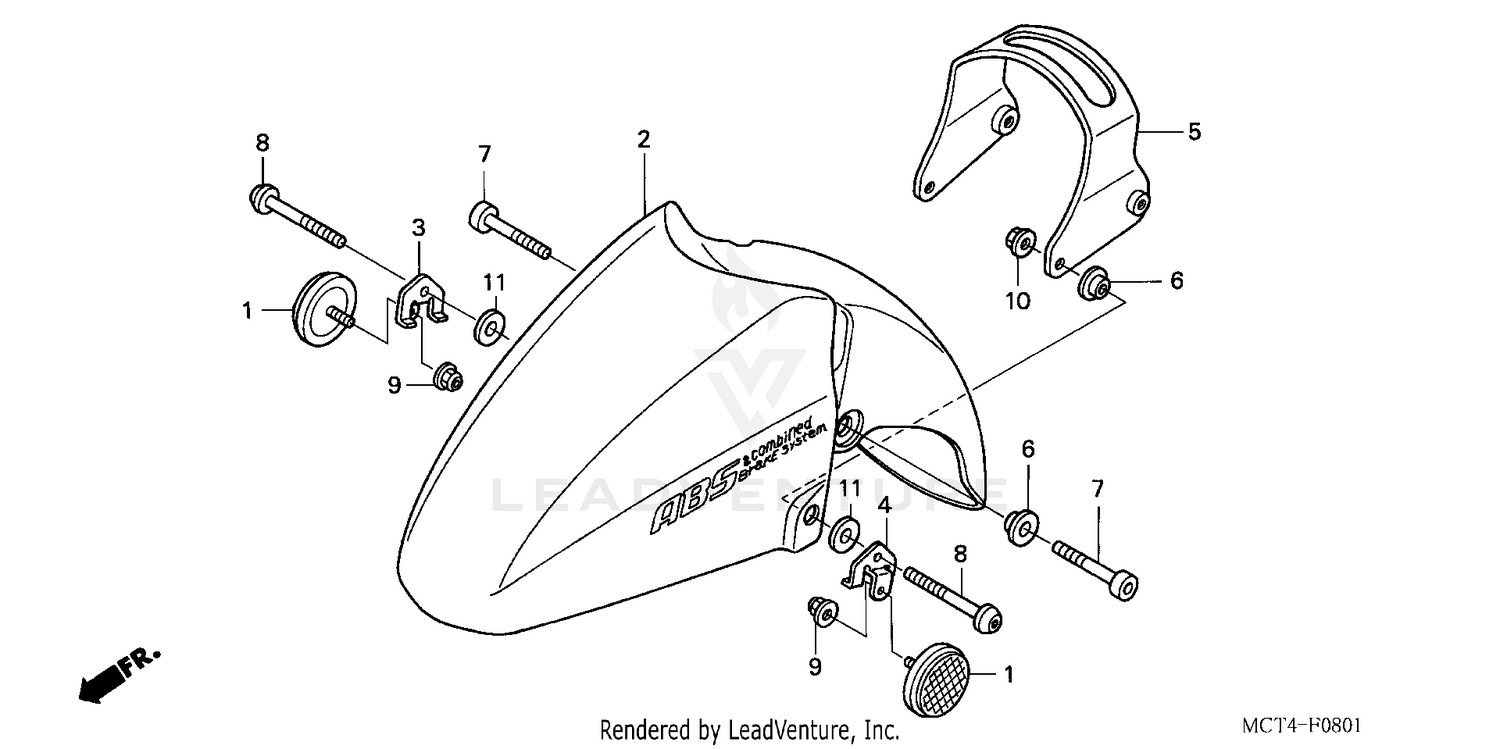

Front Fender (fsc600a'03-'05) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FR. REFLEX (AMBER)
33742-HB9-641
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, FR. *NH411M* (FORCE SILVER METALLIC)
61103-MCT-940ZD
|
$208.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, FR. *R150CU* (CANDY RASPBERRY RED-U)
61103-MCT-940ZG
|
$157.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, R. FR. REFLECTOR
61101-MCT-650
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, L. FR. REFLECTOR
61102-MCT-650
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, FR. FENDER
61104-MCT-940
|
$83.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, RR. GARNISH
80151-KGB-610
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SOCKET (8X40)
90106-MCT-940
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, SPECIAL (8X54)
90107-MCT-941
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U (6MM)
90301-MG3-000
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE (8MM)
94050-08070
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (8MM)
94101-08700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
